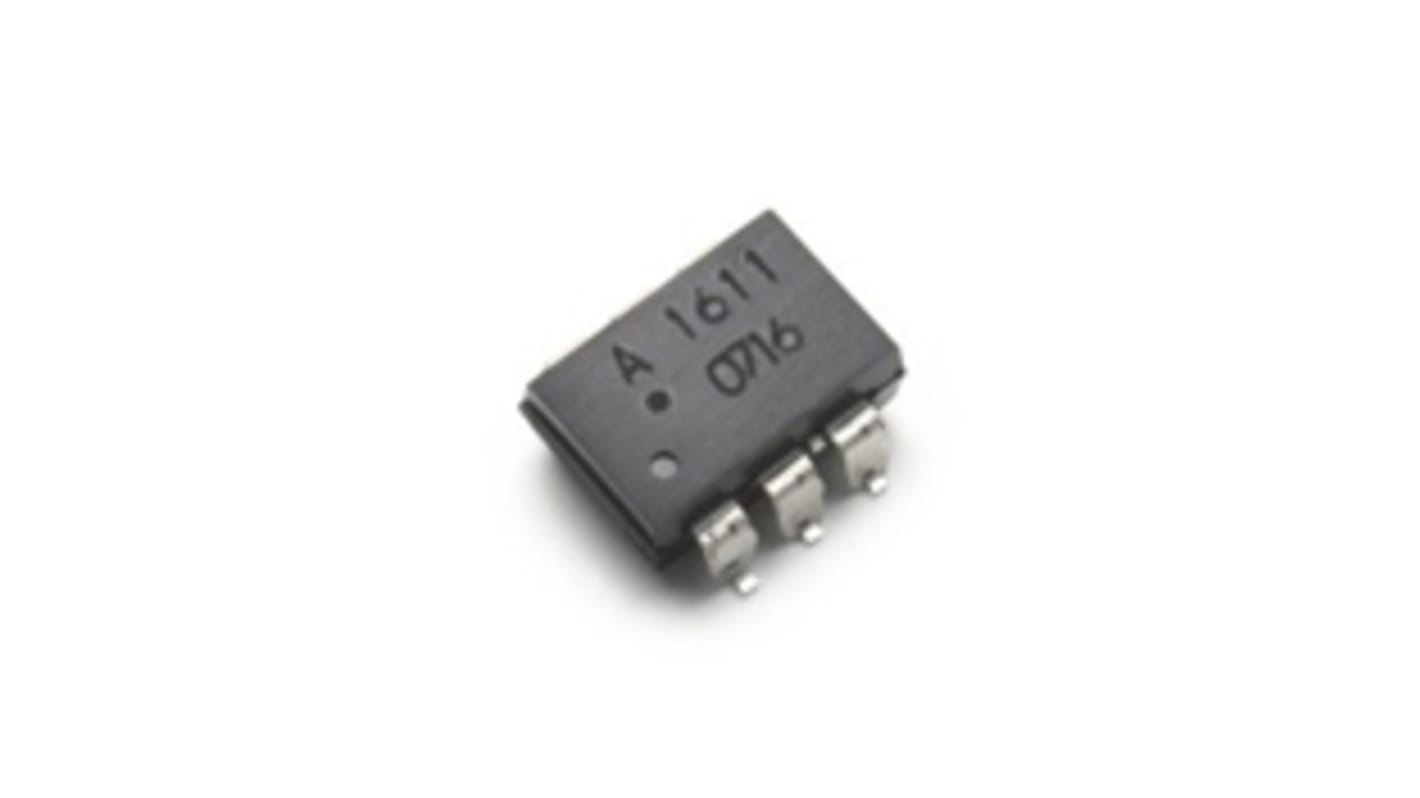

Broadcom ASSR-1611 Series Solid State Relay, 2.5 A Load, Surface Mount, 60 V Load, 1.7 V Control

RS Stock No.:: 174-3633
Mfr. Part No.:: ASSR-1611-501E
Brand:: Broadcom

Broadcom ASSR-1611 Series Solid State Relay, 2.5 A Load, Surface Mount, 60 V Load, 1.7 V Control

This product is currently unavailable to backorder.

Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.

Price Each (On a Reel of 1000)

£3.55

(exc. VAT)

£4.26

(inc. VAT)

Units	Per unit	Per Reel*
1000 +	£3.55	£3,550.00

*price indicative

RS Stock No.:: 174-3633
Mfr. Part No.:: ASSR-1611-501E
Brand:: Broadcom

Datasheet

Attribute	Value
Maximum Load Current	2.5 A
Mounting Type	Surface Mount
Maximum Load Voltage	60 V
Minimum Load Voltage	-60 V
Maximum Control Voltage	1.7 V
Minimum Control Voltage	1.1 V
Switching Type	AC
Control Voltage Range	1.1 → 1.7 V
Number of Poles	1
Terminal Type	PCB Pin
Contact Configuration	SPDT
Output Device	MOSFET
Package Style	DIP
Relay Type	Solid State Relay
Load Voltage Range	-60 → +60V
Maximum Turn On Time	10ms
Series	ASSR-1611
Dimensions	9.65 x 6.35 x 4.19mm
Depth	6.4mm
Off State Leakage Current	5 μA
Maximum Operating Temperature	+85°C
Capacitance	0.8pF
Special Features	CMOS Compatibility, CSA Component Acceptance, Single-Pole-Single-Throw (SPST) Relay
Operating Temperature Range	-40 → +85°C
Minimum Operating Temperature	-40°C
Length	9.7mm
Height	4.2mm

Broadcom ASSR-1611 Series Solid State Relay, 2.5 A Load, Surface Mount, 60 V Load, 1.7 V Control
