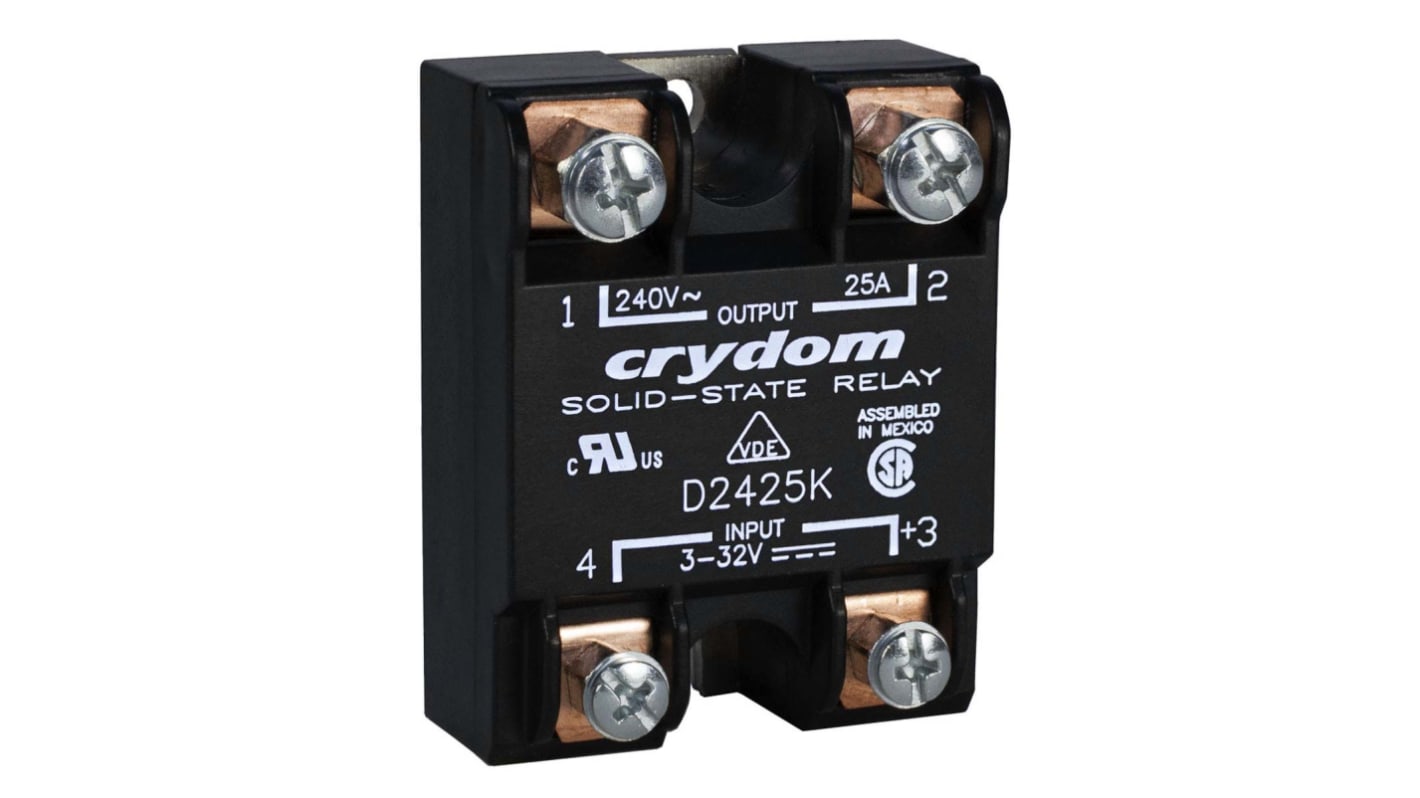

Sensata / Crydom 1 Series Solid State Relay, 25 A Load, Panel Mount, 530 V rms Load, 32 V dc Control
- RS Stock No.:
- 145-0577
- Mfr. Part No.:
- D4825K
- Brand:
- Sensata / Crydom
29 In stock - FREE next working day delivery available
Added
Price Each
£60.42
(exc. VAT)
£72.50
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £60.42 |
| 5 - 9 | £57.40 |
| 10 - 24 | £54.38 |
| 25 - 49 | £51.36 |
| 50 + | £48.34 |
- RS Stock No.:
- 145-0577
- Mfr. Part No.:
- D4825K
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Crydom Series 1 Solid State Relays
Crydom Series 1 range of solid state relays offer a wide range of ratings from 10 A to 125 A at 24 V ac to 280 V ac. Crydom has incorporated many features within this particular range of panel mount solid state relays including AC or DC control and SCR output for heavy industrial loads. Both zero-crossing (resistive loads) and random-fire (inductive loads) output versions are available.
Features and Benefits
600 V blocking capacity
SCR Output for heavy industrial loads
Internal snubber circuitry
Filter, cover and thermal pads available
Terminal Type Screw; Saddle Clamp
Input-output Capacitance: 8 pF
Isolation Voltage 4 kVrms
Dimensions: H22.9 x D58.4 x W45.7mm
Note
Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet
Caution
Derating will limit the maximum load current at temperatures above 25 °C
Approvals
UL recognised component for Canada and US, VDE
Crydom Solid State Relay and Accessories
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 25 A |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 530 V rms |
| Minimum Load Voltage | 48Vrms |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Cross |
| Control Voltage Range | 4 → 32 V dc |
| Minimum Load Current | 150mA rms |
| Number of Poles | 1 |
| Terminal Type | Screw |
| Output Device | SCR |
| Relay Type | Solid State Relay |
| Load Voltage Range | 48 → 530Vrms |
| Series | 1 |
| Maximum Turn On Time | 1/2 cycle |
| Dimensions | 44.5 x 57.3 x 26.4mm |
| Special Features | AC or DC Control, Direct Bond Copper Substrate, Direct Power Lead Frame, Epoxy-Free Design, Improved SEMS Screw & Washer, Redesigned Housing with Anti-Rotation Barriers |
| Standards Met | CE, CSA LR 81689, cULus Recognised E116950, EN 60950, EN 60950-1, IEC 62314, UL, VDE Approved 10139 UG |
| Off State Leakage Current | 1mArms |
| Operating Temperature Range | -40 → +80°C |
| Minimum Operating Temperature | -40°C |
| Height | 26.4mm |
| Capacitance | 8pF |
| Depth | 57.3mm |
| Length | 44.5mm |
| Maximum Operating Temperature | +80°C |
- RS Stock No.:
- 145-0577
- Mfr. Part No.:
- D4825K
- Brand:
- Sensata / Crydom
