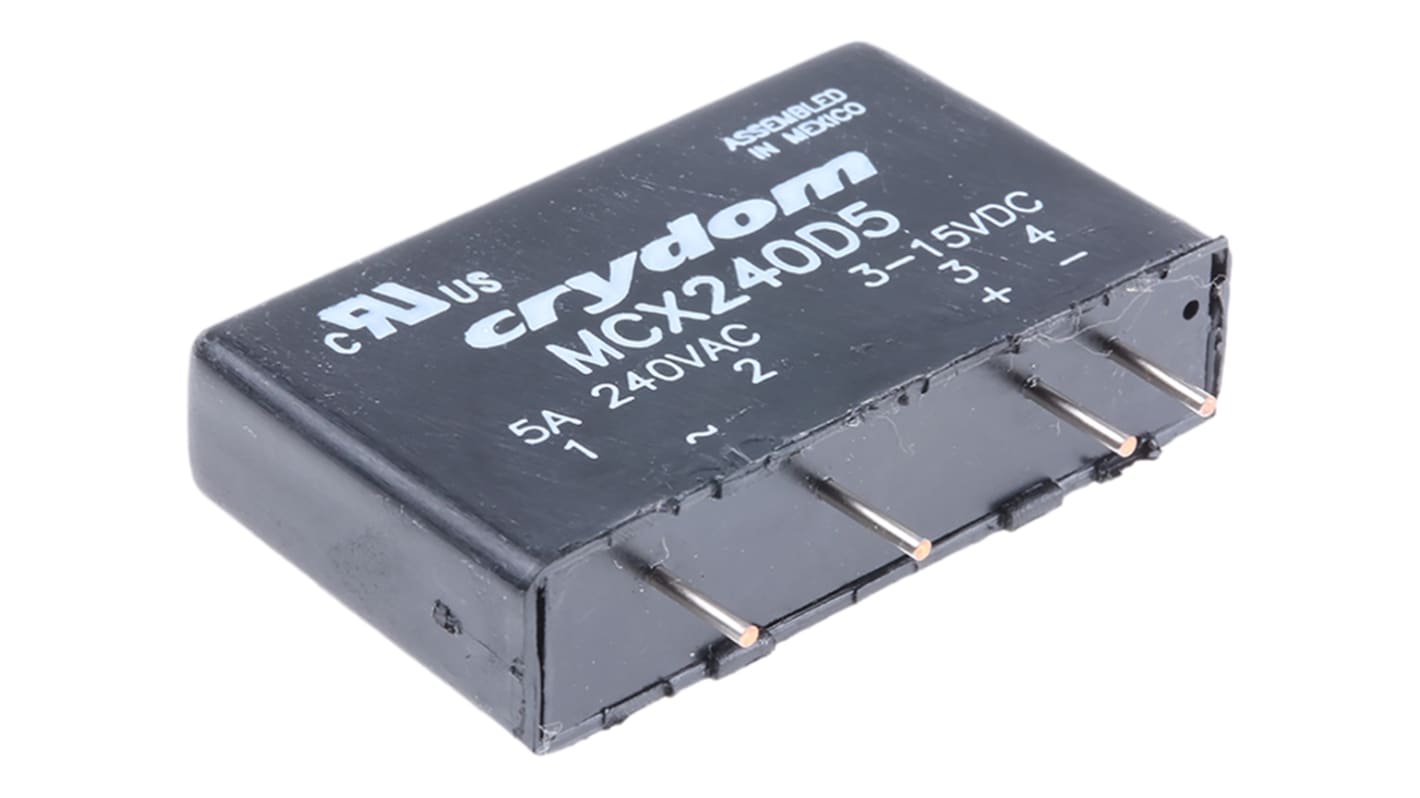

Sensata | Crydom Solid-State Relay, PCB Mounting, 3 to 15V DC Control Voltage Range - MCX Series - MCX240D5
When it comes to current control, pull out all the stops with this solid-state relay from Sensata | Crydom. It switches power off and on for the convenient automated control of your industrial applications. A broad operating voltage range between 12 and 280V AC means it's just the thing for a wide variety of low-power systems. This versatile tool is suitable for use in lighting, heating and motion-based equipment.
Features & Benefits
Maximum turn-on and turn-off time of half a cycle for rapid-fire switching
Performs reliably in extreme environments, thanks to a wide operating temperature range between -40°C and +80°C
Performs reliably in extreme environments, thanks to a wide operating temperature range between -40°C and +80°C
How large is this SSR?
This small but mighty SSR has compact dimensions of 43.1 (L) x 10.2 (W) x 26.04mm (H), so it's a sure fit for a densely packed PCB.
How do SSRs compare to electromechanical relays?
The main difference is that SSRs dont have any moving parts. This gives them a longer operational life, as they're subject to less wear and tear than electromechanical relays.
Approvals
UL
Specifications
Attribute | Value |
---|---|
Maximum Load Current | 5 A |
Mounting Type | DIN Rail |
Maximum Load Voltage | 280 V |
Minimum Load Voltage | 12 V |
Maximum Control Voltage | 15 V |
Minimum Control Voltage | 3 V dc |
Switching Type | Zero Crossing |
Control Voltage Range | 3 → 15 V dc |
Minimum Load Current | 0.06 A |
Terminal Type | Screw |
Output Device | SCR |
Relay Type | PCB Relay |
Package Style | SIP |
Maximum Turn On Time | 1/2 Cycle |
Load Voltage Range | 12 → 280V ac |
Series | MCX |
Dimensions | 43.1 x 10.2 x 26.04mm |
Height | 26.04mm |
Special Features | Random-fire |
Capacitance | 10pF |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +80°C |
Length | 43.1mm |
Off State Leakage Current | 0.1 mArms |
Depth | 10.2mm |
Maximum Operating Temperature | +80°C |
