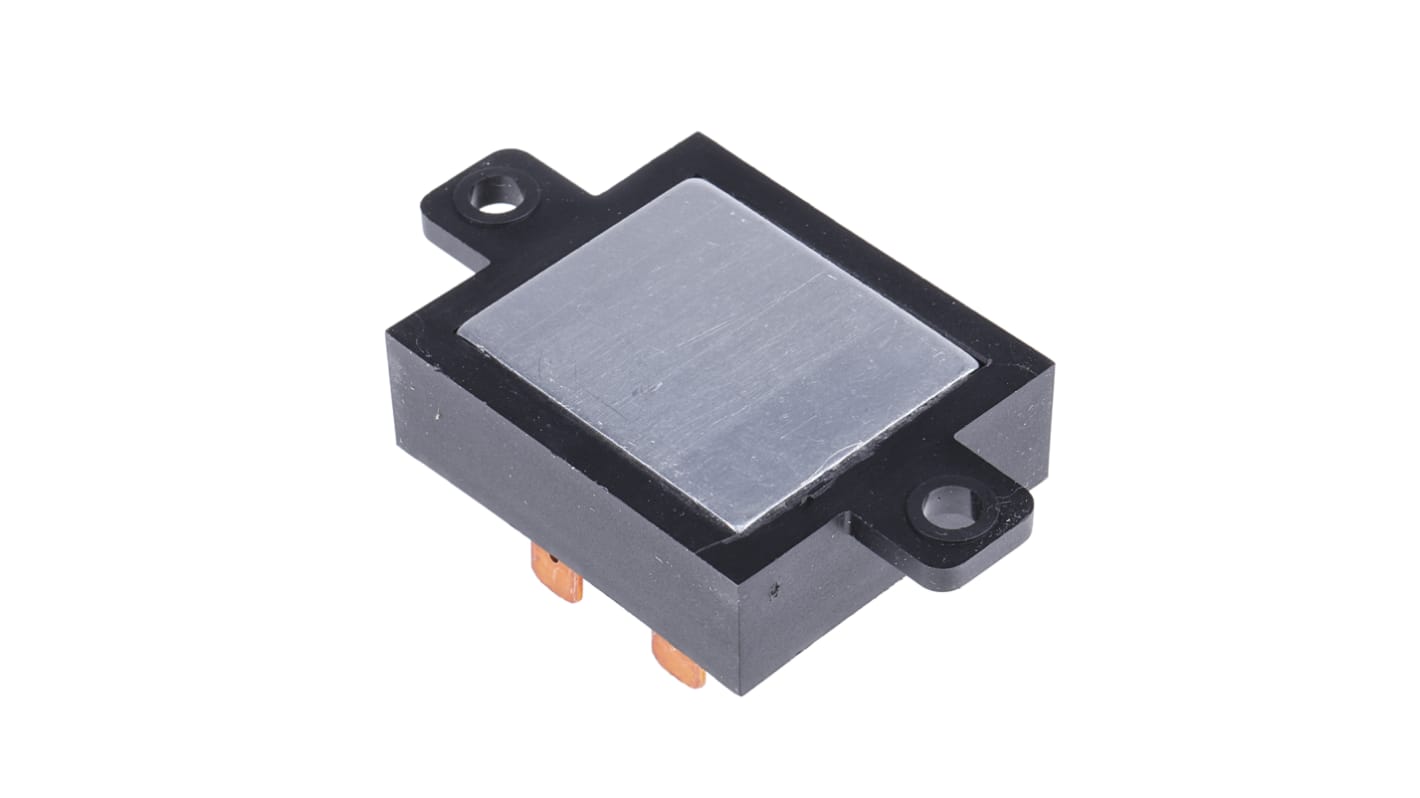

Sensata Crydom EZ Series Solid State Relay, 5 A rms Load, Panel Mount, 280 V Load, 15 V dc Control
- RS Stock No.:
- 346-384
- Mfr. Part No.:
- EZ240D5
- Brand:
- Sensata / Crydom
98 In stock - FREE next working day delivery available
24 available from Europe for delivery within 2 working day(s).
Price Each
£24.18
(exc. VAT)
£29.02
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £24.18 |
5 - 9 | £22.97 |
10 - 24 | £21.77 |
25 - 49 | £20.56 |
50 + | £19.35 |
- RS Stock No.:
- 346-384
- Mfr. Part No.:
- EZ240D5
- Brand:
- Sensata / Crydom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
![](https://media.rs-online.com/t_line/L346384-01.gif)
Sensata | Crydom Solid-State Relay, SCR Output Type, 24 to 280V AC Operating Voltage Range - EZ Series - EZ240D5
When the job calls for stable isolated switching from a control circuit to your load circuit, choose this solid-state relay from Sensata | Crydom. Its SCR output makes it a practical pick for secure switchovers in high-power applications such as conveyor systems and compressors. The unit's dielectric strength of 4000Vrms means it's safely insulated, keeping you and your equipment safe from electrical hazards. Thanks to this relay's zero-cross switching function, it switches on with little power loss or electrical noise for operation without a hitch.
Features & Benefits
• Thermally conductive epoxy encapsulation for effective heat dissipation
• 1/4-inch Faston terminals let you make robust electrical connections in a jiffy
• Compact size of 13.9 (H) x 43.9 (L) x 38.1mm (D) to maximise space on your PCB
• Wide operating voltage range of 24 to 280V AC for compatibility with low-power systems
• 1/4-inch Faston terminals let you make robust electrical connections in a jiffy
• Compact size of 13.9 (H) x 43.9 (L) x 38.1mm (D) to maximise space on your PCB
• Wide operating voltage range of 24 to 280V AC for compatibility with low-power systems
What temperatures can I use this SSR in?
This relay has a wide operating temperature range of -40°C to +80°C, so it's a safe bet for use in harsh environments.
Approvals
UL; CSA; VDE
Crydom Solid State Relay and Accessories
Specifications
Attribute | Value |
---|---|
Maximum Load Current | 5 A rms |
Mounting Type | Panel Mount |
Maximum Load Voltage | 280 V |
Maximum Control Voltage | 15 V dc |
Minimum Control Voltage | 3 V dc |
Switching Type | Zero Cross |
Control Voltage Range | 4 → 15 V dc |
Minimum Load Current | 150 mA |
Output Device | SCR |
Load Voltage Range | 24 → 280V ac |
Series | EZ |
Dimensions | 43.9 x 38.1 x 13.9mm |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -40°C |
Depth | 38.1mm |
Length | 43.9mm |
Height | 13.9mm |
Operating Temperature Range | -40 → +80°C |
