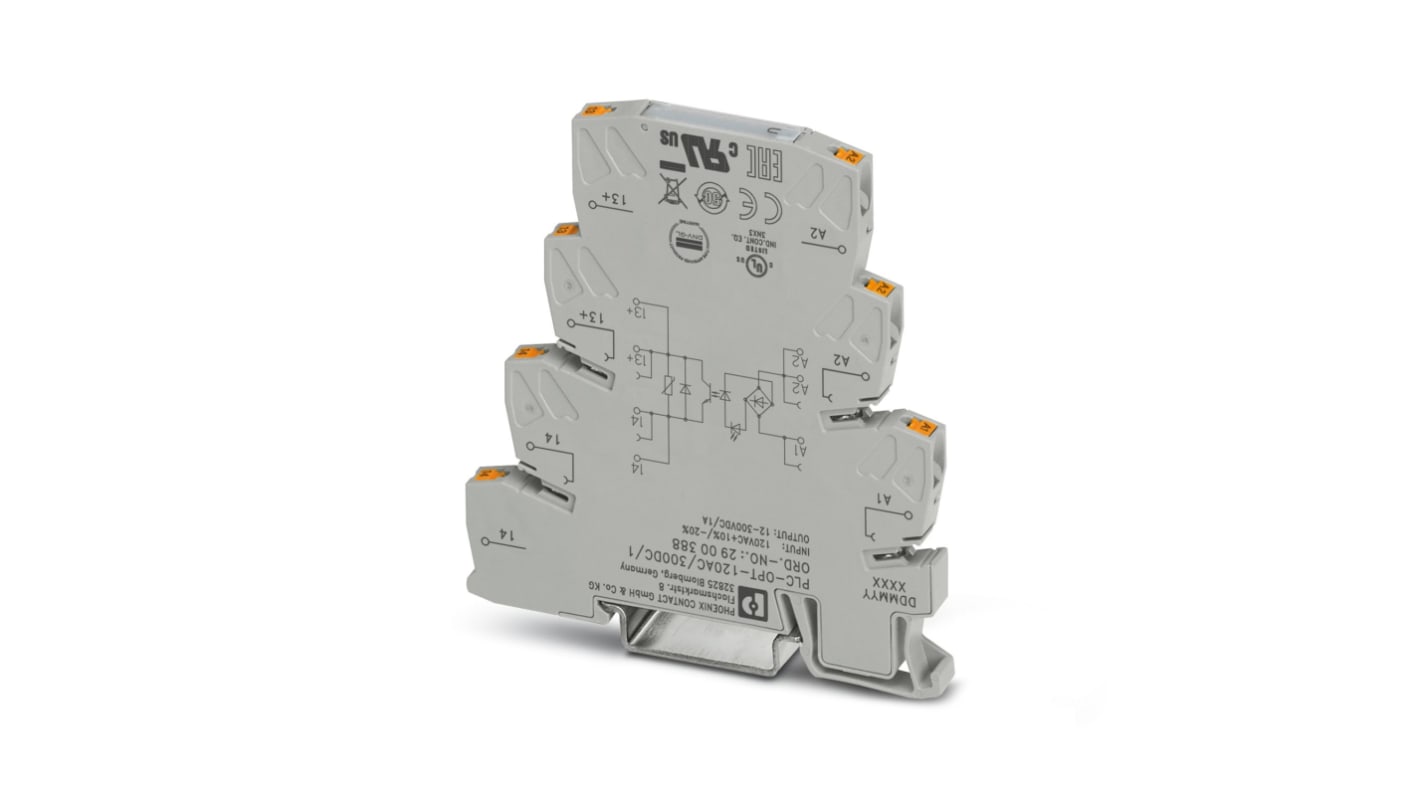

Phoenix Contact PLC Series Solid State Relay, 1 A Load, DIN Rail Mount, 300 V Load, 132V ac Control
- RS Stock No.:
- 170-518
- Mfr. Part No.:
- 2900388
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
£51.639
(exc. VAT)
£61.967
(inc. VAT)
- RS Stock No.:
- 170-518
- Mfr. Part No.:
- 2900388
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Maximum Load Current | 1A | |
| Product Type | Solid State Relay | |
| Mount Type | DIN Rail | |
| Maximum Load Voltage | 300V | |
| Minimum Load Voltage | 12V | |
| Minimum Control Voltage | 96V ac | |
| Maximum Control Voltage | 132V ac | |
| Series | PLC | |
| Terminal Type | Push-in | |
| Contact Configuration | 1 NO | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Width | 6.2mm | |
| Height | 80mm | |
| Length | 95mm | |
| Standards/Approvals | CE-compliant, Corrosive gas test, cUL Listed, cUL Recognised, UL Recognised, cULus Listed, cULus Recognised, EAC, EMC Directive, IEC 60947-5-1, Low Voltage Directive, Shipbuilding approval, UKCA-compliant, UL Listed | |
| Output Type | DC | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Maximum Load Current 1A | ||
Product Type Solid State Relay | ||
Mount Type DIN Rail | ||
Maximum Load Voltage 300V | ||
Minimum Load Voltage 12V | ||
Minimum Control Voltage 96V ac | ||
Maximum Control Voltage 132V ac | ||
Series PLC | ||
Terminal Type Push-in | ||
Contact Configuration 1 NO | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Width 6.2mm | ||
Height 80mm | ||
Length 95mm | ||
Standards/Approvals CE-compliant, Corrosive gas test, cUL Listed, cUL Recognised, UL Recognised, cULus Listed, cULus Recognised, EAC, EMC Directive, IEC 60947-5-1, Low Voltage Directive, Shipbuilding approval, UKCA-compliant, UL Listed | ||
Output Type DC | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Solid-state relay module is a high-quality and reliable solution for various industrial applications. This integrated solid-state relay offers wear-free switching with no contact bounce, making it durable and resistant to vibrations and shocks. With its protective circuit in both the input and output, it ensures safe and reliable operation. The module has a wide input voltage range and provides DC voltage outputs up to 300V DC/1A. Its compact design allows for easy mounting on NS 35/7.5 DIN rails. With its status indicator, it provides convenient visual feedback. This solid-state relay module is made to order and comes with a minimum order quantity of 1 piece.
Resistant to vibrations and shocks
Protective circuit for input and output
Wide input voltage range for flexibility
DC voltage outputs up to 300 V DC/1 A
Option to bridge adjacent modules
Compact design for easy DIN rail mounting
