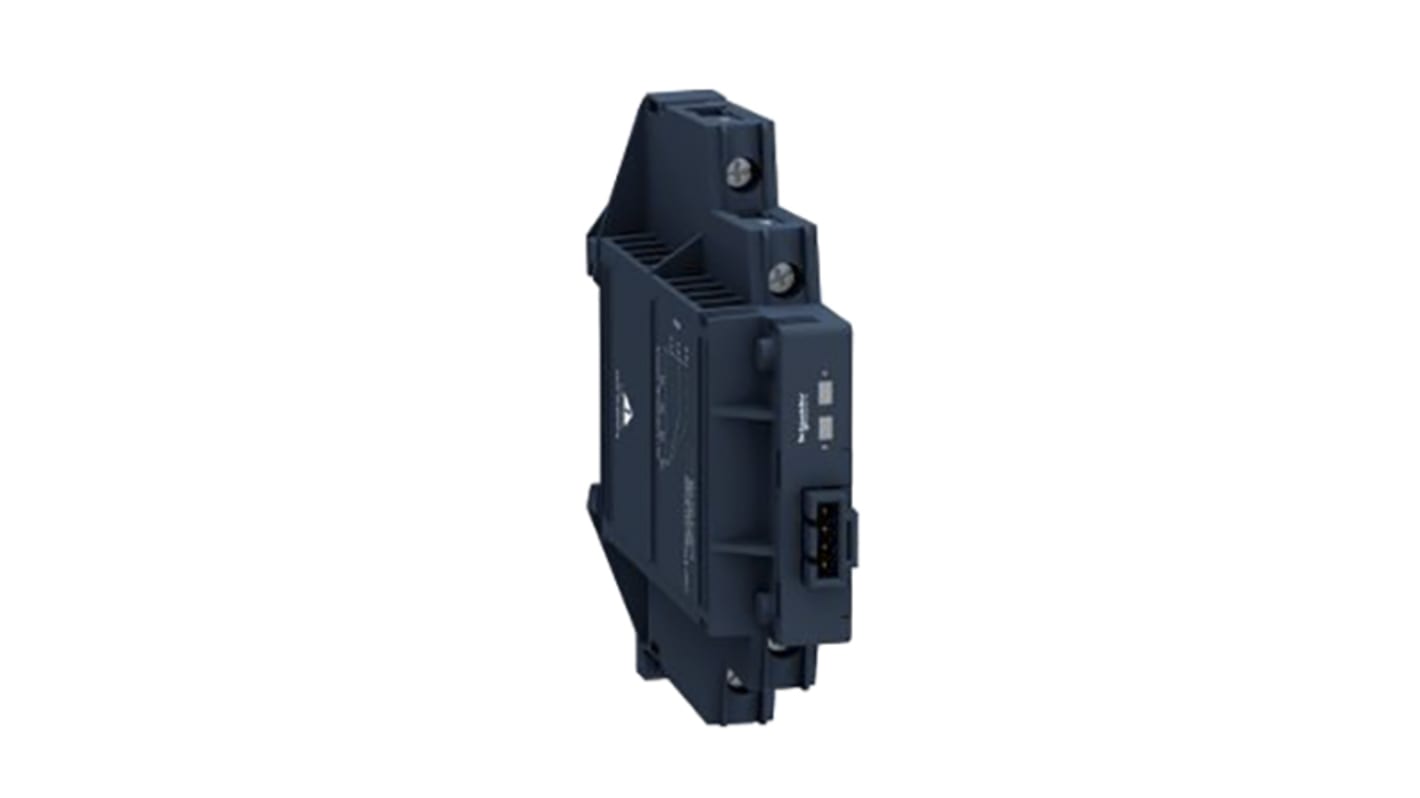

Schneider Electric Harmony Relay Series Solid State Interface Relay, 32 V dc Control, 6 A Load, DIN Rail Mount
- RS Stock No.:
- 922-1984
- Mfr. Part No.:
- SSM2A16BD
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£61.31
(exc. VAT)
£73.57
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 13 November 2025
Units | Per unit |
|---|---|
| 1 + | £61.31 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 922-1984
- Mfr. Part No.:
- SSM2A16BD
- Brand:
- Schneider Electric
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Control Voltage | 32 V dc | |
| Maximum Load Current | 6 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 600 V ac | |
| Minimum Control Voltage | 4 V dc | |
| Control Voltage Range | 4 → 32 V dc | |
| Switching Type | AC | |
| Contact Configuration | SPST | |
| Load Voltage Range | 24 → 280V ac | |
| Minimum Load Voltage | 48 V ac | |
| Terminal Type | Screw | |
| Number of Poles | 1 | |
| Better World Product | Yes | |
| Length | 18.29mm | |
| Series | Harmony Relay | |
| Height | 87.6mm | |
| Depth | 84.38mm | |
| Output Device | SCR | |
| Better World Verification | Green Premium | |
| Minimum Load Current | 0.00015 A | |
| Capacitance | 10pF | |
| Dimensions | 18.29 x 84.38 x 87.6mm | |
| Off State Leakage Current | 0.2 mA | |
| Standards Met | CE, CSA, UL | |
| Special Features | Integrated Heat Sinks for Effective Thermal Management & Space Savings | |
| Maximum Turn On Time | 1/2 cycle | |
| Manufacturer Part No. | SSM2A16BD | |
| Operating Temperature Range | -30 → +80°C | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Control Voltage 32 V dc | ||
Maximum Load Current 6 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 600 V ac | ||
Minimum Control Voltage 4 V dc | ||
Control Voltage Range 4 → 32 V dc | ||
Switching Type AC | ||
Contact Configuration SPST | ||
Load Voltage Range 24 → 280V ac | ||
Minimum Load Voltage 48 V ac | ||
Terminal Type Screw | ||
Number of Poles 1 | ||
Better World Product Yes | ||
Length 18.29mm | ||
Series Harmony Relay | ||
Height 87.6mm | ||
Depth 84.38mm | ||
Output Device SCR | ||
Better World Verification Green Premium | ||
Minimum Load Current 0.00015 A | ||
Capacitance 10pF | ||
Dimensions 18.29 x 84.38 x 87.6mm | ||
Off State Leakage Current 0.2 mA | ||
Standards Met CE, CSA, UL | ||
Special Features Integrated Heat Sinks for Effective Thermal Management & Space Savings | ||
Maximum Turn On Time 1/2 cycle | ||
Manufacturer Part No. SSM2A16BD | ||
Operating Temperature Range -30 → +80°C | ||
