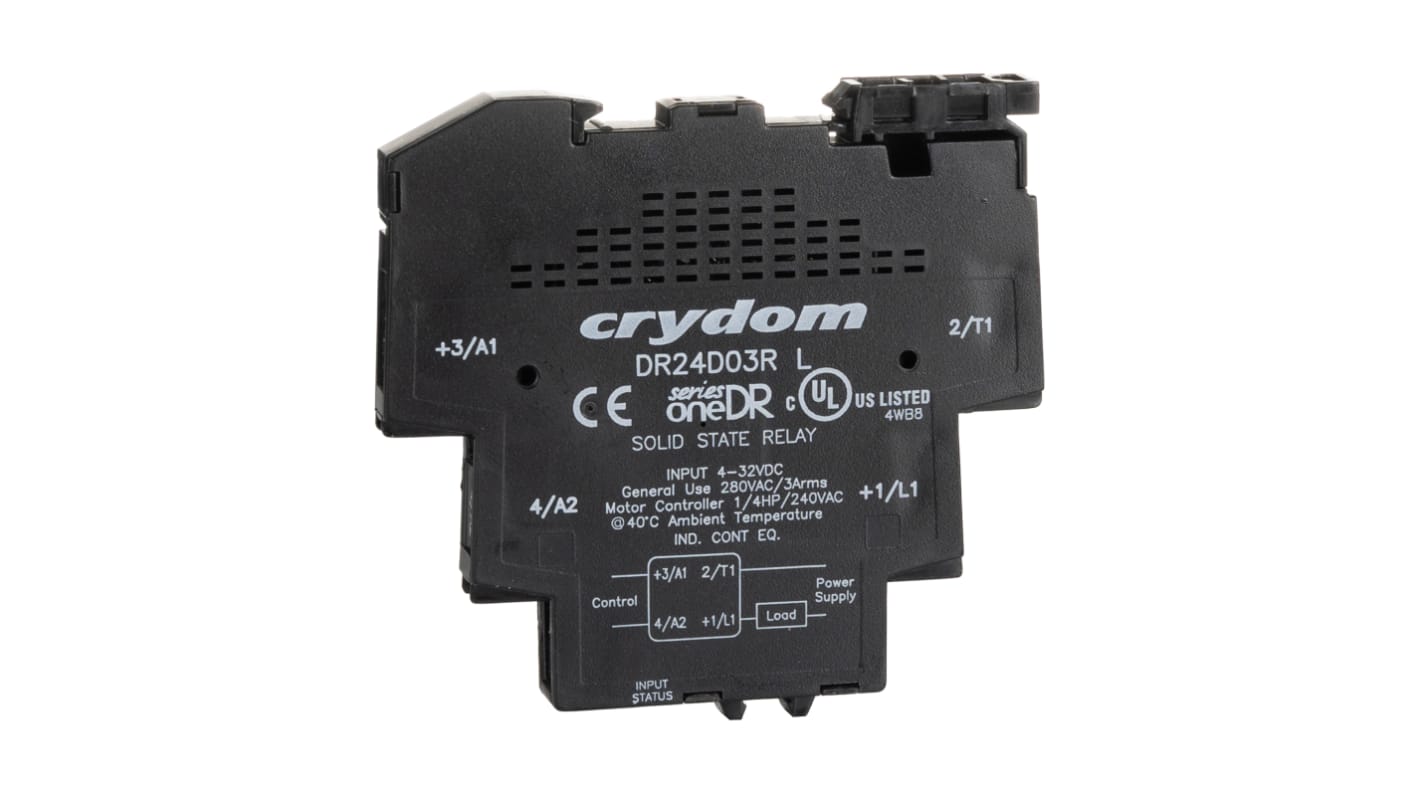

Sensata Crydom SeriesOne DR Series Solid State Interface Relay, 32 V dc Control, 3 A Load, DIN Rail Mount

RS Stock No.:: 776-1759
Mfr. Part No.:: DR24D03R
Brand:: Sensata / Crydom

Sensata Crydom SeriesOne DR Series Solid State Interface Relay, 32 V dc Control, 3 A Load, DIN Rail Mount

View this category

Subtotal (1 unit)*

£37.95

(exc. VAT)

£45.54

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

12 unit(s) shipping from 28 October 2025
Plus 40 unit(s) shipping from 11 November 2025
Plus 40 unit(s) shipping from 16 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£37.95

*price indicative

RS Stock No.:: 776-1759
Mfr. Part No.:: DR24D03R
Brand:: Sensata / Crydom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Control Voltage	32 V dc
	Maximum Load Current	3 A
	Mounting Type	DIN Rail
	Maximum Load Voltage	280 V ac
	Minimum Control Voltage	4 V dc
	Control Voltage Range	4 → 32 V dc
	Switching Type	Instantaneous
	Load Voltage Range	24 → 280V ac
	Minimum Load Voltage	24 V ac
	Terminal Type	Screw
	Number of Poles	1
	Length	87.6mm
	Height	83.7mm
	Series	SeriesOne DR
	Depth	11mm
	Minimum Load Current	150 mA
	Width	11mm
	Maximum Operating Temperature	+80°C
	Dimensions	87.6 x 11 x 83.7mm
	Minimum Operating Temperature	-30°C
	Capacitance	10pF
	Off State Leakage Current	0.1 mA
	Maximum Turn On Time	0.1 ms
	Special Features	AC or DC Control, Fits Standard 35mm DIN Rail, LED Input Status Indicator
	Manufacturer Part No.	DR24D03R
	Operating Temperature Range	-30 → +80°C

	Select all
	Brand Sensata / Crydom
	Maximum Control Voltage 32 V dc
	Maximum Load Current 3 A
	Mounting Type DIN Rail
	Maximum Load Voltage 280 V ac
	Minimum Control Voltage 4 V dc
	Control Voltage Range 4 → 32 V dc
	Switching Type Instantaneous
	Load Voltage Range 24 → 280V ac
	Minimum Load Voltage 24 V ac
	Terminal Type Screw
	Number of Poles 1
	Length 87.6mm
	Height 83.7mm
	Series SeriesOne DR
	Depth 11mm
	Minimum Load Current 150 mA
	Width 11mm
	Maximum Operating Temperature +80°C
	Dimensions 87.6 x 11 x 83.7mm
	Minimum Operating Temperature -30°C
	Capacitance 10pF
	Off State Leakage Current 0.1 mA
	Maximum Turn On Time 0.1 ms
	Special Features AC or DC Control, Fits Standard 35mm DIN Rail, LED Input Status Indicator
	Manufacturer Part No. DR24D03R
	Operating Temperature Range -30 → +80°C

COO (Country of Origin):: MX

Sensata | Crydom Solid-State Interface Relay, 3A Rated Load Current, 0.1mA Off-State Leakage - SeriesOne DR Series - DR24D03R

Want to take your circuit control to the next level? Choose this solid-state interface relay from Sensata | Crydom to switch the flow of electricity on and off. It features a fast turn-on and turn-off time of half a cycle for super-quick activation. Thanks to its compact dimensions of 87.6 (L) x 11 (W) x 83.7mm (H), it's a sure fit for areas with limited space. You'll find this component used in applications such as heating and cooling.

Features & Benefits

• Screw terminals for simple and secure wire connections
• Fits onto a standard 35mm DIN rail for speedy mounting
• Light weight of 50g to place minimal strain on your equipment
• LED status indicator for quick and clear diagnostics

Is this interface relay suitable for use in challenging environments?

Yes, it has a wide operating temperature range of -30°C to +80°C for use in demanding environments.

What's this device's rated load current?

It has a rated load current of 3A, so it's a good choice for use in low-power applications.

Crydom Solid State Relay and Accessories
