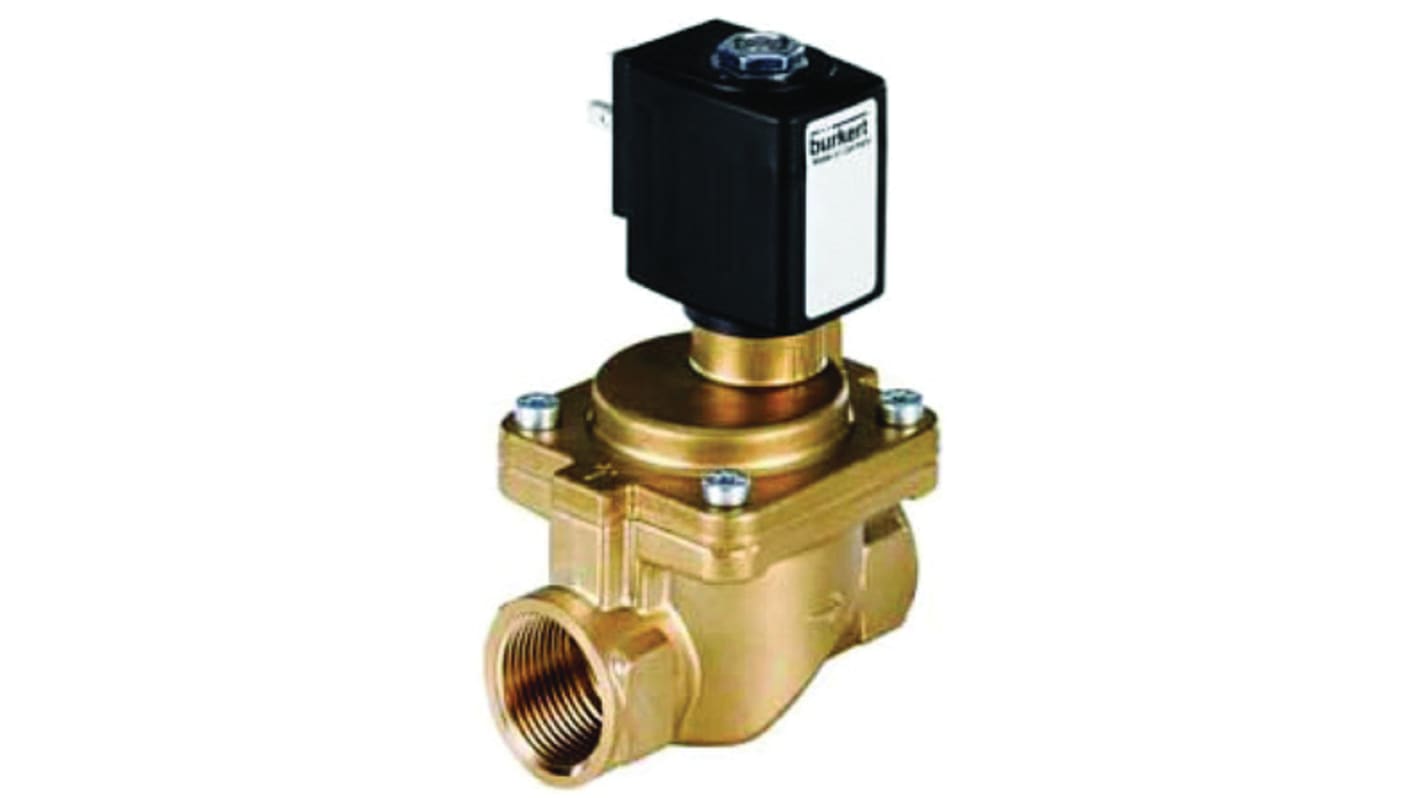

Burkert Solenoid Valve 221948, 2 port(s) , NO, 230 V ac, 1.5in

View all Solenoid Valves

Subtotal (1 unit)*

£310.07

(exc. VAT)

£372.08

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 2 unit(s) shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£310.07

*price indicative

RS Stock No.:
816-3241
Mfr. Part No.:
221948
Brand:
Burkert
Find similar products by selecting one or more attributes.
Select all

Brand

Burkert

Supply Voltage

230 V ac

Number of Ports

2

Connection Size

1.5in

Connection

1-1/2 in G

Operation

Pilot

Default Valve Position

NO

Suitable Applications

Compressed Air, Water

Type

2/2

Orifice Diameter

40mm

Body Material

Brass

Series

6281 EV Standard

Maximum Working Pressure

16 bar

Operating Temperature Range

-10 → +80 °C

Servo Assist

Yes

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

+80°C

Connection Gender

Female

Thread Standard or Connection Type

G

Flow Factor Kv

30m³/h

Maximum Closing Time

0.1 → 4s

COO (Country of Origin):
DE

DS6281-EV 2/2 Solenoid Valve - Brass Bodied


A 2 way servo assisted solenoid valve suitable for use with neutral fluids such as compressed air and water. N/C (Normally Closed) and N/O (Normally Open) versions available with NBR (Nitrile Rubber) or FKM (Fluroelastomer) seals. Usable for a variety of applications including heating and refrigeration, water treatment, compressed air and vacuum systems.

0.1 - 4 second response time (dependant upon pressure)
IP65 Rated (with cable protection)
Brass body
Quiet operation
Water hammer free design
Compact installation length
NPT / Rc connection ports
0.2 - 16 Bar pressure range


Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.
