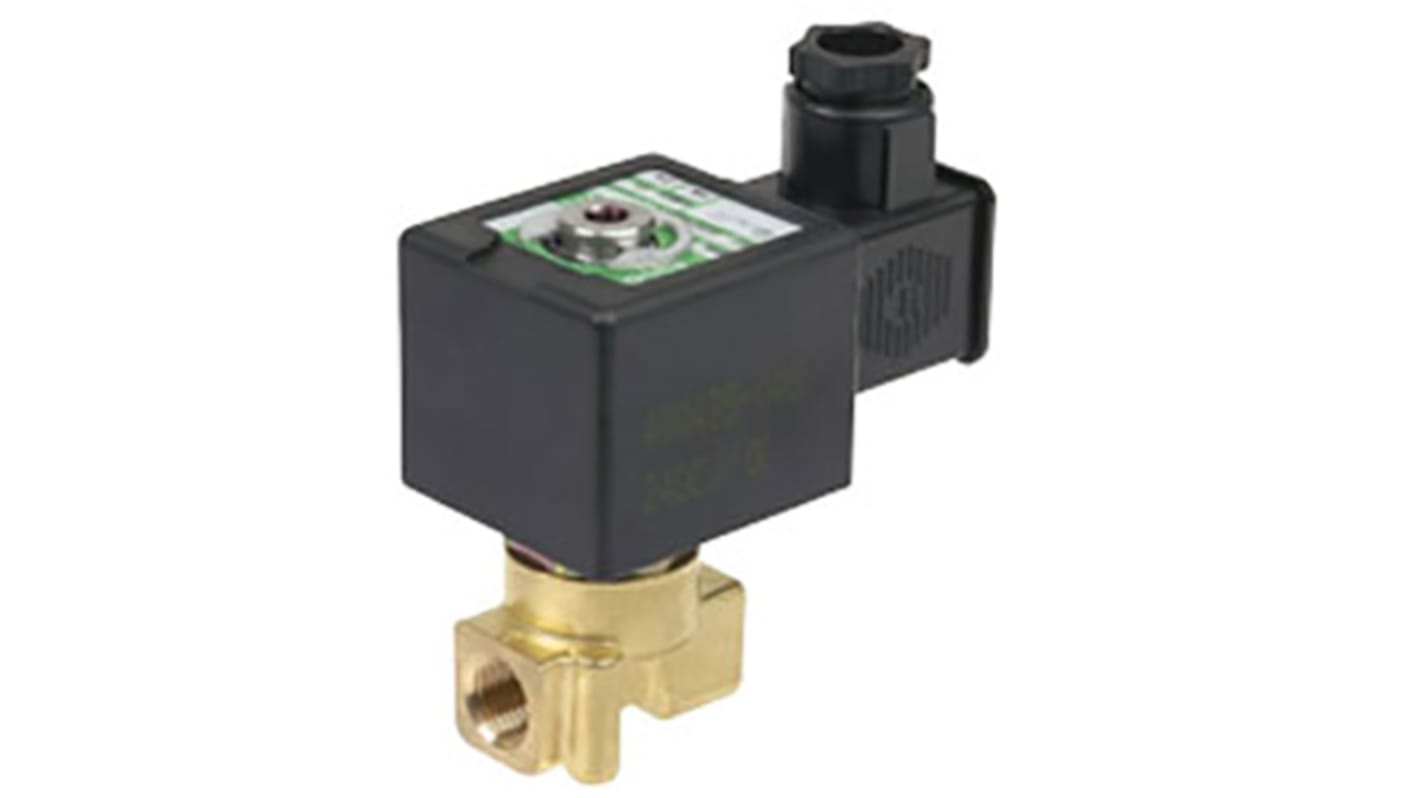

EMERSON – ASCO Solenoid Valve SCG262C090VM.230/50, 2 Port, NC, 230 V ac 1/4 in, 1/4 in

View all Solenoid Valves

Subtotal (1 unit)*

£360.21

(exc. VAT)

£432.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£360.21

*price indicative

RS Stock No.:
656-3490
Mfr. Part No.:
SCG262C090VM.230/50
Brand:
EMERSON ? ASCO
Find similar products by selecting one or more attributes.
Select all

Brand

EMERSON ? ASCO

Supply Voltage

230 V ac

Product Type

Solenoid Valve

Number of Ports

2

Inlet Port Size

1/4 in

Default Valve Position

NC

Outlet Port Size

1/4 in

Outlet Connection Type

Threaded

Inlet Connection Type

Threaded

Inlet Thread Standard

ISO 228/1

Orifice Diameter

7.1mm

Application

Air, Inert Gas, Medium Vacuum

Body Material

Brass

Series

262

Minimum Operating Temperature

-20°C

Outlet Thread Standard

ISO 228/1

Maximum Operating Pressure

2.5 bar

Maximum Operating Temperature

90°C

Standards/Approvals

No

Hazardous Area Certification

No

Flow Factor Kv

0.82m³/h

Maximum Closing Time

25ms

Maximum Opening Time

25ms

RoHS Status: Exempt

COO (Country of Origin):
FR

262 series 2 / 2 direct operated solenoid valves


2 / 2 N/C direct-operated solenoid valves for vacuum service, 1/4" outlet.

Special manufacturing procedures used to avoid molecular contamination.

Do not require a minimum operating pressure.

Suitable for low and medium vacuum service.

Rough vacuum up to 1.33.10-3 mbar.

Pluggable connectors.

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Standards

ISO 4400 - IEC 335
