Weller WDD 81V Desoldering Station 80W, 230V

  • RS Stock No. 343-8600
  • Mfr. Part No. T0053256399N
  • Brand Weller
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

Note


Please be aware solder wire is not included with this Soldering Station. Why not try RS brand Solder wire? 756-8884

Desoldering Station WDD-81V

Introducing the Weller WDD 81 Desoldering Station. A microprocessor-controlled single output rework station for professional desoldering applications. Supplied with desoldering iron, replaceable nozzles and safety rest, this complete set is ideal for desoldering PCB boards with through-hole components. The ergonomically designed DSX 80 desoldering nozzle offers maximum comfort and firm grip even in extended use. The vacuum is activated by a switch incorporated in the handle. The DSX 80 is fully compatible with a wide range range of nozzles and CSFs. The Weller WDD 81V is available with two plug options to choose from:
• F-Type (Shuko) plug - 431-0323
• G-Type (UK) plug - 343-8600

Features and Benefits:

PUDD 81 Control Unit: • Power Consumption: 95 W
• 1 channel
• Digital controlled electronic for soldering or desoldering tools up to 80 W
• Compressed air converter provides vacuum for the desoldering iron
• Temperature control via buttons
• 3-position digital display
• Antistatic housing
• Equipotential bonding (normal state hard grounded)
• Automatic tool recognition
• Inlet pressure 500 - 600 KPA (58 - 87 psi) oil-free, dry compressed air or inert gas
• Dimensions: 166 x 115 x 101 mm (W x L x H)
• Additional functions can be programmed using optional Calibration Box WCB-1 including: temp. lock, set-back time, temp. offset and °C/F
DSX 80 Desoldering Iron:
• Threadless nozzle fixture system
• External solder collector
• Same working position as usual soldering irons
• 80W, 24V

Typical Applications:

Soldering / Desoldering Irons are used to work and rework solder in all manner of applications, particularly in repairing or building PCB circuit boards with SMD and through-hole components. They are commonly used in electronic prototyping and production, and any application where a circuit board component might have to be removed or adjusted. Soldering / Desoldering Irons are often used by: • Engineers
• Electricians
• Metalworkers
• Jewellers
• Home inventors

FAQs:

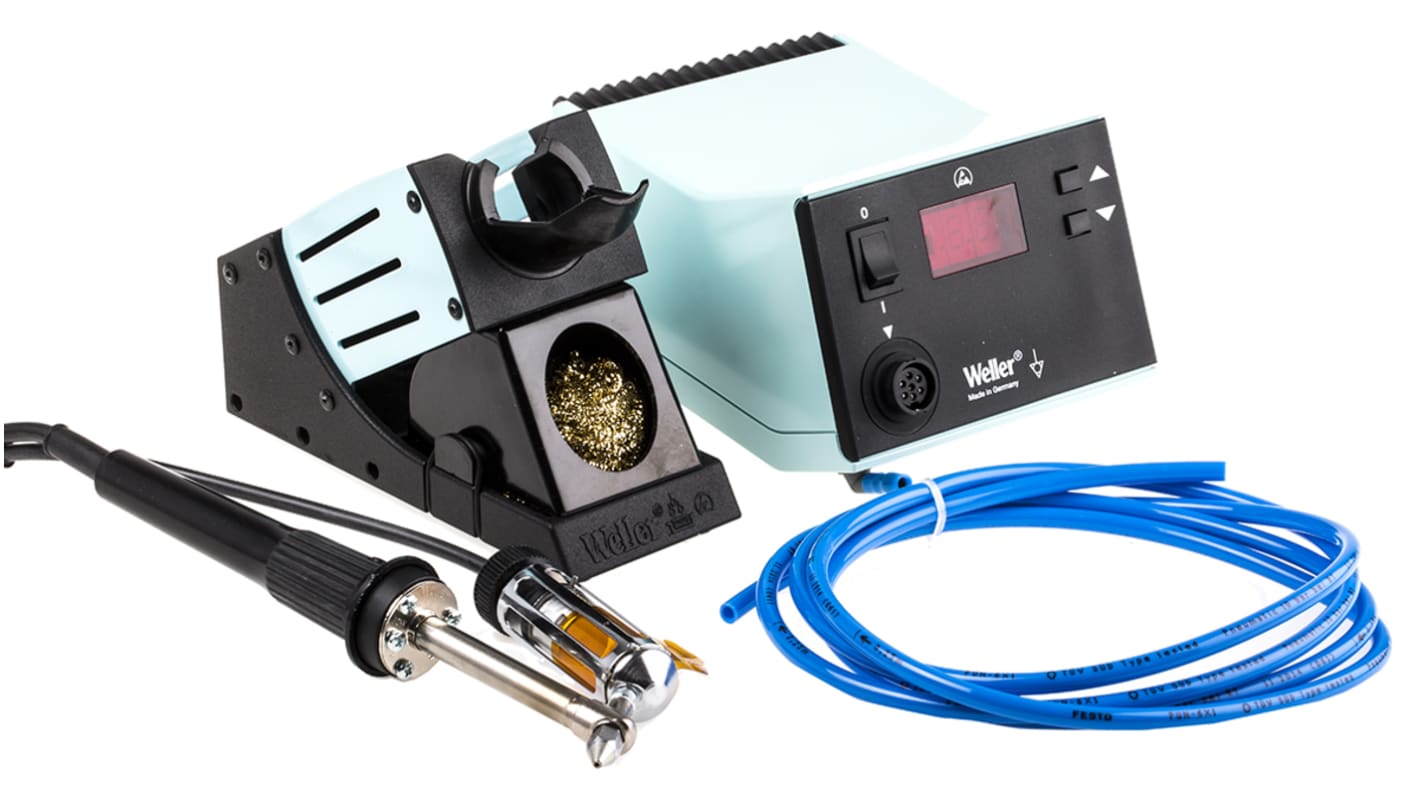

What is included in the set? • PUDD 81 Control Unit 230 V
• DSX 80 Desoldering iron 80 W
• WDH 30 Safety rest
• 2 Nozzles (DX 112 & DX 113)
• Cleaning set
Do you stock replacement parts for this desoldering iron?
Yes, the full range covers:
• Iron Filter Cartridge - 533-0154
• Desoldering Iron Guards – 517-700
• Vacuum Glass Tube with film – 517-671
• Desoldering Iron Filter – 517-665
Do you stock compatible nozzles?
Yes, the DSX 80 Desoldering Iron is compatible with DX & XDS series threadless fixture system nozzels from Weller e.g:
XDS 1 - 764-2904
XDS 5 - 764-2913
DX 113 - 405-3525
DX 117 - 914-0104

De-Soldering - Weller

Specifications
Attribute Value
Model Number WDD 81V
Tasks Supported Desoldering
Plug Type Type G - British 3-pin
Wattage 80W
Input Voltage 230V
Soldering Tip Temperature +450°C
Number of Outputs 1
Display Type LED
ESD Safe Yes
3 In stock for FREE next working day delivery
Price Each
£ 805.71
(exc. VAT)
£ 966.85
(inc. VAT)
Units
Per unit
1 +
£805.71
