Weller Soldering Accessory WXSF120 Solder Feeder System WX Series, for use with WX Power Supply
- RS Stock No.:
- 909-8148
- Mfr. Part No.:
- T0051391199
- Brand:
- Weller
Subtotal (1 unit)*
£1,770.83
(exc. VAT)
£2,125.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,770.83 |
*price indicative
- RS Stock No.:
- 909-8148
- Mfr. Part No.:
- T0051391199
- Brand:
- Weller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weller | |
Soldering Accessory Type | Solder Feeder System | |
Model Number | WXSF120 | |
For Use With | WX Power Supply | |
Series | WX | |
Voltage Rating | 24V | |
Wattage | 120W | |
Select all | ||
---|---|---|
Brand Weller | ||
Soldering Accessory Type Solder Feeder System | ||
Model Number WXSF120 | ||
For Use With WX Power Supply | ||
Series WX | ||
Voltage Rating 24V | ||
Wattage 120W | ||
- COO (Country of Origin):
- CH

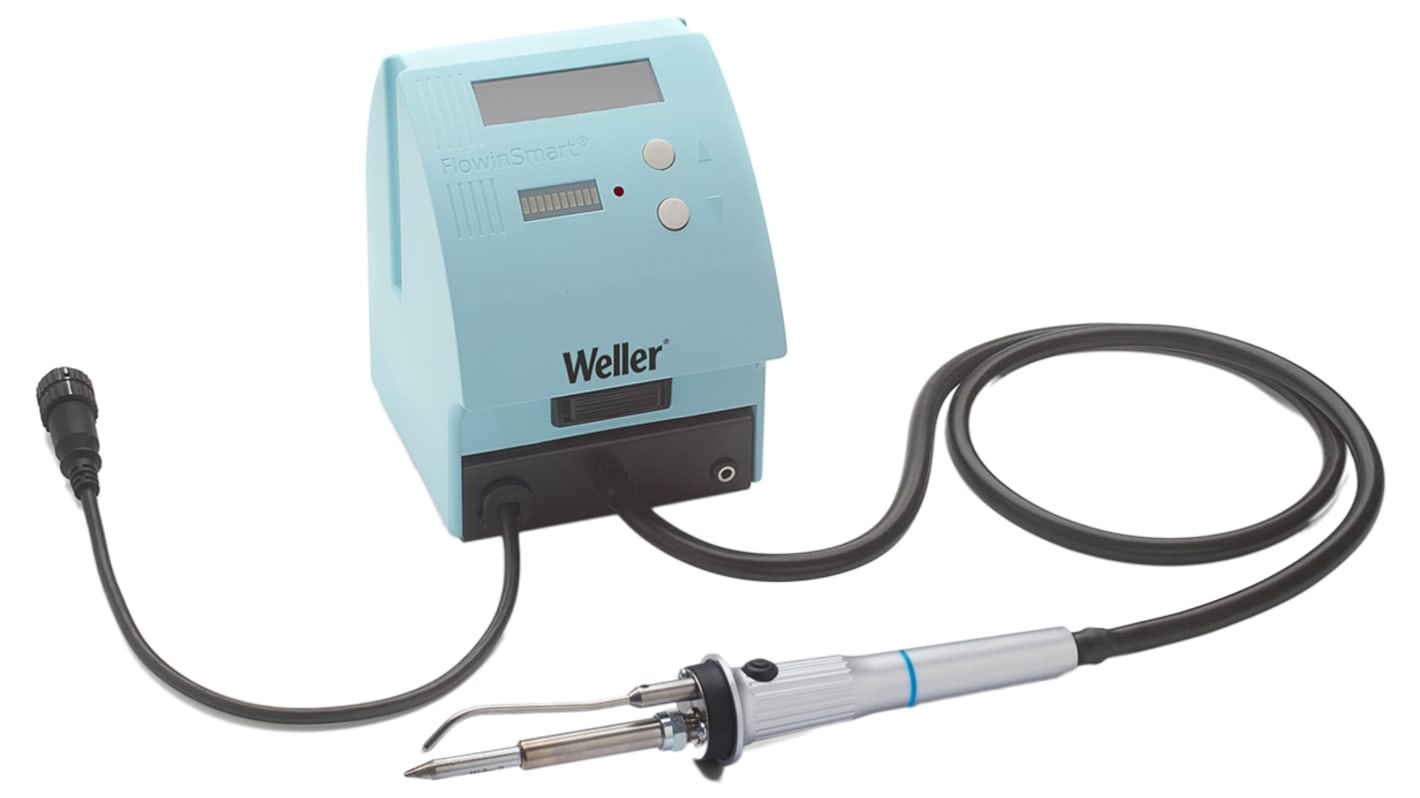

Weller WXSF 120 Automatic Solder Feeder
This WX-compatible 120 W automatic solder wire feeder unit from Weller is designed for precise and efficient one-handed soldering.
Allowing you to pre-set the amount of solder to be delivered ensures even application of solder, plus you can choose between Timer or Pulse modes to control the delivery method.
Allowing you to pre-set the amount of solder to be delivered ensures even application of solder, plus you can choose between Timer or Pulse modes to control the delivery method.
Features and Benefits
Single-handed soldering for automated solder wire feeding
Special non-stick coating in feeder tube stops flux adhesion for reduced maintenance
Wide temperature range – 100-450°C / 200-850°F
Adjustable feed motion from 1 to 27.5 mm per second
Integrated standby function conserves energy and extends units service life
Can be used with a wide range of Weller soldering stations
Special non-stick coating in feeder tube stops flux adhesion for reduced maintenance
Wide temperature range – 100-450°C / 200-850°F
Adjustable feed motion from 1 to 27.5 mm per second
Integrated standby function conserves energy and extends units service life
Can be used with a wide range of Weller soldering stations
Includes
Solder Wire Feeder Unit
120 W Soldering Iron with Integrated Solder Feeder
Soldering Tip: XT B 2.4 mm
120 W Soldering Iron with Integrated Solder Feeder
Soldering Tip: XT B 2.4 mm
