Staubli MC4-Evo 2 Series, Male Panel Solar Connector, Cable CSA, 10mm², 1.5kV, 69A
- RS Stock No.:
- 287-2959
- Mfr. Part No.:
- 32.0325P0010
- Brand:
- Staubli
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£4.01
(exc. VAT)
£4.81
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 18 unit(s) shipping from 13 July 2026
- Plus 572 unit(s) shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £4.01 |
| 10 - 49 | £3.85 |
| 50 - 99 | £3.71 |
| 100 - 499 | £3.61 |
| 500 + | £3.55 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
- RS Stock No.:
- 287-2959
- Mfr. Part No.:
- 32.0325P0010
- Brand:
- Staubli
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Staubli | |
| Sub Type | Connector | |
| Termination Type | Crimp | |
| Product Type | Solar Connector | |
| Cable CSA | 10mm² | |
| Current | 69A | |
| Mount Type | Panel | |
| Connector Gender | Male | |
| Voltage | 1.5kV | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Better World Product | Yes | |
| Better World Claim | Renewable Energy Solution | |
| Series | MC4-Evo 2 | |
| Select all | ||
|---|---|---|
Brand Staubli | ||
Sub Type Connector | ||
Termination Type Crimp | ||
Product Type Solar Connector | ||
Cable CSA 10mm² | ||
Current 69A | ||
Mount Type Panel | ||
Connector Gender Male | ||
Voltage 1.5kV | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Better World Product Yes | ||
Better World Claim Renewable Energy Solution | ||
Series MC4-Evo 2 | ||
- COO (Country of Origin):
- FR

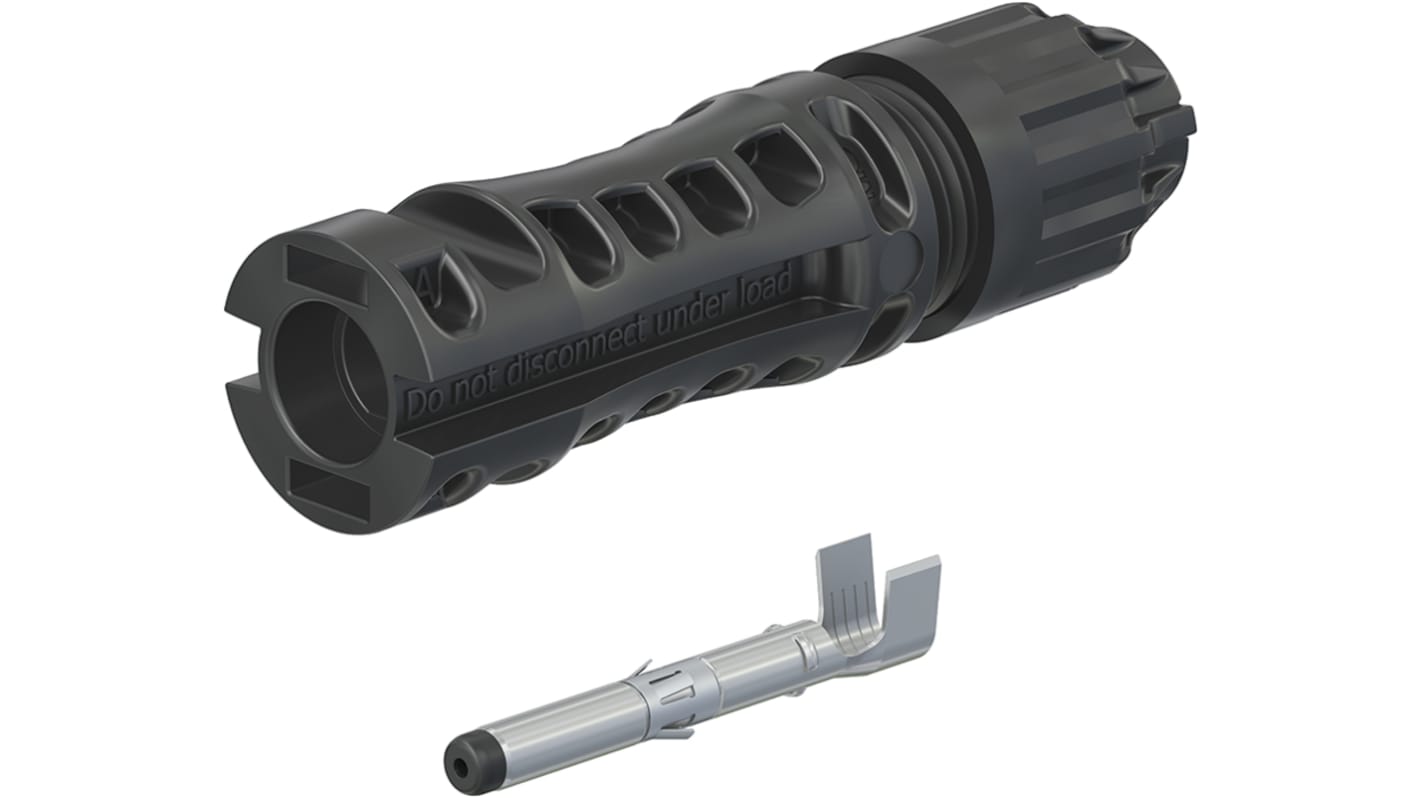

The Staubli Female and male cable coupler MC4-Evo 2 is an Internationally certified with IEC, UL, JET, cTUVus. Approved for DC 1500 V according to IEC, JET and DC 1500 V according to UL standard. MULTILAM Technology, has proven the quality and durability several 100 million times since 2004.
IP68 and IP65 degree protection
IP2X degree protection
UV resistance
Fire protection class UL94 V0
