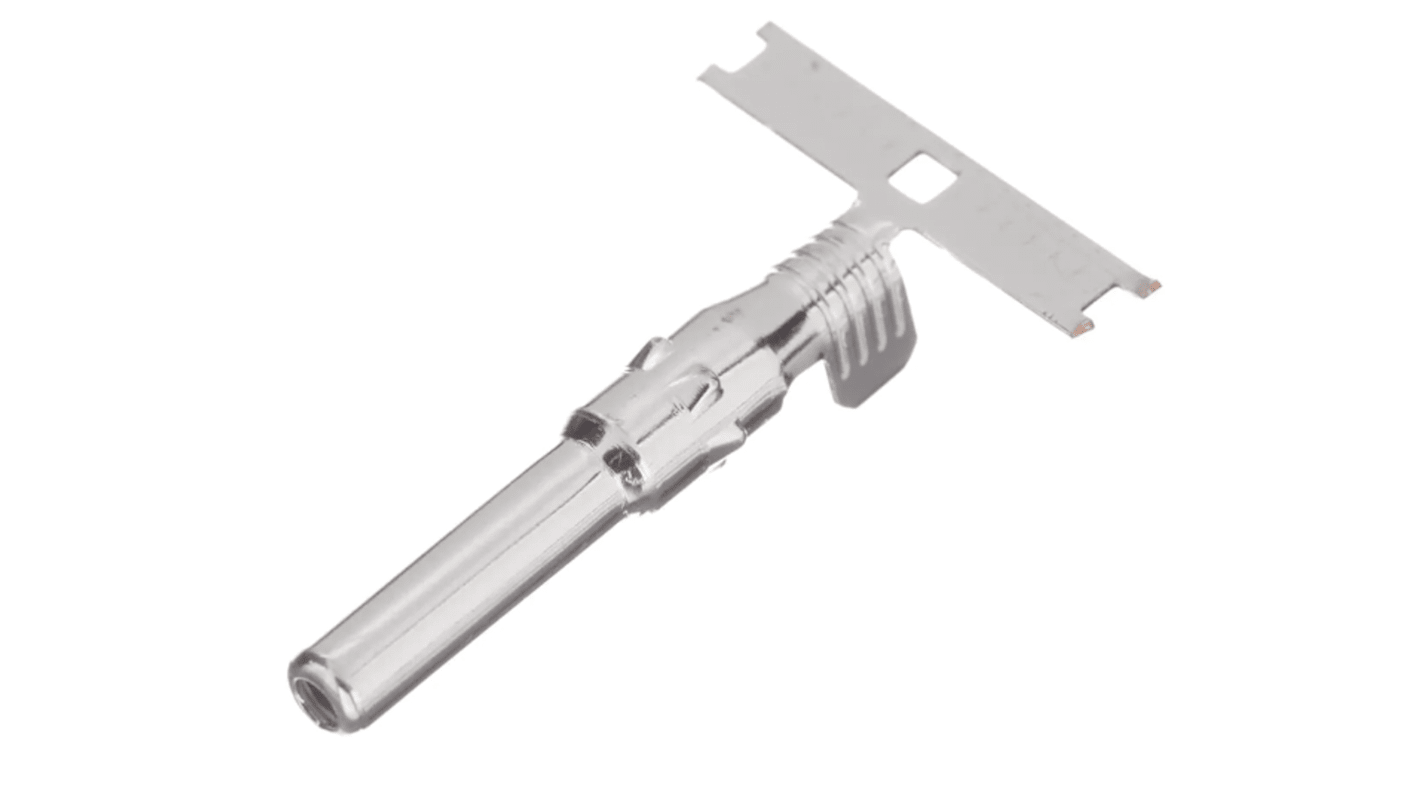

Amphenol Industrial UTX Series, Male Panel Solar Connector, 1.5kV, 65A
- RS Stock No.:
- 249-8950
- Mfr. Part No.:
- UTXFM4R
- Brand:
- Amphenol Industrial
Bulk discount available
Subtotal (1 pack of 10 units)*
£2.33
(exc. VAT)
£2.80
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1,770 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.233 | £2.33 |
| 100 - 240 | £0.196 | £1.96 |
| 250 - 490 | £0.19 | £1.90 |
| 500 - 990 | £0.184 | £1.84 |
| 1000 + | £0.175 | £1.75 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 249-8950
- Mfr. Part No.:
- UTXFM4R
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Termination Type | Crimp | |
| Sub Type | H4 Plus Panel Mount Connector | |
| Product Type | Solar Connector | |
| Current | 65A | |
| Mount Type | Panel | |
| Connector Gender | Male | |
| Voltage | 1.5kV | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | IEC 685, Class A, UL 670 | |
| Better World Product | Yes | |
| Better World Claim | Renewable Energy Solution | |
| Series | UTX | |
| Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Termination Type Crimp | ||
Sub Type H4 Plus Panel Mount Connector | ||
Product Type Solar Connector | ||
Current 65A | ||
Mount Type Panel | ||
Connector Gender Male | ||
Voltage 1.5kV | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals IEC 685, Class A, UL 670 | ||
Better World Product Yes | ||
Better World Claim Renewable Energy Solution | ||
Series UTX | ||
The Amphe-PV H4 Plus panel mounted connector from Amphenol Industrial Sustainable Technologies is a robust. It has dual-certified DC connector. As an evolution of AIST’s well-known H4 connector. The Amphe-PV H4 Plus panel mounted connector includes the same excellent durability.
1500V dual-certified to UL 6703 and IEC 62852 by UL & TÜV
Guaranteed to reliably mate with AIST’s entire PV product line
NEC Code Compliant (no locking sleeve required; UL certification only)
0.20 mΩ low resistance RADSOK® contact(Cold-formed contact)
Both stamped and formed (S&F) and machined/cold-formed (CF) contact types available, for ease of field installation
Accepts wire gauges from 14AWG/2.5mm² to 8AWG/10.0mm²
Cable OD range from Ø5.0mm to Ø8.7mm
IP68 Rating (when mated)
UV Resistance
UL94 V-0 (self-extinguishing)
RoHS, REACH compliant
Standard operating temperature range of -40°C to 85°C
Amphe-PV H4 Plus™ panel mounted connector
