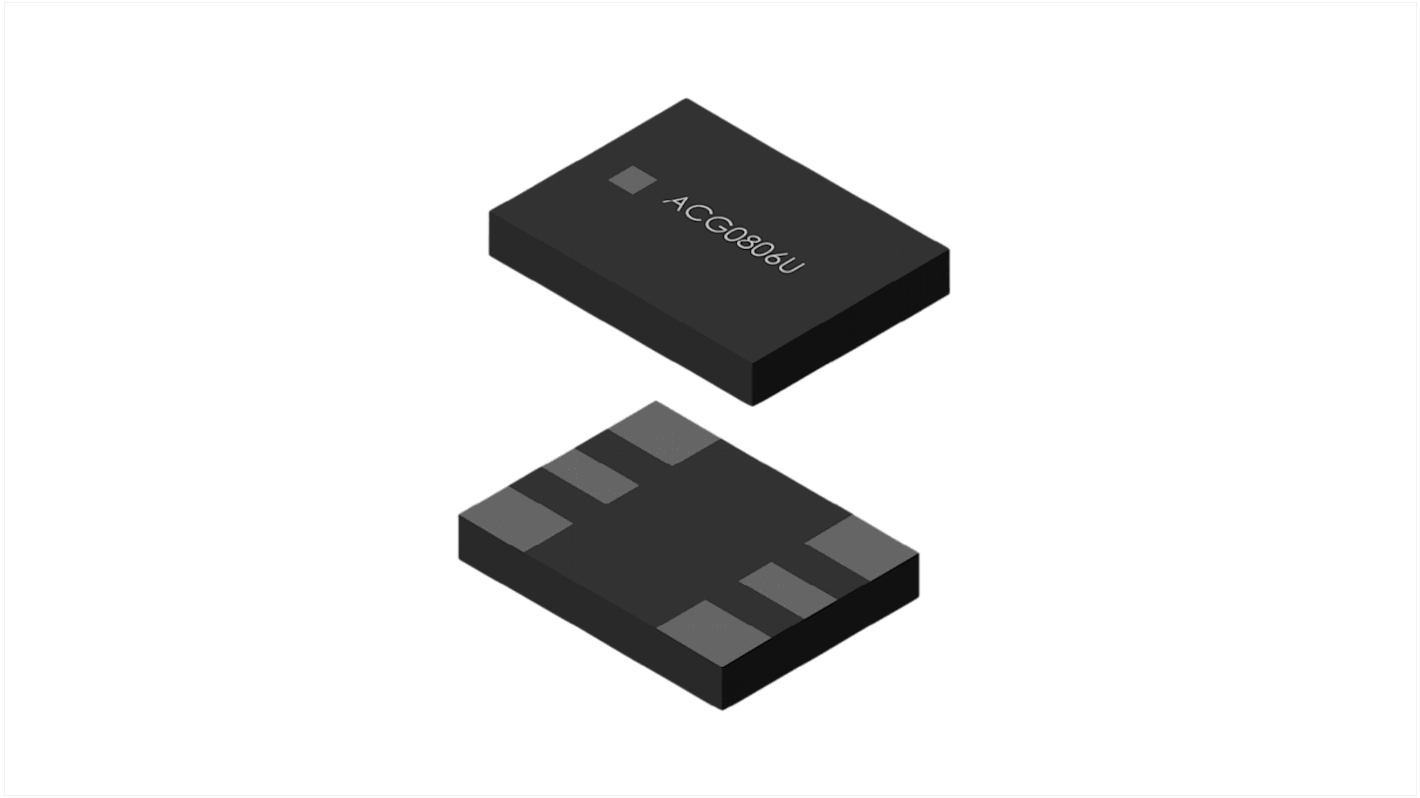

Abracon Internal SMT Antenna, Ultra Wideband (UWB)
- RS Stock No.:
- 263-7823
- Mfr. Part No.:
- ACG0806U
- Brand:
- Abracon
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 500 units)*
£1,251.50
(exc. VAT)
£1,502.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 30 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 - 500 | £2.503 | £1,251.50 |
| 1000 + | £2.115 | £1,057.50 |
*price indicative
- RS Stock No.:
- 263-7823
- Mfr. Part No.:
- ACG0806U
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Product Type | SMT Antenna | |
| RF Protocols | Ultra Wideband (UWB) | |
| Internal/External | Internal | |
| Antenna Physical Form | Chip | |
| Maximum Operating Temperature | 105°C | |
| Bandwidth | 4000MHz | |
| Minimum Frequency | 3300MHz | |
| Minimum Operating Temperature | -40°C | |
| Gain | 8dBi | |
| Maximum Frequency | 7200MHz | |
| Series | ACG0806U | |
| Antenna Mount Type | Surface | |
| Standards/Approvals | RoHS, ISO9001-2015 Certified | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Product Type SMT Antenna | ||
RF Protocols Ultra Wideband (UWB) | ||
Internal/External Internal | ||
Antenna Physical Form Chip | ||
Maximum Operating Temperature 105°C | ||
Bandwidth 4000MHz | ||
Minimum Frequency 3300MHz | ||
Minimum Operating Temperature -40°C | ||
Gain 8dBi | ||
Maximum Frequency 7200MHz | ||
Series ACG0806U | ||
Antenna Mount Type Surface | ||
Standards/Approvals RoHS, ISO9001-2015 Certified | ||
- COO (Country of Origin):
- CN
The Abracon Ultra Wide Band (UWB) Chip Antennas are designed for next generation connectivity with fast and reliable data transmission. The UWB antennas offer high efficiency and low power consumption. These long range antennas covers all relative frequency bands.
BW of 4000 MHz
Linear polarization
