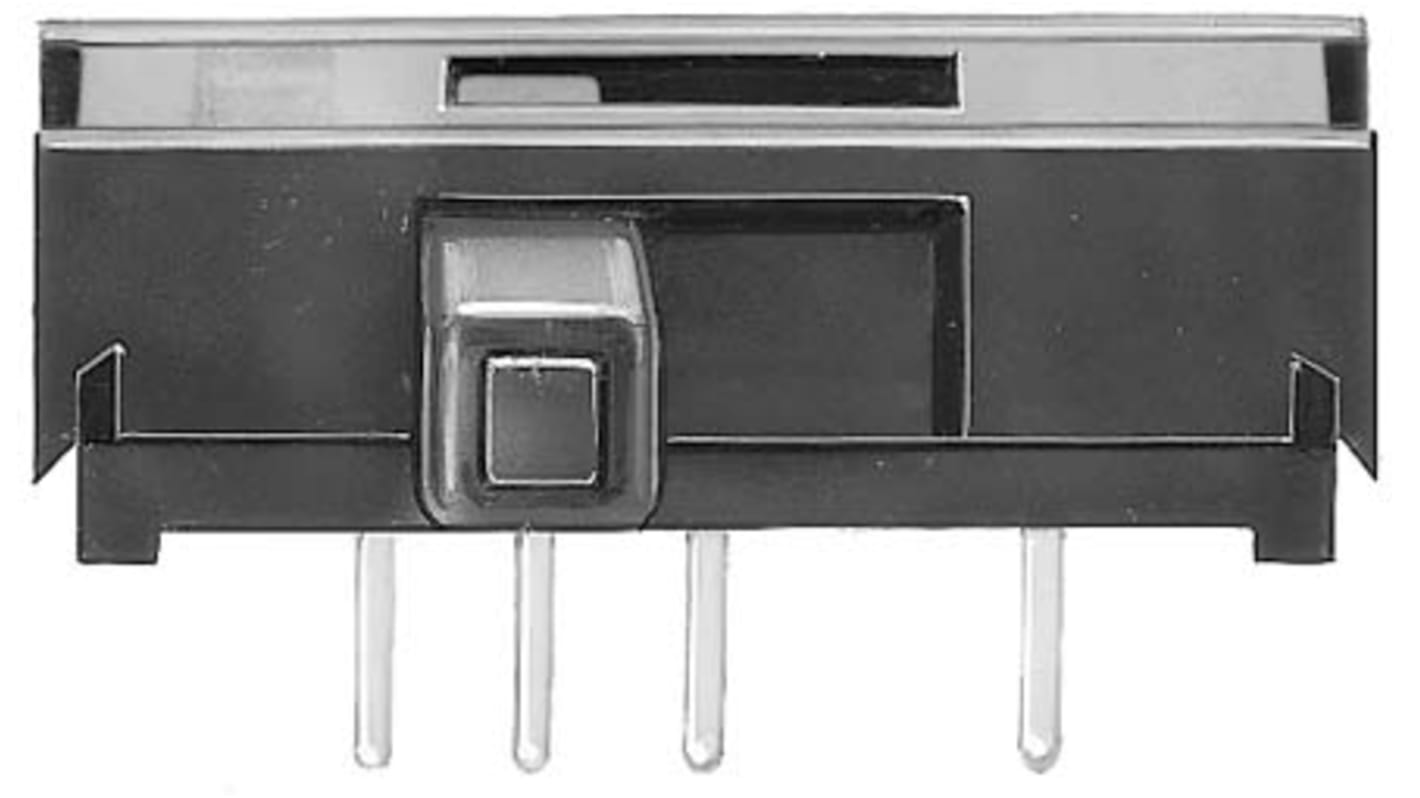

PCB Slide Switch Single Pole Single Throw (SPST) Latching 200 mA @ 30 V dc Slide

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Knitter Switch Miniature Slide Switches - MFP Series

PCB mount, Break before make
Contact material: copper alloy, silver plated over nickel barrier
Mechanical life: 10000 operations min.

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Mounting Type PCB
Switch Operation Latching
Contact Current Rating 200 mA @ 30 V dc
Terminal Type Pc Pin
Actuator Type Slide
Length 14.6mm
Width 4.7mm
Depth 10.8mm
Dimensions 14.6 x 4.7 x 10.8mm
Contact Resistance 30mΩ
Actuator Material Polybutylene Terephthalate
Operating Temperature Range -10 → +60°C
Voltage Rating 30V dc
Minimum Operating Temperature -10°C
Maximum Operating Temperature +60°C
Contact Material Phosphor Bronze
130 In stock for FREE next working day delivery
Price Each (In a Bag of 5)
£ 1.098
(exc. VAT)
£ 1.318
(inc. VAT)
Units
Per unit
Per Bag*
5 +
£1.098
£5.49
*price indicative
