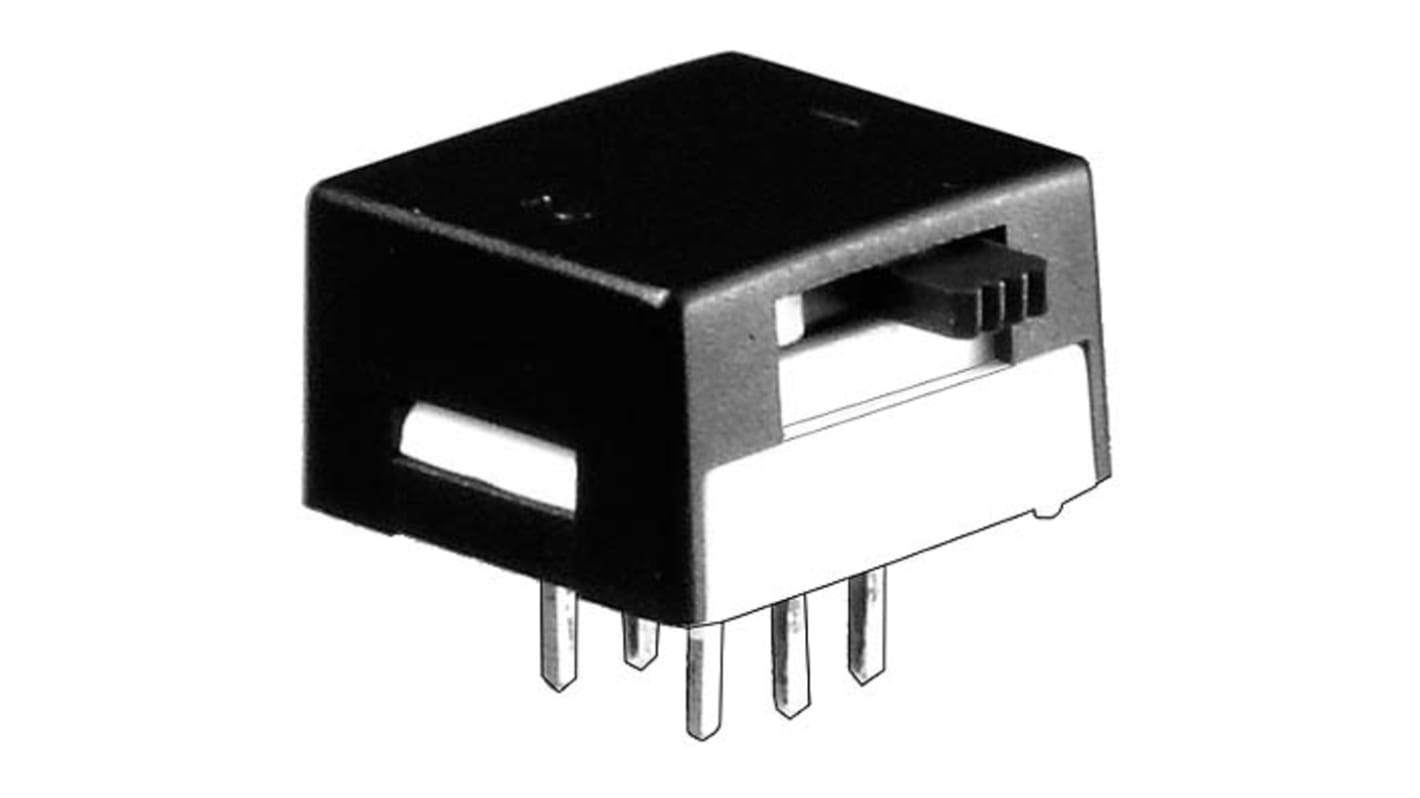

KNITTER-SWITCH PCB Slide Switch DPDT Latching 1 A @ 250 V ac, 3 A @ 120 V ac, 3 A @ 28 V dc Slide
- RS Stock No.:
- 913-8946
- Mfr. Part No.:
- MSS 3122 N-R
- Brand:
- KNITTER-SWITCH
Bulk discount available
Subtotal (1 unit)*
£2.69
(exc. VAT)
£3.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 122 unit(s) ready to ship
- Plus 999,999,877 unit(s) shipping from 22 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £2.69 |
| 10 - 49 | £2.43 |
| 50 - 99 | £2.03 |
| 100 - 249 | £1.88 |
| 250 + | £1.73 |
*price indicative
- RS Stock No.:
- 913-8946
- Mfr. Part No.:
- MSS 3122 N-R
- Brand:
- KNITTER-SWITCH
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KNITTER-SWITCH | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB | |
| Switch Operation | Latching | |
| Contact Current Rating | 1 A @ 250 V ac, 3 A @ 120 V ac, 3 A @ 28 V dc | |
| Terminal Type | PC Pin | |
| Actuator Type | Slide | |
| Length | 14mm | |
| Width | 12.8mm | |
| Depth | 7.7mm | |
| Dimensions | 14 x 12.8 x 7.7mm | |
| Contact Resistance | 50mΩ | |
| Mechanical Life | 20000Operations | |
| Voltage Rating | 28 V dc, 120 V ac, 250V ac | |
| Maximum Operating Temperature | +85°C | |
| Actuator Material | Nylon | |
| Operating Temperature Range | -40 → +85°C | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand KNITTER-SWITCH | ||
Contact Configuration DPDT | ||
Mounting Type PCB | ||
Switch Operation Latching | ||
Contact Current Rating 1 A @ 250 V ac, 3 A @ 120 V ac, 3 A @ 28 V dc | ||
Terminal Type PC Pin | ||
Actuator Type Slide | ||
Length 14mm | ||
Width 12.8mm | ||
Depth 7.7mm | ||
Dimensions 14 x 12.8 x 7.7mm | ||
Contact Resistance 50mΩ | ||
Mechanical Life 20000Operations | ||
Voltage Rating 28 V dc, 120 V ac, 250V ac | ||
Maximum Operating Temperature +85°C | ||
Actuator Material Nylon | ||
Operating Temperature Range -40 → +85°C | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
Knitter Switch Miniature Slide Switches - MSS Series
Lead-free auto-solderable at 260ºC for 5 seconds
Black nylon actuator and case, white nylon base
Typical applications include PCB or front panel control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Black nylon actuator and case, white nylon base
Typical applications include PCB or front panel control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
