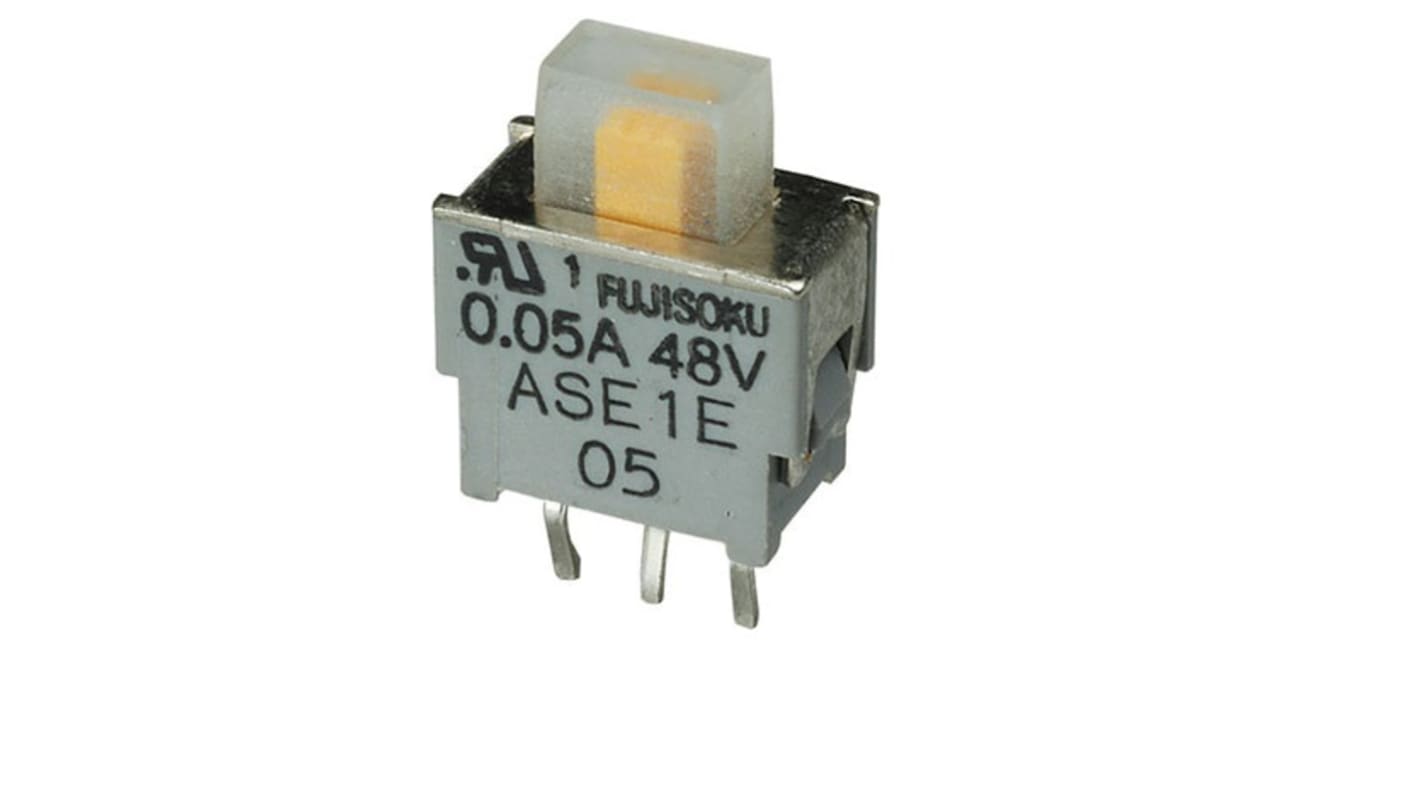

Nidec Components PCB Slide Switch SPDT On-Off-On 0.4 VA
- RS Stock No.:
- 244-3290
- Mfr. Part No.:
- ASE1E-2M-10-Z
- Brand:
- Nidec Components
Bulk discount available
Subtotal (1 tray of 25 units)*
£37.10
(exc. VAT)
£44.525
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 25 - 25 | £1.484 | £37.10 |
| 50 - 75 | £1.43 | £35.75 |
| 100 - 225 | £1.362 | £34.05 |
| 250 + | £1.295 | £32.38 |
*price indicative
- RS Stock No.:
- 244-3290
- Mfr. Part No.:
- ASE1E-2M-10-Z
- Brand:
- Nidec Components
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nidec Components | |
| Contact Configuration | SPDT | |
| Product Type | Slide Switch | |
| Mount Type | PCB | |
| Switch Operation | On-Off-On | |
| Terminal Type | PC Terminal | |
| Illuminated | No | |
| Contact AC Voltage | 60V ac | |
| Contact DC Voltage | 60V dc | |
| Depth | 14.1mm | |
| Series | ASE | |
| Length | 9.5mm | |
| Standards/Approvals | No | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand Nidec Components | ||
Contact Configuration SPDT | ||
Product Type Slide Switch | ||
Mount Type PCB | ||
Switch Operation On-Off-On | ||
Terminal Type PC Terminal | ||
Illuminated No | ||
Contact AC Voltage 60V ac | ||
Contact DC Voltage 60V dc | ||
Depth 14.1mm | ||
Series ASE | ||
Length 9.5mm | ||
Standards/Approvals No | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN
The NIDEC COPAL ELECTRONICS AS series hyper miniature slide switch which has an operating force of about 0.69 to 4.9 N.
High contact reliability
Gold plated contacts suitable for low current applications
The independent detent structure provides a light operating touch
Immersion washable type
UL-recognized
