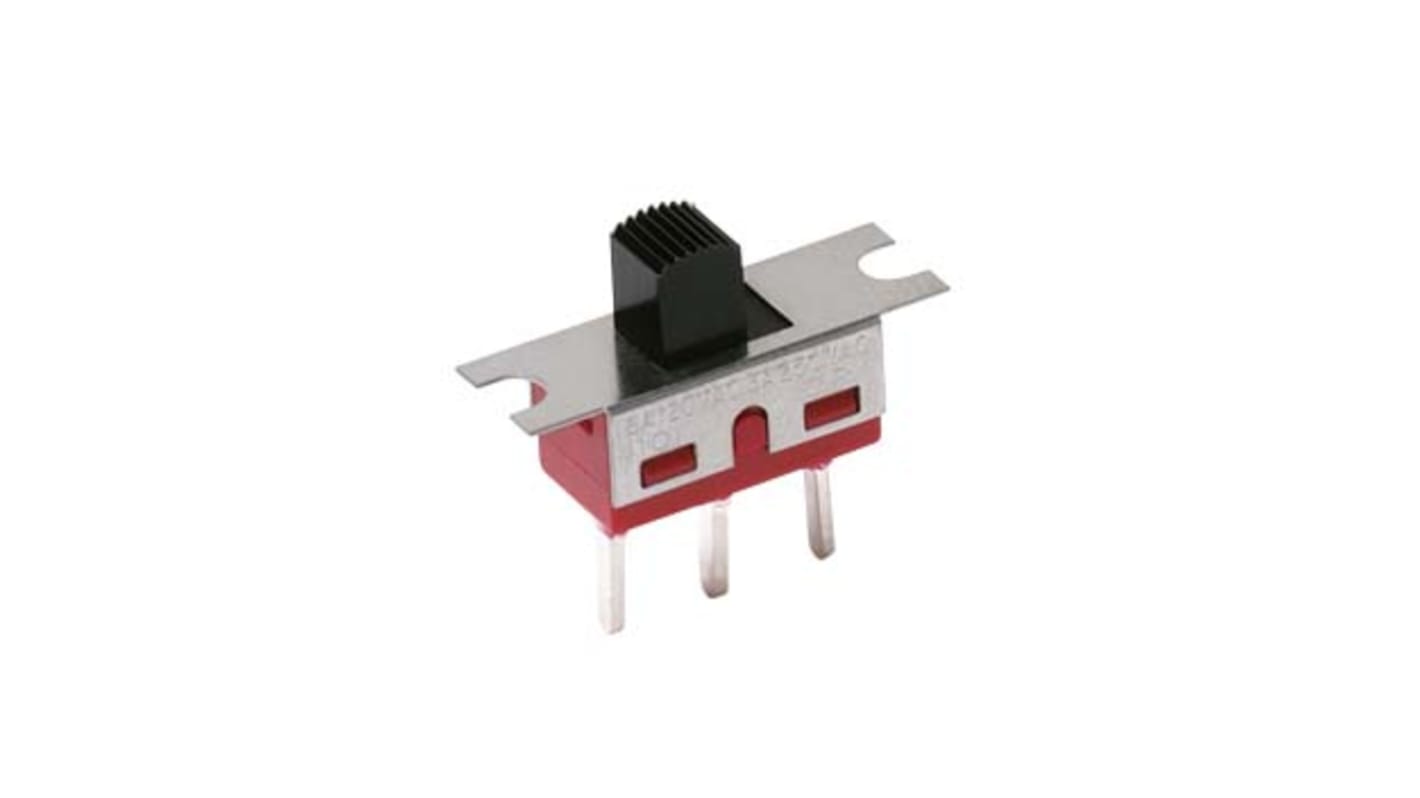

C & K Panel Mount Slide Switch SPDT Latching 6 A @ 120 V ac, 6 A @ 28 V dc Slide
- RS Stock No.:
- 155-8179
- Mfr. Part No.:
- 1101M2S3AQE2
- Brand:
- C & K
Subtotal (1 tray of 50 units)*
£207.85
(exc. VAT)
£249.40
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Tray* |
|---|---|---|
| 50 + | £4.157 | £207.85 |
*price indicative
- RS Stock No.:
- 155-8179
- Mfr. Part No.:
- 1101M2S3AQE2
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Contact Configuration | SPDT | |
| Mounting Type | Panel Mount | |
| Switch Operation | Latching | |
| Contact Current Rating | 6 A @ 120 V ac, 6 A @ 28 V dc | |
| Terminal Type | Right Angle PC Pin | |
| Actuator Type | Slide | |
| Length | 12.7mm | |
| Width | 11.43mm | |
| Depth | 6.6mm | |
| Dimensions | 12.7 x 11.43 x 6.6mm | |
| Contact Resistance | 10mΩ | |
| Voltage Rating | 28 V dc, 120V ac | |
| Operating Temperature Range | -30 → +65°C | |
| Maximum Operating Temperature | +65°C | |
| Actuator Material | Nylon | |
| Minimum Operating Temperature | -30°C | |
| Contact Material | Coin Silver (End Contact), Copper Alloy (Centre Contact) | |
Select all | ||
|---|---|---|
Brand C & K | ||
Contact Configuration SPDT | ||
Mounting Type Panel Mount | ||
Switch Operation Latching | ||
Contact Current Rating 6 A @ 120 V ac, 6 A @ 28 V dc | ||
Terminal Type Right Angle PC Pin | ||
Actuator Type Slide | ||
Length 12.7mm | ||
Width 11.43mm | ||
Depth 6.6mm | ||
Dimensions 12.7 x 11.43 x 6.6mm | ||
Contact Resistance 10mΩ | ||
Voltage Rating 28 V dc, 120V ac | ||
Operating Temperature Range -30 → +65°C | ||
Maximum Operating Temperature +65°C | ||
Actuator Material Nylon | ||
Minimum Operating Temperature -30°C | ||
Contact Material Coin Silver (End Contact), Copper Alloy (Centre Contact) | ||
- COO (Country of Origin):
- CN
C&K’s 16 series slide switches give engineers more design flexibility and options when it comes to size, mounting, actuation types, ratings and packages. Whether you develop controllers or consumer goods, headphones or HVAC controls, portable speakers or laptops, audio equipment or alarms.
Variety of actuators and terminations
Panel mount tabs available
Epoxy terminal-seal compatible with bottom wash cleaning
Test & measurement equipment
Telecommunications
Computers & peripherals
Panel mount tabs available
Epoxy terminal-seal compatible with bottom wash cleaning
Test & measurement equipment
Telecommunications
Computers & peripherals
