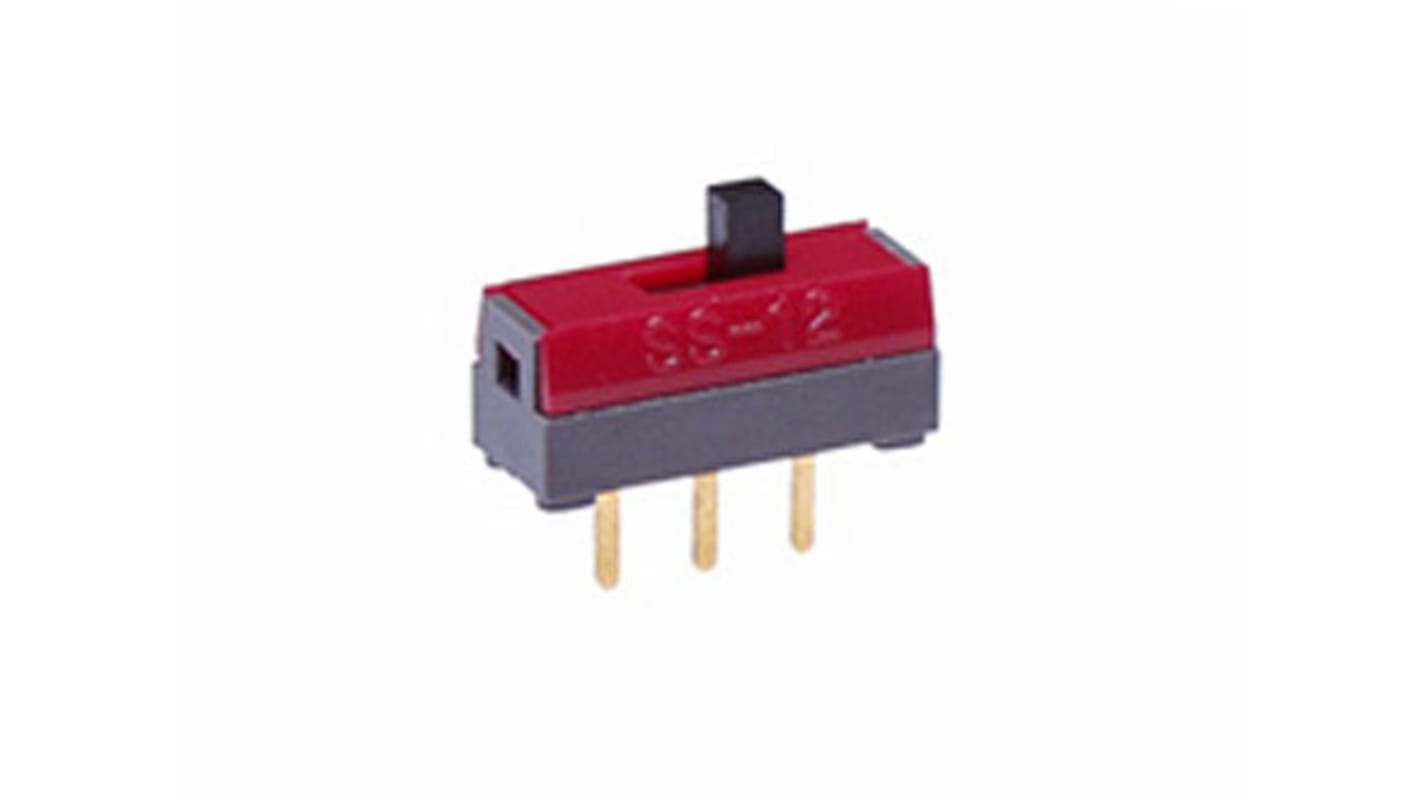

PCB Slide Switch Single Pole Double Throw (SPDT) Latching 100 mA Top

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

NKK Ultra Miniature Slide Switches

The NKK ultra miniature slide switches have an award winning STC mechanism. These slides can have molded terminals lock out flux, and other contaminants inserted.

Features and benefits

Top or side actuation
Compact dimensions
Low profile, high density mounting and stacking of PC boards
Precise actuation
Double molded thermoset base
Thermo plastic housing
STC mechanism
Enhanced contact stability
Terminal spacing for standard PC board grid in inches or metric

Note

Miniature slide series are designed for use in low voltage, low current circuits. When used as designed the results do not produce hazardous energy.

Standards

UL, CSA

Specifications
Attribute Value
Contact Configuration Single Pole Double Throw (SPDT)
Mounting Type PCB
Switch Operation Latching
Contact Current Rating 100 mA
Terminal Type Solder
Actuator Type Top
Length 10.2mm
Width 4mm
Depth 6.5mm
Dimensions 10.2 x 4 x 6.5mm
Contact Resistance 20mΩ
Minimum Operating Temperature -15°C
Voltage Rating 28V ac/dc
Maximum Operating Temperature +60°C
Contact Material Phosphor Bronze
Operating Temperature Range -15 → +60°C
Actuator Material Polyamide
140 in stock for FREE next working day delivery
165 available from Europe for delivery within 5 working day(s).
Price Each (In a Pack of 5)
£ 1.288
(exc. VAT)
£ 1.546
(inc. VAT)
Units
Per unit
Per Pack*
5 - 20
£1.288
£6.44
25 - 95
£1.156
£5.78
100 - 495
£0.968
£4.84
500 +
£0.872
£4.36
*price indicative
