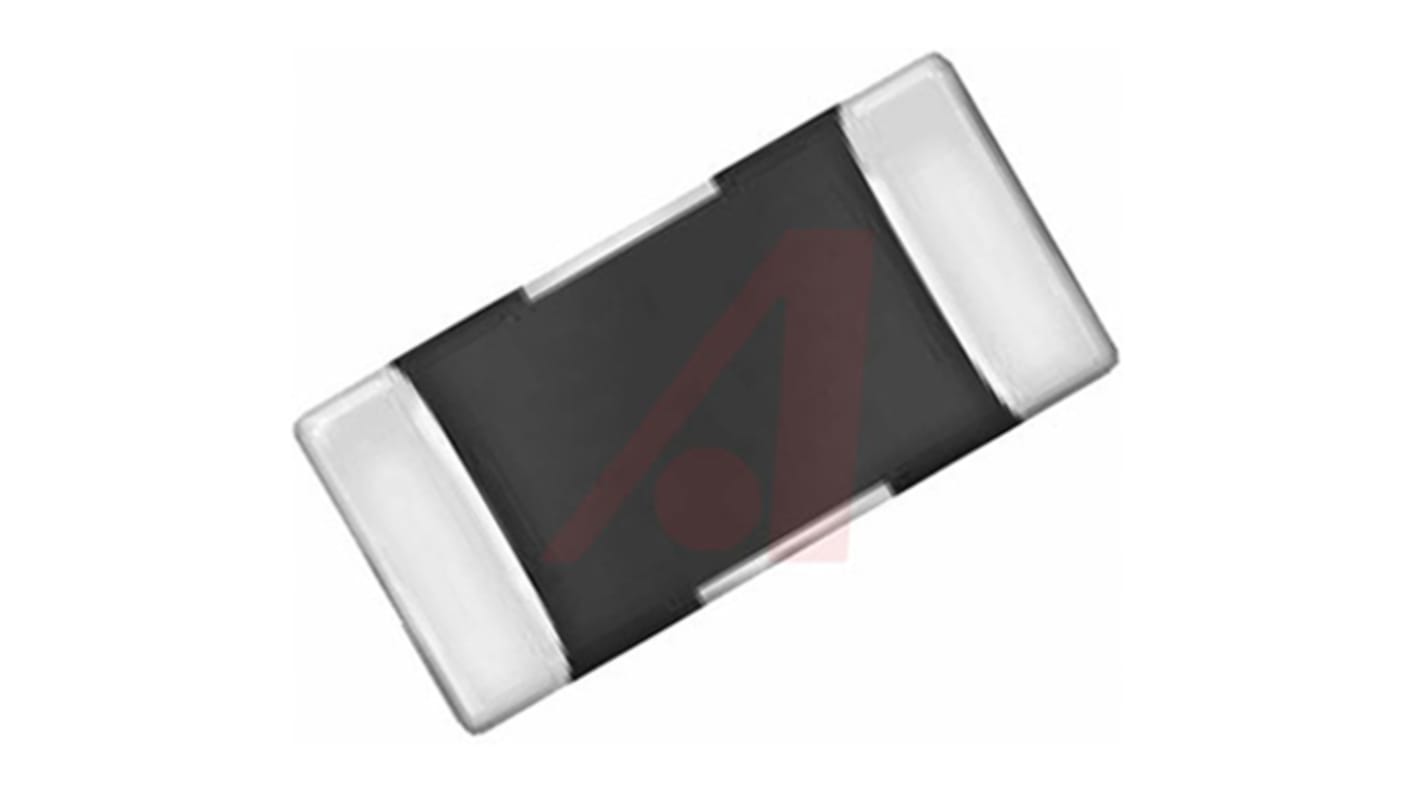

KYOCERA AVX Single Layer Ceramic Capacitor (SLCC) 470pF 100V dc -20 → +50% NP0 Dielectric, W3F, Surface Mount
- RS Stock No.:
- 887-0816
- Mfr. Part No.:
- W3F11A4718AT1F
- Brand:
- KYOCERA AVX
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£0.568
(exc. VAT)
£0.682
(inc. VAT)
- RS Stock No.:
- 887-0816
- Mfr. Part No.:
- W3F11A4718AT1F
- Brand:
- KYOCERA AVX
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KYOCERA AVX | |
| Capacitance | 470pF | |
| Voltage | 100V dc | |
| Mounting Type | Surface Mount | |
| Series | W3F | |
| Tolerance | -20 → +50% | |
| Dielectric | NP0 | |
| Package/Case | 1206 (3216M) | |
| Length | 3.2mm | |
| Depth | 1.6mm | |
| Height | 1.27mm | |
| Dimensions | 3.2 x 1.6 x 1.27mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +125°C | |
| Dielectric Material Family | Ceramic | |
| Terminal Type | SMD | |
Select all | ||
|---|---|---|
Brand KYOCERA AVX | ||
Capacitance 470pF | ||
Voltage 100V dc | ||
Mounting Type Surface Mount | ||
Series W3F | ||
Tolerance -20 → +50% | ||
Dielectric NP0 | ||
Package/Case 1206 (3216M) | ||
Length 3.2mm | ||
Depth 1.6mm | ||
Height 1.27mm | ||
Dimensions 3.2 x 1.6 x 1.27mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
Dielectric Material Family Ceramic | ||
Terminal Type SMD | ||
- COO (Country of Origin):
- US
Surface Mount 1206, W3F Series
Standard size feed-through ceramic capacitors
Low ESR, Broad frequency response
Low parallel inductance
Excellent decoupling capability
Applications include EMI suppression, filtering, conditioning and decoupling
Low ESR, Broad frequency response
Low parallel inductance
Excellent decoupling capability
Applications include EMI suppression, filtering, conditioning and decoupling
Network and Feed-through
