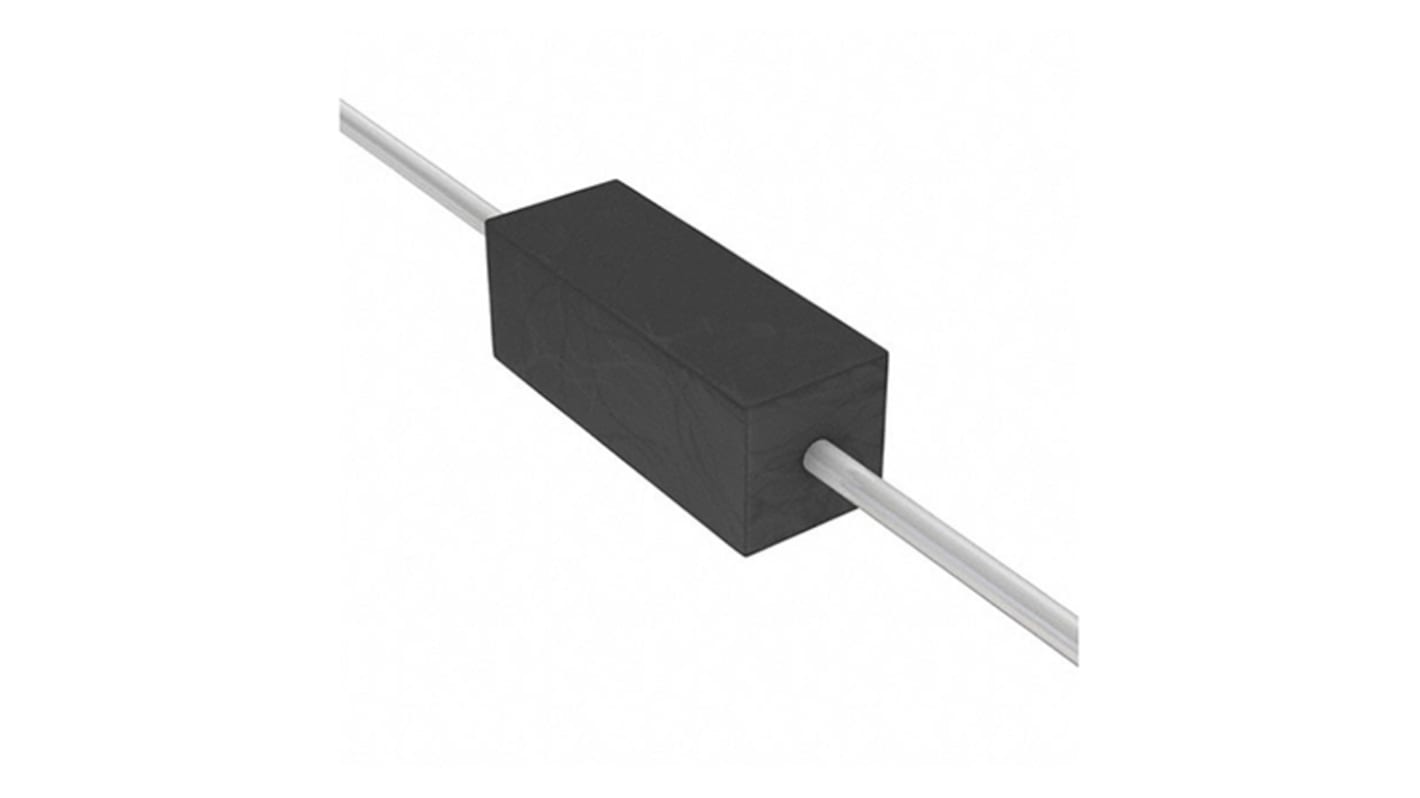

Kemet Single Layer Ceramic Capacitor SLCC 100nF 50V dc ±10% X7R Dielectric, ARA, Through Hole +200°C Max Op. Temp.
- RS Stock No.:
- 869-6429
- Mfr. Part No.:
- ARA25B104KWS
- Brand:
- KEMET
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 869-6429
- Mfr. Part No.:
- ARA25B104KWS
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 100nF | |
| Voltage | 50V dc | |
| Mounting Type | Through Hole | |
| Series | ARA | |
| Tolerance | ±10% | |
| Dielectric | X7R | |
| Length | 6.86mm | |
| Depth | 2.54mm | |
| Height | 2.54mm | |
| Dimensions | 6.86 x 2.54 x 2.54mm | |
| Temperature Coefficient | ±15% | |
| Dissipation Factor | 2.5% | |
| Dielectric Material Family | Ceramic | |
| Maximum Operating Temperature | +200°C | |
| Capacitor Family | Multilayer | |
| Tolerance Plus | +10% | |
| Minimum Operating Temperature | -55°C | |
| Tolerance Minus | -10% | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 100nF | ||
Voltage 50V dc | ||
Mounting Type Through Hole | ||
Series ARA | ||
Tolerance ±10% | ||
Dielectric X7R | ||
Length 6.86mm | ||
Depth 2.54mm | ||
Height 2.54mm | ||
Dimensions 6.86 x 2.54 x 2.54mm | ||
Temperature Coefficient ±15% | ||
Dissipation Factor 2.5% | ||
Dielectric Material Family Ceramic | ||
Maximum Operating Temperature +200°C | ||
Capacitor Family Multilayer | ||
Tolerance Plus +10% | ||
Minimum Operating Temperature -55°C | ||
Tolerance Minus -10% | ||
Non Compliant
- COO (Country of Origin):
- MX
Kemet ARA Series
Kemet ARA series high temperature ceramic cased capacitors offer a unique design concept that are ideally suited for continuous operation up to 200°C. Problems associated with epoxy cased/epoxy potted capacitors, such as material deterioration, cracks in cases and potted areas, are non-existent, even at 200°C.
Compact size
High temperature rating
Long life
High temperature rating
Long life
X7R Dielectric
Suitable for bypass, decoupling, filtering, sample and hold and timing circuits
