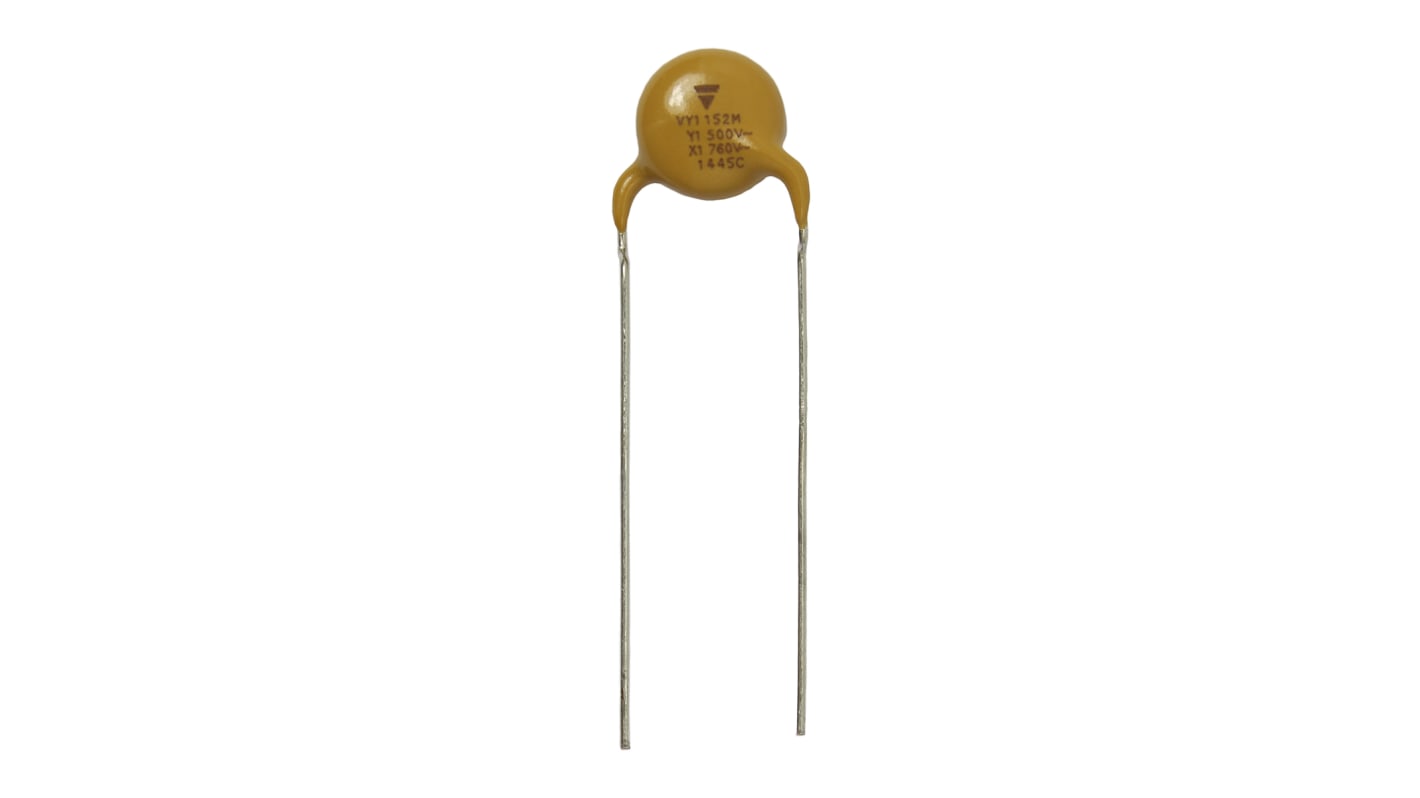

Vishay Single Layer Ceramic Capacitor (SLCC) 470pF 300V ac ±10% Y5S Dielectric, VY2, Radial +125°C Max Op. Temp.

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
852-3400
Mfr. Part No.:
VY2471K29Y5SS63V7
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Capacitance

470pF

Voltage

300 V ac, 440V ac

Mounting Type

Radial

Series

VY2

Tolerance

±10%

Dielectric

Y5S

Diameter

7.5mm

Height

5mm

Dimensions

7.5 (Dia.) x 5mm

Suppression Class

X1, Y2

Capacitor Family

Single Layer

Dielectric Material Family

Ceramic

Maximum Operating Temperature

+125°C

Minimum Operating Temperature

-40°C

Terminal Type

Radial

COO (Country of Origin):
CN

Vishay VY2 Series


Vishay VY2 Series capacitors have a ceramic disc of which both sides are silver-plated, encapsulated in a flame retardant epoxy resin. The radial connection leads are made of tinned copper clad steel. The VY2 capacitors offer a high reliability and extended temperature range making them suitable for a wide range of applications.

Features


Singlelayer AC disc capacitors
Flame retardant
High reliability

Applications


Across-the-line
Line by-pass
Antenna coupling

Approvals

IEC 60384-14.4, UL 60384-14, DIN EN 60384-14, CSA E60384-1:03, CSA E60384-14:09.
