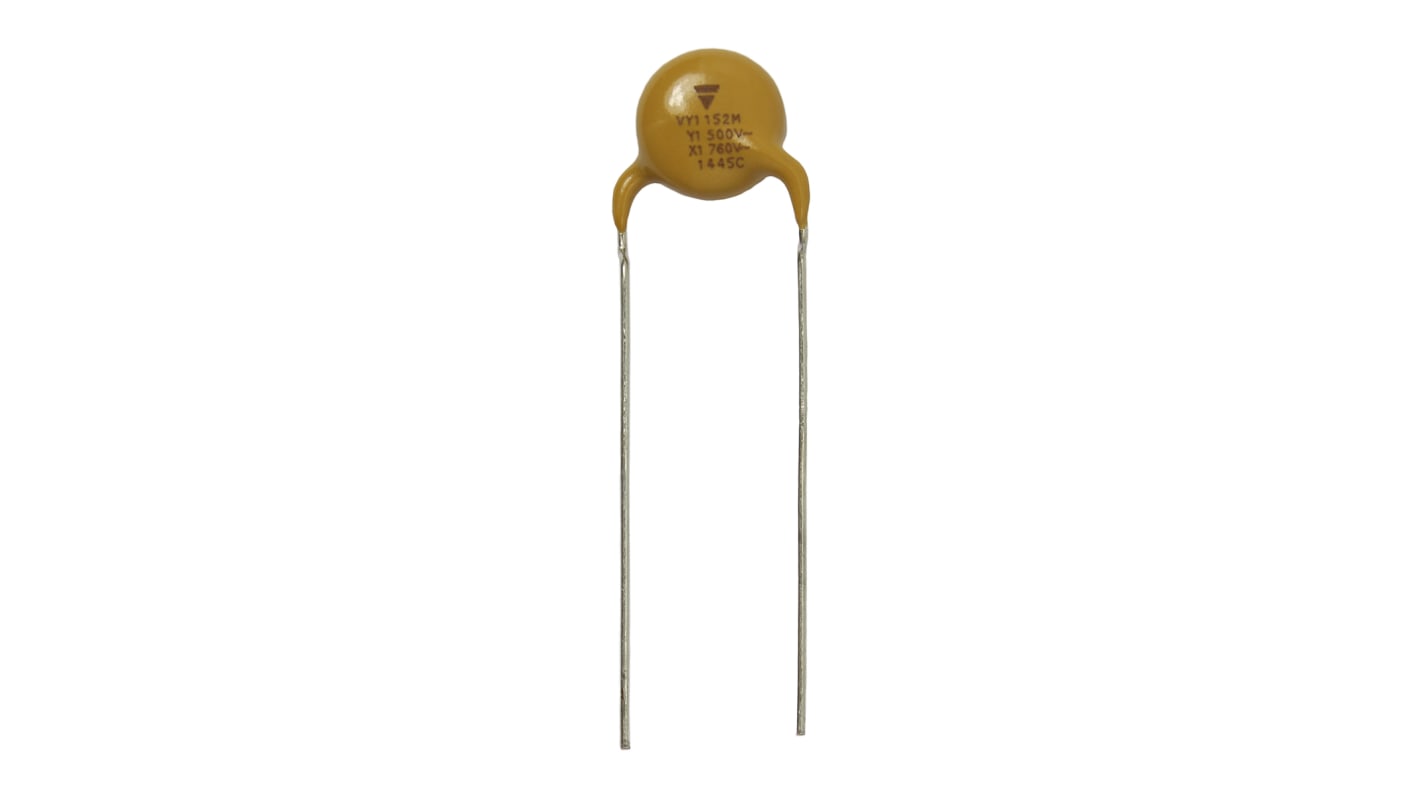

Vishay Single Layer Ceramic Capacitor (SLCC) 470pF 500V ac ±20% Y5U Dielectric, VY1, Radial +125°C Max Op. Temp.
- RS Stock No.:
- 852-3384
- Mfr. Part No.:
- VY1471M31Y5UQ63V0
- Brand:
- Vishay
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 852-3384
- Mfr. Part No.:
- VY1471M31Y5UQ63V0
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 470pF | |
| Voltage | 500 V ac, 760V ac | |
| Mounting Type | Radial | |
| Series | VY1 | |
| Tolerance | ±20% | |
| Dielectric | Y5U | |
| Diameter | 8mm | |
| Height | 5mm | |
| Dimensions | 8 (Dia.) x 5mm | |
| Temperature Coefficient | -56% → +22ppm/°C | |
| Suppression Class | X1, Y1 | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
| Terminal Type | Radial | |
| Capacitor Family | Single Layer | |
| Dielectric Material Family | Ceramic | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 470pF | ||
Voltage 500 V ac, 760V ac | ||
Mounting Type Radial | ||
Series VY1 | ||
Tolerance ±20% | ||
Dielectric Y5U | ||
Diameter 8mm | ||
Height 5mm | ||
Dimensions 8 (Dia.) x 5mm | ||
Temperature Coefficient -56% → +22ppm/°C | ||
Suppression Class X1, Y1 | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
Terminal Type Radial | ||
Capacitor Family Single Layer | ||
Dielectric Material Family Ceramic | ||
- COO (Country of Origin):
- CN
Vishay VY1 Series
Vishay VY1 series capacitors have a ceramic disc of which both sides are silver-plated, encapsulated in a flame retardant epoxy resin. The radial connection leads are made of tinned copper clad steel. The VY1 capacitors offer a high reliability and extended temperature range making them suitable for a wide range of applications.
Features
Singlelayer AC disc capacitors
Flame retardant
High reliability
Can pass 10 kV Pulses (10 per polarity)
Flame retardant
High reliability
Can pass 10 kV Pulses (10 per polarity)
Applications
Across-the-line
Line by-pass
Antenna coupling
Line by-pass
Antenna coupling
Standards
IEC 60384-14.4
X7R Dielectric
