TDK Single Layer Ceramic Capacitor 0.01 μF 2 kV, CK45, Through Hole 105 °C Max Op. Temp.
- RS Stock No.:
- 253-2845
- Mfr. Part No.:
- CK45-E3DD103ZYGNA
- Brand:
- TDK
Bulk discount available
Subtotal (1 tape of 10 units)*
£2.80
(exc. VAT)
£3.40
(inc. VAT)
Add 270 units to get free delivery
In Stock
- 1,120 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £0.28 | £2.80 |
| 100 - 190 | £0.234 | £2.34 |
| 200 - 390 | £0.187 | £1.87 |
| 400 + | £0.157 | £1.57 |
*price indicative
- RS Stock No.:
- 253-2845
- Mfr. Part No.:
- CK45-E3DD103ZYGNA
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Capacitance | 0.01μF | |
| Product Type | Single Layer Ceramic Capacitor | |
| Voltage | 2 kV | |
| Mount Type | Through Hole | |
| Packaging | Bulk | |
| Series | CK45 | |
| Automotive Standard | No | |

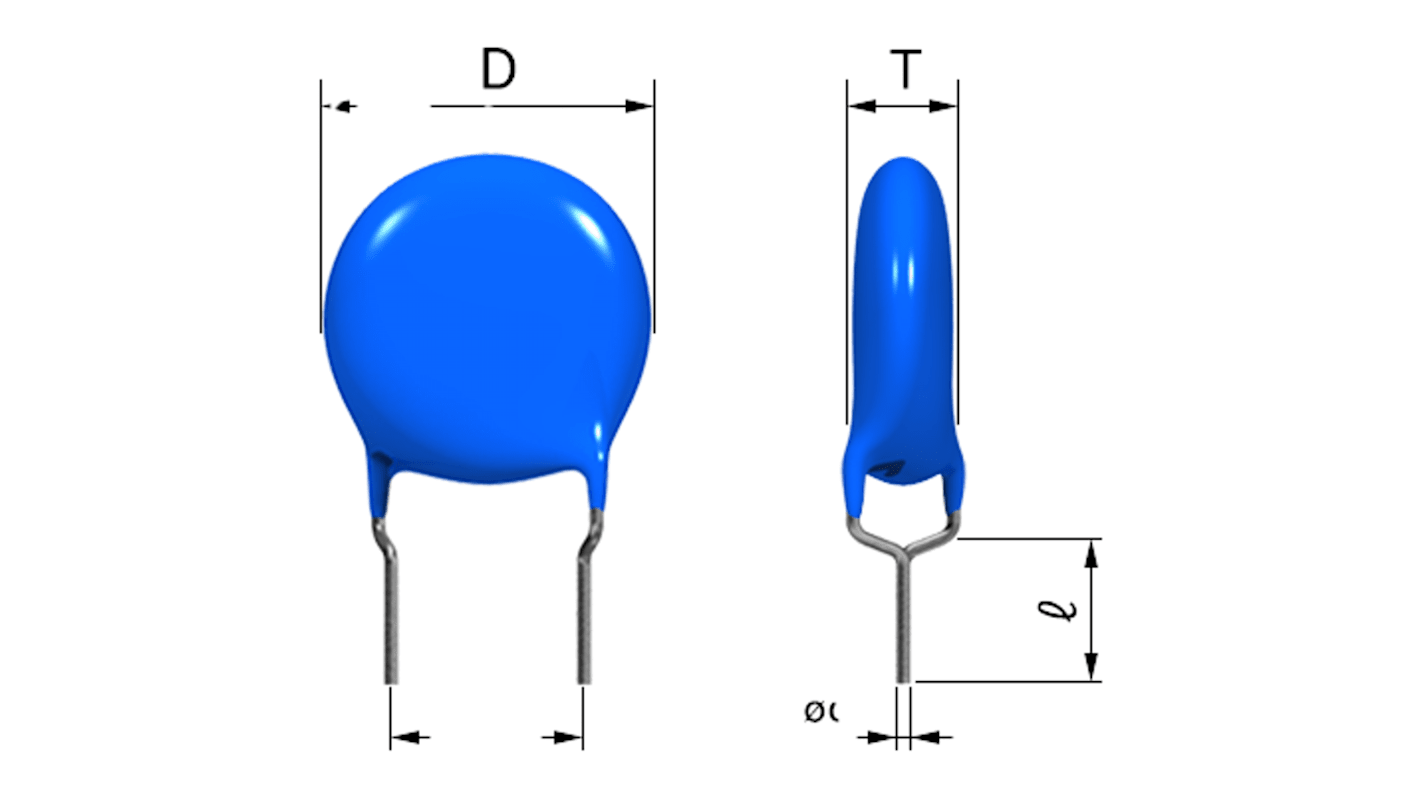

| Package/Case | Disc | |
| Minimum Operating Temperature | -25°C | |
| Pin Count | 2 | |
| Width | 5 mm | |
| Diameter | 14.5 mm | |
| Standards/Approvals | RoHS | |
| Maximum Operating Temperature | 105°C | |
| Terminal Type | Radial | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Capacitance 0.01μF | ||
Product Type Single Layer Ceramic Capacitor | ||
Voltage 2 kV | ||
Mount Type Through Hole | ||
Packaging Bulk | ||
Series CK45 | ||
Automotive Standard No | ||
Package/Case Disc | ||
Minimum Operating Temperature -25°C | ||
Pin Count 2 | ||
Width 5 mm | ||
Diameter 14.5 mm | ||
Standards/Approvals RoHS | ||
Maximum Operating Temperature 105°C | ||
Terminal Type Radial | ||
- COO (Country of Origin):
- CN
The TDK CK45 series disc type capacitor is a commercial grade high voltage ceramic capacitor. The disc type capacitor used in DC ballast.
Conform to RoHS directive due to lead(Pb) free of lead-wire and internal solder material
Compatible with halogen-free external resin coating
