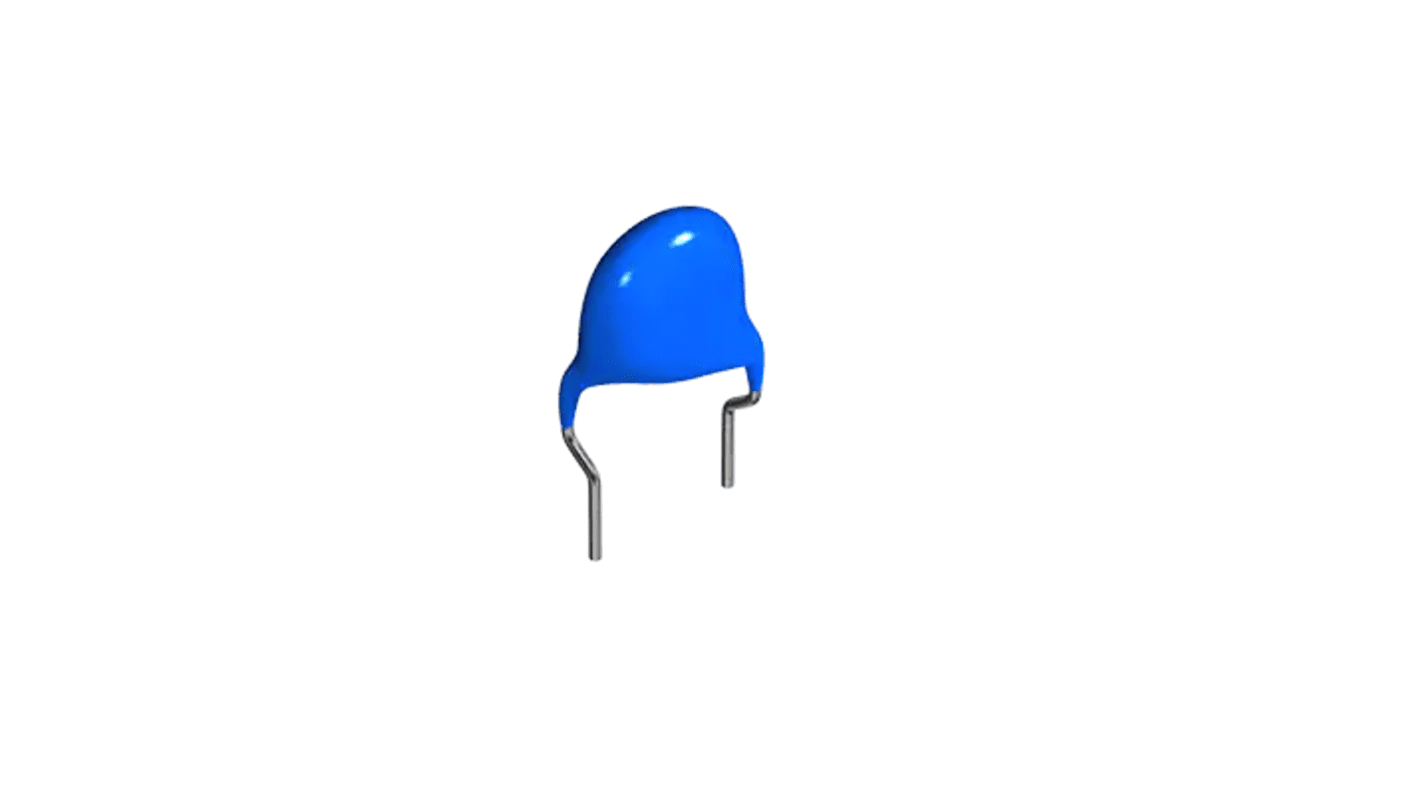

TDK Single Layer Ceramic Capacitor 10 nF 1kV dc 80 %, CK45, Push-in 105 °C Max Op. Temp.
- RS Stock No.:
- 242-7533
- Mfr. Part No.:
- CK45-E3AD103ZYGNA
- Brand:
- TDK
Subtotal (1 reel of 1000 units)*
£98.00
(exc. VAT)
£118.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1,000 unit(s) shipping from 09 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £0.098 | £98.00 |
*price indicative
- RS Stock No.:
- 242-7533
- Mfr. Part No.:
- CK45-E3AD103ZYGNA
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | Single Layer Ceramic Capacitor | |
| Capacitance | 10nF | |
| Voltage | 1kV dc | |
| Mount Type | Push-in | |
| Series | CK45 | |
| Packaging | Bulk | |
| Tolerance | 80 % | |
| Automotive Standard | No | |
| Package/Case | Disc | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -25°C | |
| Standards/Approvals | RoHS | |
| Width | 5mm | |
| Diameter | 11mm | |
| Maximum Operating Temperature | 105°C | |
| Terminal Type | Radial | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type Single Layer Ceramic Capacitor | ||
Capacitance 10nF | ||
Voltage 1kV dc | ||
Mount Type Push-in | ||
Series CK45 | ||
Packaging Bulk | ||
Tolerance 80 % | ||
Automotive Standard No | ||
Package/Case Disc | ||
Pin Count 2 | ||
Minimum Operating Temperature -25°C | ||
Standards/Approvals RoHS | ||
Width 5mm | ||
Diameter 11mm | ||
Maximum Operating Temperature 105°C | ||
Terminal Type Radial | ||
The TDK high voltage, commercial grade disc type ceramic capacitor with leads. It is used in application such as DC ballast.
Conform to RoHS directive due to lead free of lead wire and internal solder material
Compatible with halogen-free external resin coating
