Vishay Single Layer Ceramic Capacitor (SLCC) 680pF 500V ac ±20% Y5U Dielectric, AY1, Through Hole +125°C Max Op. Temp.

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
183-7375
Mfr. Part No.:
AY1681M35Y5UC63L0
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Capacitance

680pF

Voltage

500V ac

Mounting Type

Through Hole

Series

AY1

Tolerance

±20%

Automotive Standard

AEC-Q200

Dielectric

Y5U

Diameter

9mm

Height

7mm

Dimensions

9 Dia. x 7mm

Suppression Class

X1, Y1

Dissipation Factor

5%

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+125°C

Tolerance Minus

-20%

Tolerance Plus

+20%

Dielectric Material Family

Ceramic

Terminal Type

Radial

COO (Country of Origin):
CN

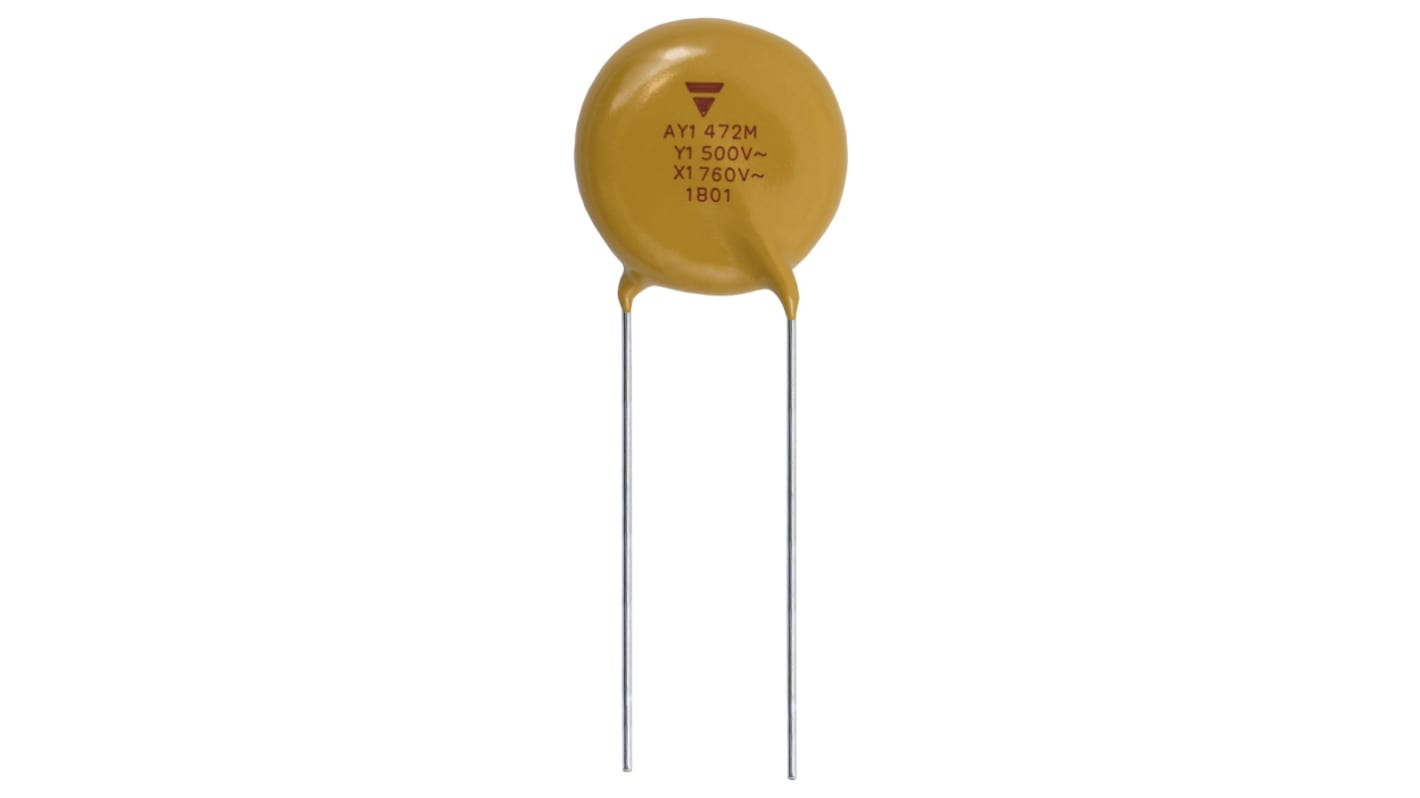

The capacitor consists of a ceramic disc which is copper plated on both sides. Connection leads are made of tin plated copper-clad steel having a diameter of 0.6 mm or 0.8 mm. The capacitors may be supplied with straight leads having a lead spacing of 10.0 mm and 12.5 mm. Encapsulation is made of flame retardant epoxy resin.

Withstands 85 / 85 / 1000 h test
Can pass 1000 temperature cycles (from -55 °C to +125 °C)
Can pass 10 kV pulses (10 per polarity)
Complying with IEC 60384-14 4th edition
High reliability
Single layer AC disc safety capacitors
PPAP (AIAG version) is available
APPLICATIONS
Application as Y capacitors for AC line filter and primary-secondary coupling on battery chargers for PHEV/EV
Application as filter capacitors on DC/DC converters for PHEV/EV and HEV
