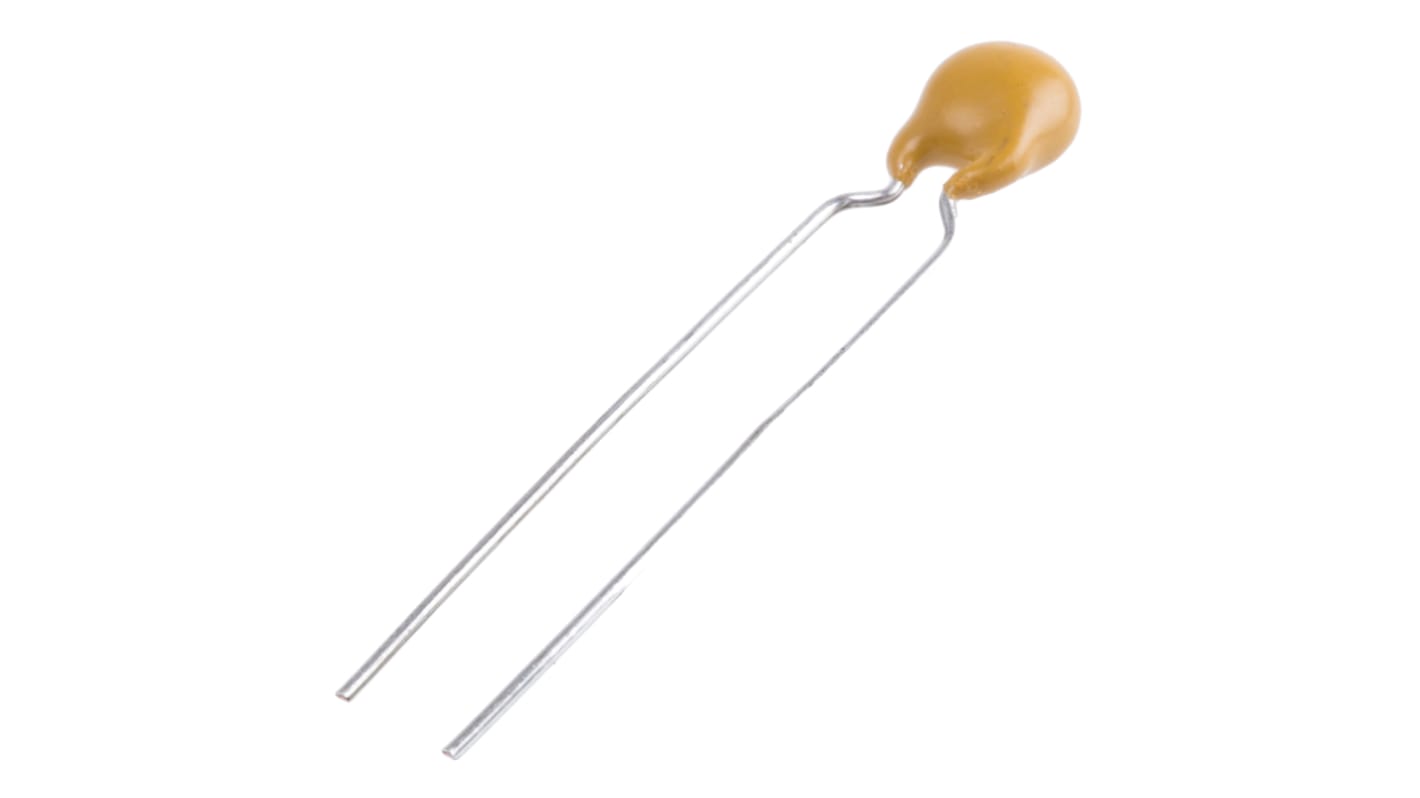

Vishay Single Layer Ceramic Capacitor (SLCC) 100pF 1kV dc ±10% S3N Dielectric, F, Through Hole +125°C Max Op. Temp.
- RS Stock No.:
- 173-0325
- Mfr. Part No.:
- F101K25S3NN63J5R
- Brand:
- Vishay
Bulk discount available
Subtotal (1 box of 1000 units)*
£49.00
(exc. VAT)
£59.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,000 unit(s) ready to ship
- Plus 1,000 unit(s) shipping from 13 February 2026
- Plus 999,997,000 unit(s) shipping from 17 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 1000 - 4000 | £0.049 | £49.00 |
| 5000 - 9000 | £0.046 | £46.00 |
| 10000 - 24000 | £0.044 | £44.00 |
| 25000 + | £0.041 | £41.00 |
*price indicative
- RS Stock No.:
- 173-0325
- Mfr. Part No.:
- F101K25S3NN63J5R
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 100pF | |
| Voltage | 1kV dc | |
| Mounting Type | Through Hole | |
| Series | F | |
| Tolerance | ±10% | |
| Dielectric | S3N | |
| Diameter | 6.5mm | |
| Temperature Coefficient | ±15% | |
| Suppression Class | Class I | |
| Maximum Operating Temperature | +125°C | |
| Capacitor Family | Single Layer | |
| Minimum Operating Temperature | -30°C | |
| Dielectric Material Family | Ceramic | |
| Terminal Type | Radial | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 100pF | ||
Voltage 1kV dc | ||
Mounting Type Through Hole | ||
Series F | ||
Tolerance ±10% | ||
Dielectric S3N | ||
Diameter 6.5mm | ||
Temperature Coefficient ±15% | ||
Suppression Class Class I | ||
Maximum Operating Temperature +125°C | ||
Capacitor Family Single Layer | ||
Minimum Operating Temperature -30°C | ||
Dielectric Material Family Ceramic | ||
Terminal Type Radial | ||
Vishay F Series Ceramic Disc Capacitors
Ceramic class 1 capacitors S3N dielectric for SMPS, high frequency ballast and snubber circuits
Design
The capacitors consist of a ceramic disc both sides of which are silver-plated. Connection leads are made of tinned copper having a diameter of 0.6 mm or 0.8 mm. The capacitors are supplied with kinked leads and lead spacings of 5 mm or 7.5 mm and 10 mm. Encapsulation is made of epoxy-resin, flammable resistant in accordance with “UL 94 V-0”
Features
- High reliability
- Low losses
- High capacitance in small size
- Kinked leads
- Low losses
- High capacitance in small size
- Kinked leads
Applications
In electronic circuits where low losses and high capacitance per volume are essential, for example:
- SMPS
- HF ballast
- Snubber and high voltage circuits
- SMPS
- HF ballast
- Snubber and high voltage circuits
Standards
IEC 60384-9, EIA 198
