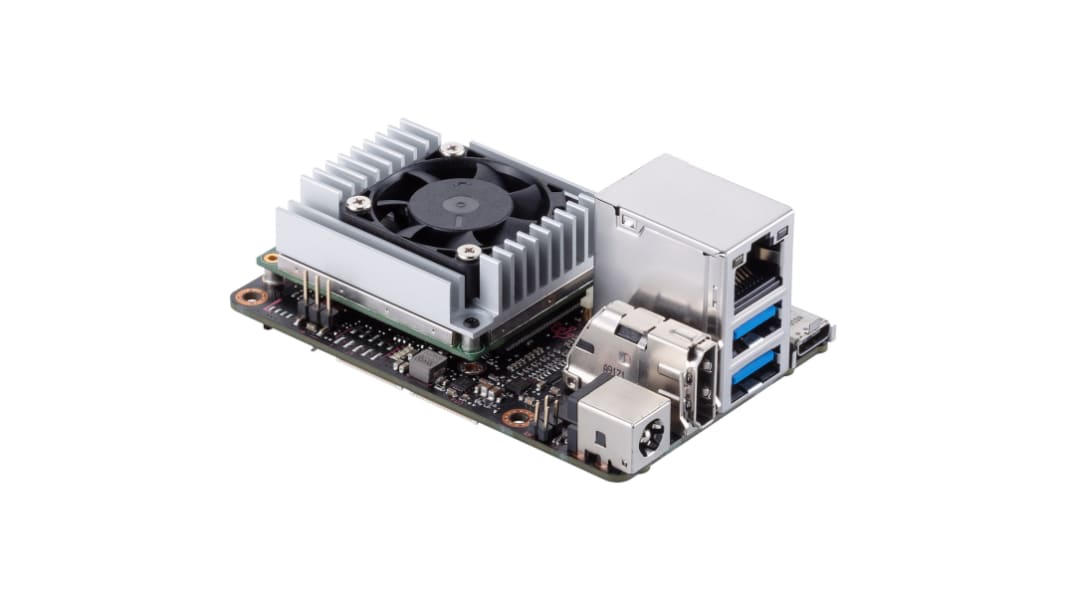

Asus Tinker Edge T Single Board Computer

View all Single Board Computers

Subtotal (1 unit)*

£127.14

(exc. VAT)

£152.57

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 12 unit(s) ready to ship
  • Plus 999,999,987 unit(s) shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£127.14

*price indicative

RS Stock No.:
265-7192
Mfr. Part No.:
90ME0140-M0EAY0
Brand:
Asus
Find similar products by selecting one or more attributes.
Select all

Brand

Asus

Product Name

Tinker Edge T Single Board Computer

COO (Country of Origin):
CN
Tinker Edge T is a small and powerful Single Board Computer (SBC) from Asus that boasts a NXP i.MX 8M System-on-Chip, Quadcore ARM Cortex processor and integrated GC7000 Lite Graphics. It benefits from Google Edge TPU MLU accelerator coprocessor, a Neural Network Accelerator Processor (NPU) that runs Machine Learning (ML) inference in a high-efficiency manner, and the NPU is optimised for handling neural networks, bringing artificial intelligence (AI) from the cloud to local devices. It supports Linux Mendel OS.

Ultimate performance for edge devices


Tinker Edge T can perform up to 4 TOPS (tera-operations per second) with the built-in Edge TPU AI accelerator, using only 2 watts at maximum loading. The onboard NPU provides high-performance ML inferencing.

The Edge TPU is optimised for TensorFlow Lite models, meaning Tinker Edge T can run and easily compile common ML models. Tinker Edge T is highly efficient compared to desktop-grade x86 CPU, when performing inference across many popular models.

Powerful processor perfect for advanced applications


Tinker Edge T benefits from the incredible NXP i.MX 8M SoC, combined with a Quadcore Arm Cortex processor and Google Edge TPU Ml accelerator coprocessor, it's a powerful board that really packs a punch.

Advanced power design


Supports dual 12V∼19V wide-range DC-in

Power-protection design

More connectivity options for developers


Dual MIPI CSI for stereoscopic applications

Compatible with popular DSI touch panel

Enhanced Software Experience


Machine Learning Developer Tools

OS Flash Tool

Intuitive Interface

Technical Specifications


SoC: NXP i.MX 8M

CPU: Quad-core ARM Cortex-A53 @ 1.5GHz

GPU: Integrated GC70000 Lite Graphics

NN Processor: Google Edge TPU Coprocessor

Display: 1x HDMI up to 1080p/60Hz, *HDMI CEC Hardware Ready

Camera: 2x MIPI CSI-2 (4 lane)

Memory Size: LPDDR4 1GB

Storage: Onboard 8GB eMMC, 1x Micro SD (TF) Card Slot

Connectivity: 1x GB LAN

USB: 2x USB 3.2 Gen1 Ports, 1x USB-C OTG Port

Internal Headers: 1x 40-pin GPIO Header, 1x 2-pin Reset-Button Header

Power Connector:12V∼19V DC-in

OS Support: Linux Mendel

Dimensions: 85 x 56mm
