Allen Bradley 856T Series Red Flashing, Steady Effect Beacon Tower, LED Bulb 24V ac/dc, AC/DC, IP66, IP67
- RS Stock No.:
- 183-4394
- Distrelec Article No.:
- 302-27-798
- Mfr. Part No.:
- 856T-BGB4
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£117.70
(exc. VAT)
£141.24
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 02 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £117.70 |
*price indicative
- RS Stock No.:
- 183-4394
- Distrelec Article No.:
- 302-27-798
- Mfr. Part No.:
- 856T-BGB4
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Series | 856T | |
| Product Type | Beacon Tower | |
| Minimum Sound Level | 85dB | |
| Component Type | Beacon | |
| Multifunction | Yes | |
| Current Type | AC/DC | |
| Mount Type | Base | |
| Current Consumption | 57mA | |
| Sounder Type | Horn | |
| Light Effect | Flashing, Steady | |
| Lens Colour | Red | |
| Lamp Included | Yes | |
| Terminal Type | Plug-In | |
| Bulb Type | LED | |
| Maximum Supply Voltage | 24V ac/dc | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 70°C | |
| Maximum Sound Level | 105dB | |
| Height | 80mm | |
| Standards/Approvals | CE, RoHS | |
| Hazardous Area Certification | No | |
| IP Rating | IP66, IP67 | |
| Base Diameter | 70mm | |
| Housing Colour | Black | |
| Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Series 856T | ||
Product Type Beacon Tower | ||
Minimum Sound Level 85dB | ||
Component Type Beacon | ||
Multifunction Yes | ||
Current Type AC/DC | ||
Mount Type Base | ||
Current Consumption 57mA | ||
Sounder Type Horn | ||
Light Effect Flashing, Steady | ||
Lens Colour Red | ||
Lamp Included Yes | ||
Terminal Type Plug-In | ||
Bulb Type LED | ||
Maximum Supply Voltage 24V ac/dc | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 70°C | ||
Maximum Sound Level 105dB | ||
Height 80mm | ||
Standards/Approvals CE, RoHS | ||
Hazardous Area Certification No | ||
IP Rating IP66, IP67 | ||
Base Diameter 70mm | ||
Housing Colour Black | ||
- COO (Country of Origin):
- AT

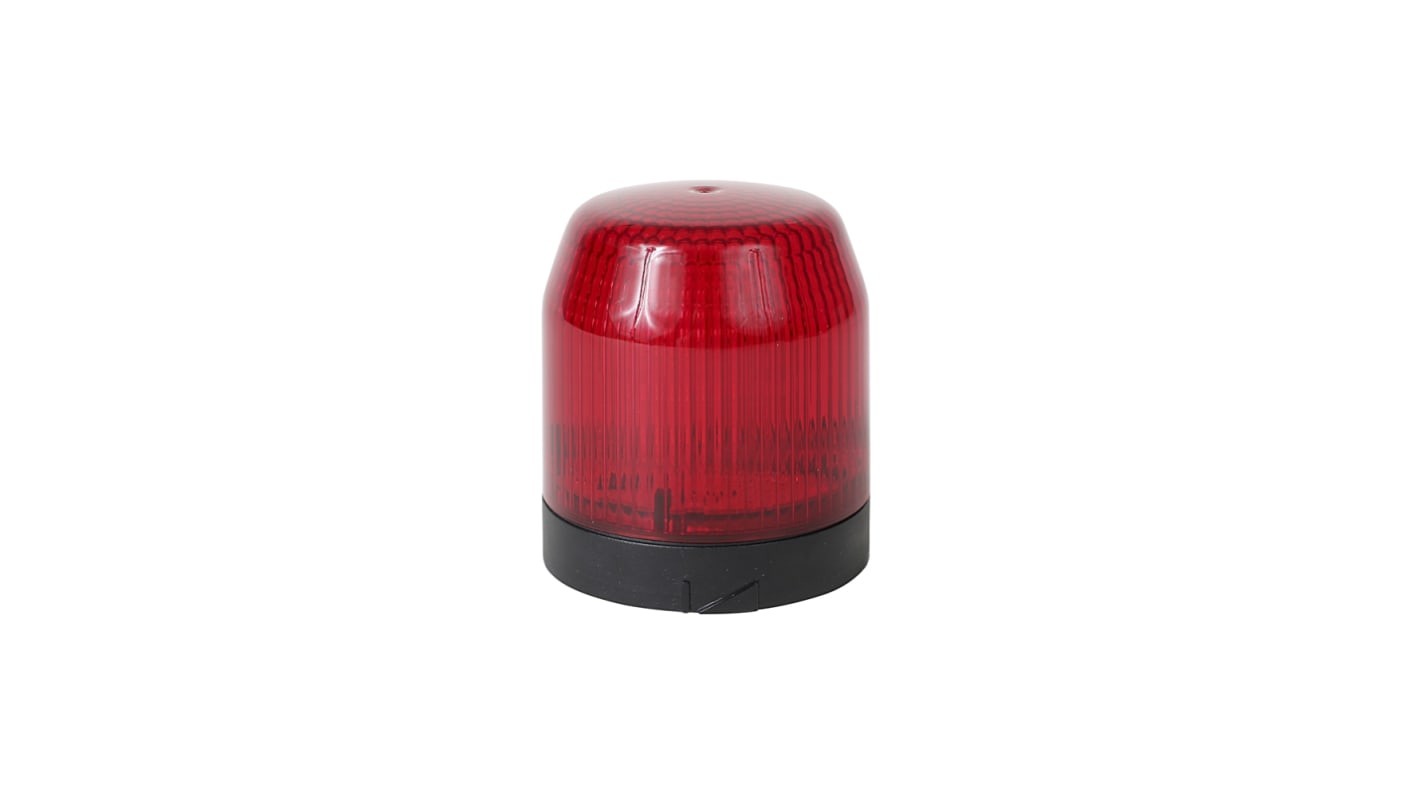

Allen BradleyBeacon Tower, Red Light Module, 80mm Height - 856T-BGB4
Alert your workforce to potential hazards with this red light module from Rockwell Automation's Allen Bradley series. Thanks to its IP67 rating, you can rely on this product to be fully protected against high-pressure jets from all directions, so it's a safe choice for areas where it's likely to come into contact with liquid. Common applications include the construction industry, control-panel warning lights and recording studios. Thanks to the unit's mechanical durability of more than 40,000 hours, you can expect a long service life.
• 108mA nominal current for energy-efficiency
• 7200mcd intensity for high visibility at a distance
• Broad operating temperature range between -30°C and +70°C for use in demanding environments
Standards and Certifications
• c-UL-us
• UL 60947-5-1
• CSA C22.2 No. 14
• EN 50581
856T 70 mm Light Modules, Black Housing colour, Steady/Flashing Non-Stackable Beacon Style, Red Output colour, Standard Lens Finish
Does this beacon have multiple settings?
Yes. It offers a choice of two outputs – steady state or flashing. During normal operation, a constant signal is usually enough to warn personnel of danger, but for immediate threats, you can use the 2Hz flashing frequency to draw attention quickly. An integrated DIP switch makes it easy to move between the two as needed.
