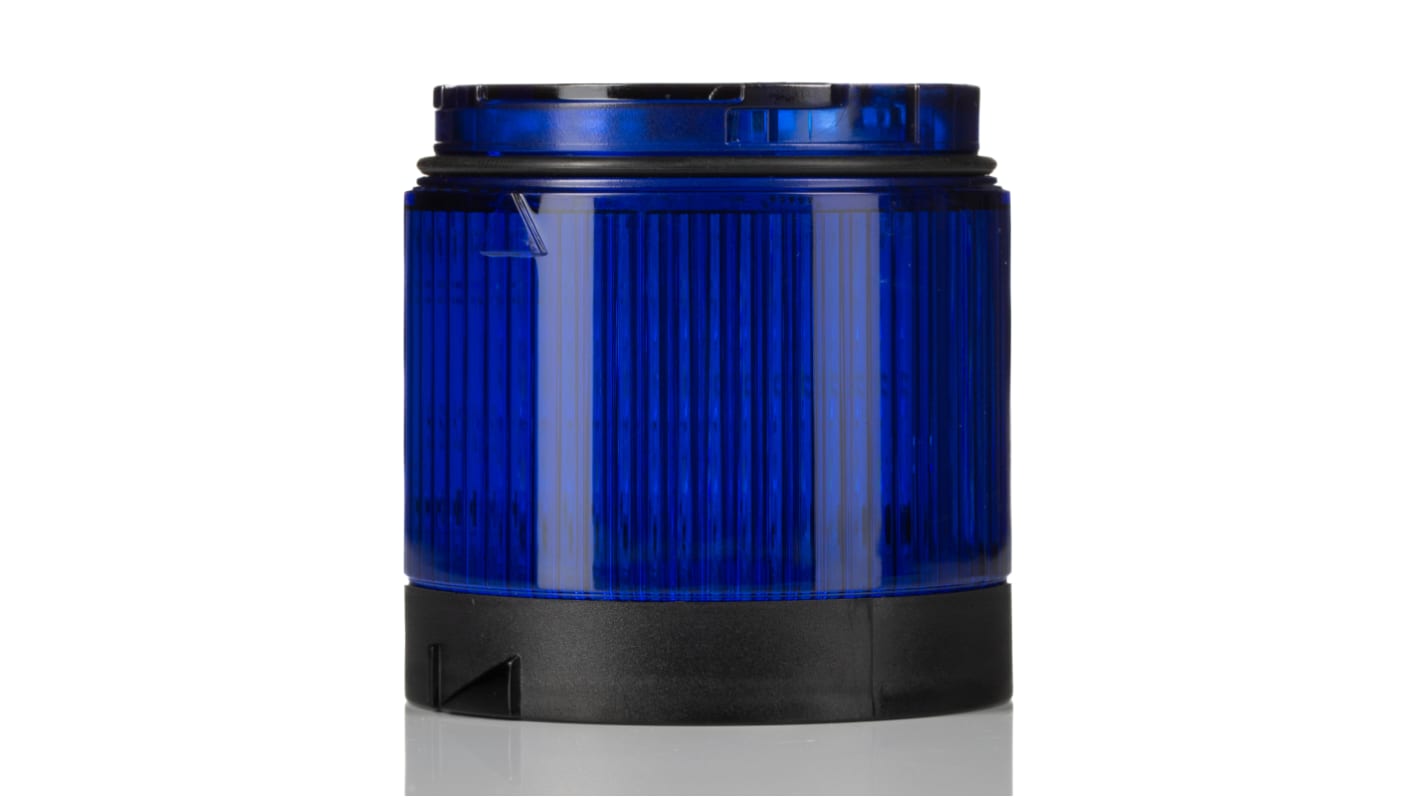

Allen Bradley 856T Series Blue Steady, Flashing, Strobe Effect Beacon Tower, LED Bulb 24V ac/dc, AC/DC, IP67, IP66
- RS Stock No.:
- 183-4384
- Distrelec Article No.:
- 302-27-793
- Mfr. Part No.:
- 856T-BB6
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£137.61
(exc. VAT)
£165.13
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £137.61 |
*price indicative
- RS Stock No.:
- 183-4384
- Distrelec Article No.:
- 302-27-793
- Mfr. Part No.:
- 856T-BB6
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Product Type | Beacon Tower | |
| Series | 856T | |
| Minimum Sound Level | 85dB | |
| Component Type | Beacon | |
| Multifunction | Yes | |
| Current Type | AC/DC | |
| Light Effect | Steady, Flashing, Strobe | |
| Mount Type | Base | |
| Current Consumption | 57mA | |
| Sounder Type | Horn | |
| Lens Colour | Blue | |
| Lamp Included | Yes | |
| Bulb Type | LED | |
| Terminal Type | Plug-In | |
| Maximum Supply Voltage | 24V ac/dc | |
| Minimum Operating Temperature | -30°C | |
| Maximum Sound Level | 105dB | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CE, RoHS | |
| Height | 80mm | |
| Hazardous Area Certification | No | |
| IP Rating | IP67, IP66 | |
| Base Diameter | 70mm | |
| Housing Colour | Black | |
| Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Product Type Beacon Tower | ||
Series 856T | ||
Minimum Sound Level 85dB | ||
Component Type Beacon | ||
Multifunction Yes | ||
Current Type AC/DC | ||
Light Effect Steady, Flashing, Strobe | ||
Mount Type Base | ||
Current Consumption 57mA | ||
Sounder Type Horn | ||
Lens Colour Blue | ||
Lamp Included Yes | ||
Bulb Type LED | ||
Terminal Type Plug-In | ||
Maximum Supply Voltage 24V ac/dc | ||
Minimum Operating Temperature -30°C | ||
Maximum Sound Level 105dB | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CE, RoHS | ||
Height 80mm | ||
Hazardous Area Certification No | ||
IP Rating IP67, IP66 | ||
Base Diameter 70mm | ||
Housing Colour Black | ||
- COO (Country of Origin):
- AT
Allen Bradley Beacon Tower, 70mm Base Diameter, Blue Lens - 856T-BB6
Use this beacon tower light unit from Rockwell Automation's Allen Bradley series when you need a reliable visual signal in your industrial workplace. It's blue, which generally indicates a gradual powering down or a change in machine processes. The device offers steady, flashing, single-strobe and double-strobe light effects. You can easily cycle through them via a DIP switch to find the one to suit your needs. With a broad operating temperature range between -30°C and +70°C, this component is suitable for use in demanding environments. A compact base diameter of 70mm means it won't take up much space on your panel.
• Supply voltage of 24V AC/DC for use in low-voltage applications
• IP67 rating indicates beacon is dustproof and resistant to immersion in up to a metre of water for 30 minutes
• Low power consumption of 100mA for energy efficiency and minimal heat dissipation
Standards and Certifications
• EN 50581: 2012
• WEEE
• CE Marked
• UL 60947-5-1
856T 70 mm Light Modules, Black Housing colour, Multi-Function LED Steady/Flashing/Strobe 1/Strobe 2, Blue Output colour, Standard Lens Finish
How long will this device operate for?
This device has a mechanical lifespan of over 60,000 hours, so it delivers long-lasting performance.
