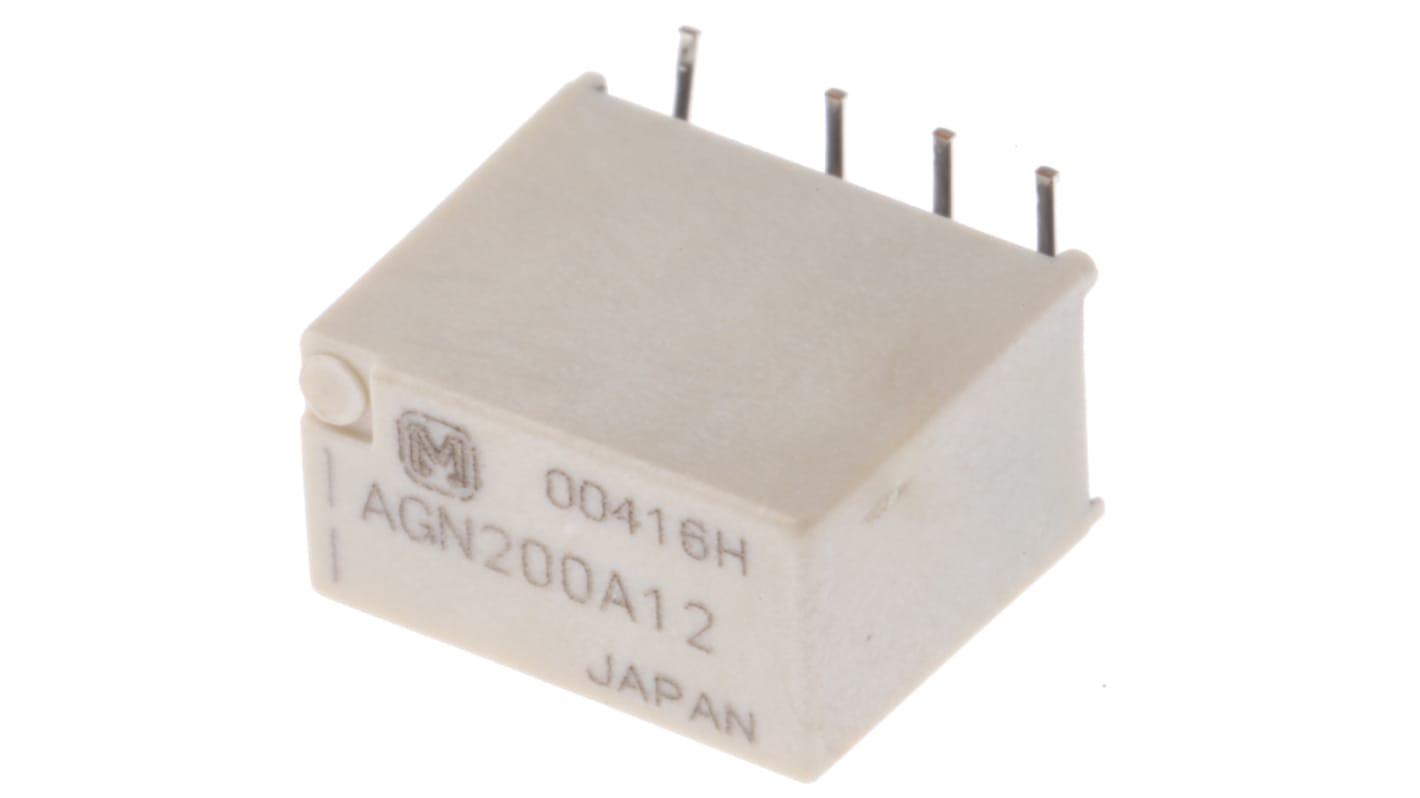

Panasonic Surface Mount Signal Relay, 12V dc Coil, 1A Switching Current, DPDT

RS Stock No.:: 699-5853
Mfr. Part No.:: AGN200A12
Brand:: Panasonic

Panasonic Surface Mount Signal Relay, 12V dc Coil, 1A Switching Current, DPDT

28 In stock - FREE next working day delivery available

Price Each

£3.41

(exc. VAT)

£4.09

(inc. VAT)

Units	Per unit
1 - 9	£3.41
10 - 24	£3.24
25 - 49	£3.07
50 - 99	£2.90
100 +	£2.73

RS Stock No.:: 699-5853
Mfr. Part No.:: AGN200A12
Brand:: Panasonic

GN RELAYS (AGN) Data Sheet

Attribute	Value
Coil Voltage	12V dc
Contact Configuration	DPDT
Mounting Type	Surface Mount
Maximum Switching Current AC	0.3 A
Maximum Switching Current DC	1 A
Maximum Switching Voltage AC	125V
Maximum Switching Voltage DC	110V
Maximum Switching Power DC	30 W
Series	FTR-B3
Length	10.9mm
Latching	No
Depth	5.7mm
Height	9mm
Dimensions	10 x 9 x 5.7mm
Terminal Type	PCB Pin
Number of Poles	2
Application	Power
Switching Current	1A
Life	100000 (Electrical) cycles, 50000000 (Mechanical) cycles
Maximum Switching Power AC	37.5VA
Coil Resistance	1028Ω
Maximum Operating Temperature	+85°C
Electrical Life	100000 Operations Cycles
Isolation Coil To Contact	1.5kV rms
Features	Compact Slim Body Saves Space, Increased Packaging Density, Sealed Construction allows Automatic Washing.
Coil Power	140mW
Contact Material	Au Plated AgPd
Operating Temperature Range	-40 → +85°C
Minimum Operating Temperature	-40°C
