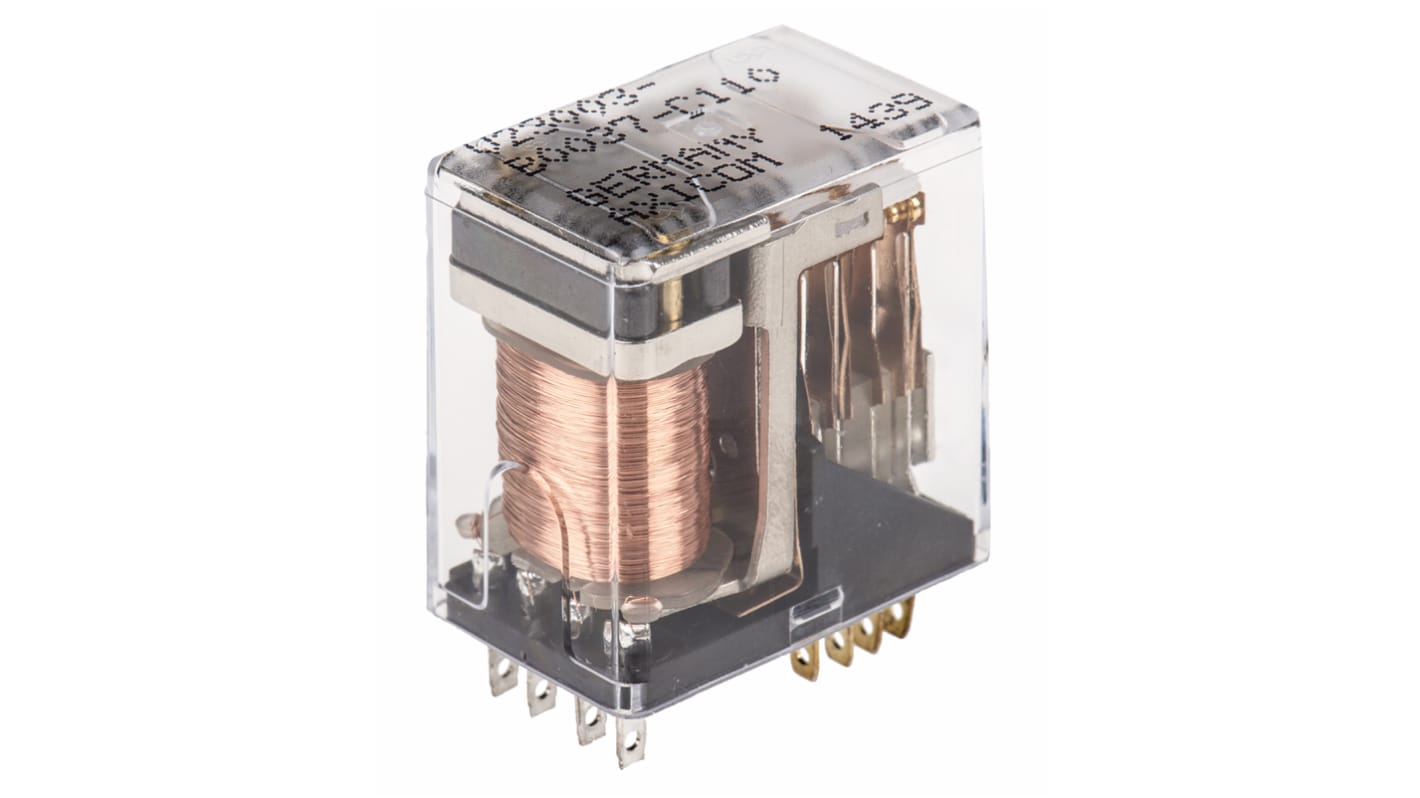

TE Connectivity Plug In Latching Signal Relay, 24V dc Coil, 3A Switching Current, 4PDT

View all Signal Relays
Bulk discount available

Subtotal (1 unit)*

£318.50

(exc. VAT)

£382.20

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 21 unit(s), ready to ship
Units
Per unit
1 - 1£318.50
2 +£283.46

*price indicative

Packaging Options:
RS Stock No.:
680-4259
Mfr. Part No.:
V23003B 37C110
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Coil Voltage

24V dc

Contact Configuration

4PDT

Mounting Type

Plug In

Maximum Switching Current AC

3 A

Maximum Switching Current DC

3 A

Maximum Switching Voltage AC

125V ac

Maximum Switching Voltage DC

150V dc

Maximum Switching Power DC

70 W

Length

30mm

Latching

Yes

Depth

19mm

Height

30mm

Dimensions

30 x 19 x 30mm

Terminal Type

Plug In

Application

Signal

Number of Poles

4

Switching Current

3A

Maximum Operating Temperature

+70°C

Isolation Coil To Contact

500V rms

Minimum Operating Temperature

-40°C

Coil Power

1.44W

Contact Material

Gold Plated

Maximum Switching Power AC

50VA

Operating Temperature Range

-40 → +70°C

Coil Resistance

340 Ω, 400 Ω

Life

10000000 (Mechanical) operations

COO (Country of Origin):
DE

P Series cradle relay, bistable


Polarised DC coil, bistable
Plug-in and for fixed installation
Two or four-pin toggling
Dustproof


Note:

Normal position of NOC (1) open, NCC (2) closed
If positive voltage on connection 3 or 4, the relay assumes the normal position
