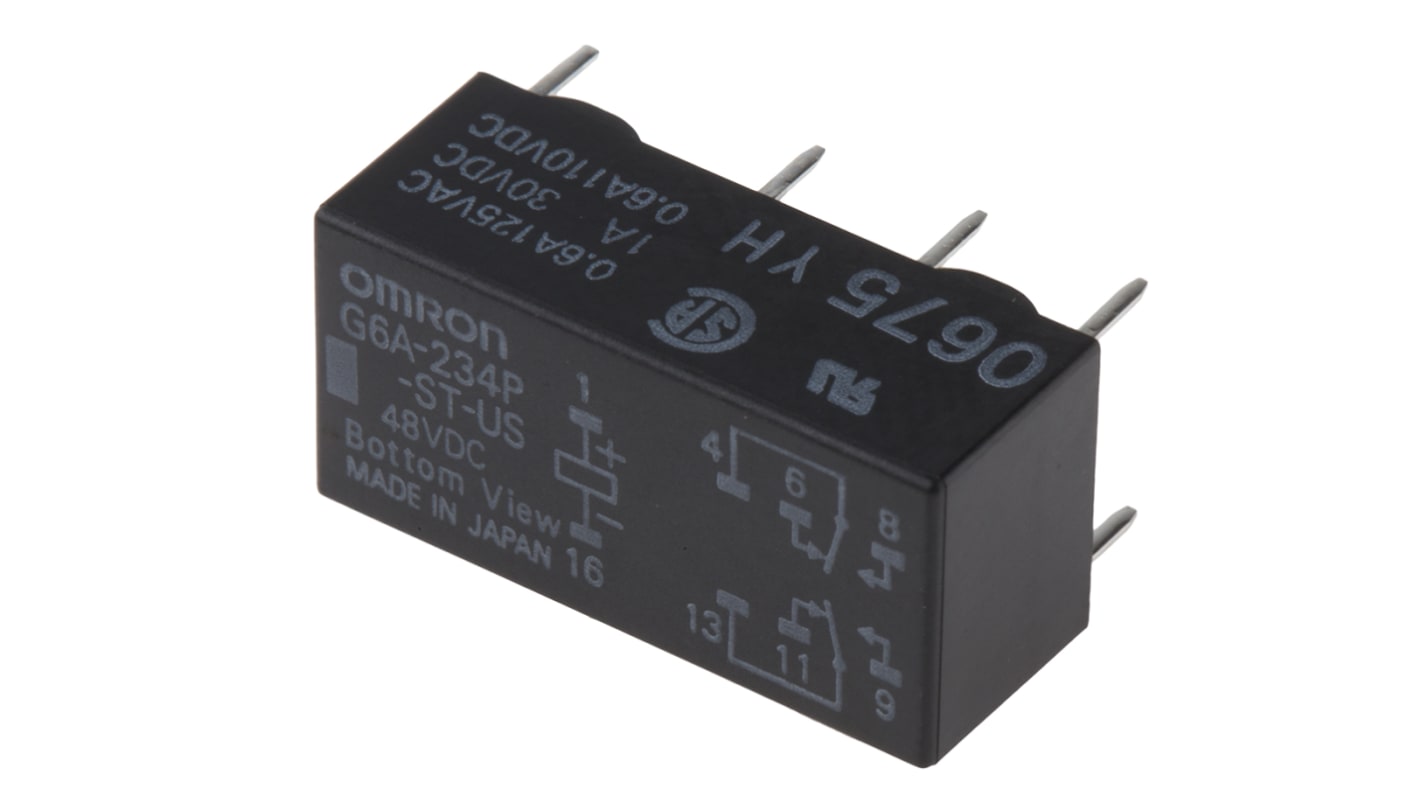

Omron PCB Mount Signal Relay, 48V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 368-3888
- Mfr. Part No.:
- G6A-234P-ST-US DC48
- Brand:
- Omron
Available to back order for despatch 19/09/2024
Added
Price Each
£5.53
(exc. VAT)
£6.64
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £5.53 |
| 25 - 99 | £5.02 |
| 100 - 249 | £4.60 |
| 250 - 499 | £4.29 |
| 500 + | £4.09 |
- RS Stock No.:
- 368-3888
- Mfr. Part No.:
- G6A-234P-ST-US DC48
- Brand:
- Omron
Technical Reference
Legislation and Compliance
Product Details
G6A Series DPCO
Fully sealed
Low magnetic leakage
Impulse withstand voltage of 1500V
Ideal for telecommunications equipment
Low magnetic leakage
Impulse withstand voltage of 1500V
Ideal for telecommunications equipment
Approvals
UL, CSA
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 48V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Maximum Switching Current AC | 2 A |
| Maximum Switching Current DC | 1 A |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 220V |
| Series | Axicom P2 |
| Maximum Switching Power DC | 60 W |
| Latching | No |
| Length | 20.2mm |
| Depth | 10.1mm |
| Height | 8mm |
| Dimensions | 20.2 x 8 x 10.1mm |
| Terminal Type | PCB Pin |
| Number of Poles | 2 |
| Switching Current | 2A |
| Application | Power |
| Coil Power | 235mW |
| Minimum Operating Temperature | -40°C |
| Features | Resistant To Electromagnetic Interference, Conforms to FCC Part Requirements, Bifurcated Contacts |
| Isolation Coil To Contact | 1.5kV rms |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -40 → +70°C |
| Coil Resistance | 9700Ω |
| Contact Material | Gold Plated |
| Maximum Switching Power AC | 62.5VA |
