MPN

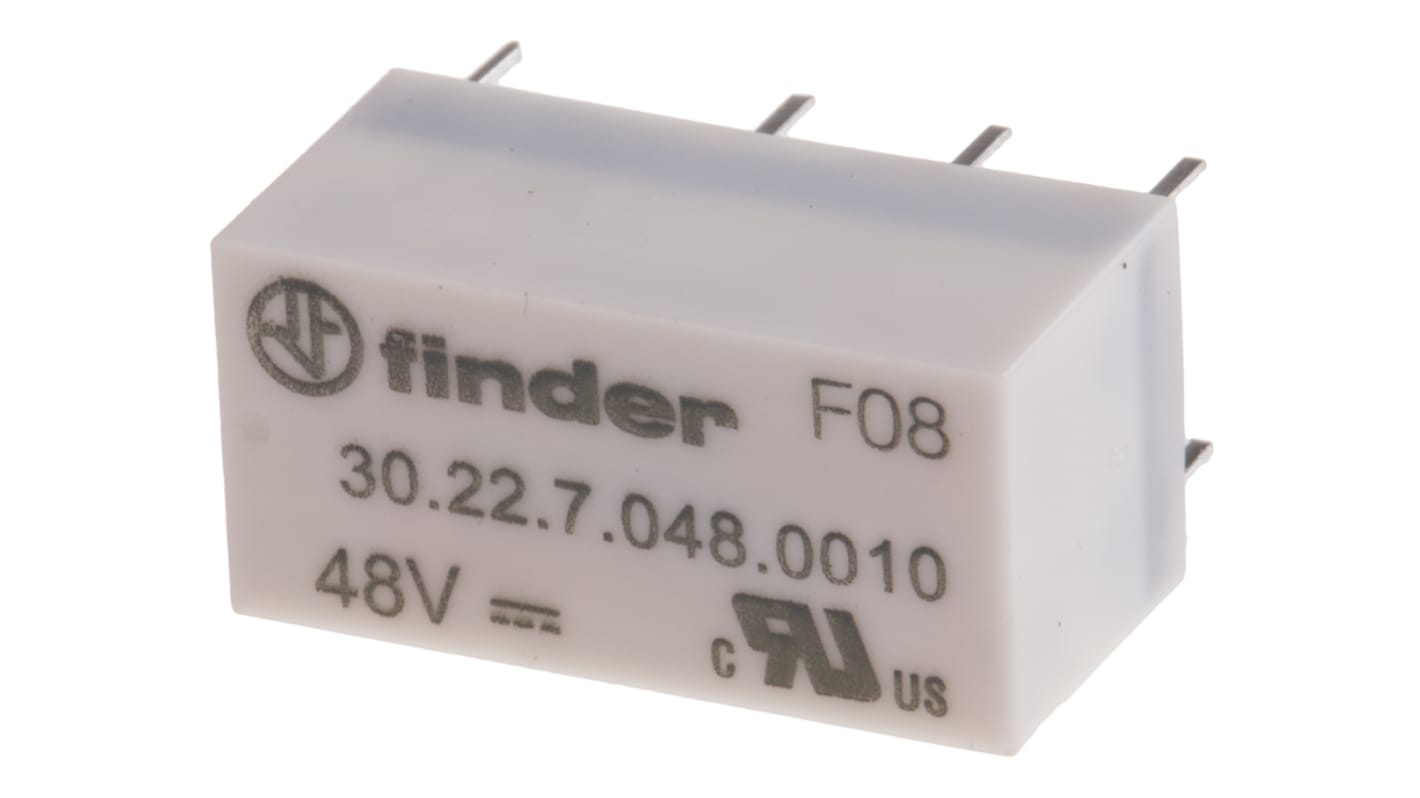

Finder PCB Mount Signal Relay, 48V dc Coil, 2A Switching Current, DPDT

RS Stock No.:: 492-6619
Mfr. Part No.:: 30.22.7.048.0010
Brand:: Finder

Finder PCB Mount Signal Relay, 48V dc Coil, 2A Switching Current, DPDT

Save 34% when you buy 250 units

Subtotal (1 unit)*

£9.58

(exc. VAT)

£11.50

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

1 unit(s) shipping from 07 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 24	£9.58
25 - 49	£8.43
50 - 99	£8.15
100 - 249	£7.47
250 +	£6.23

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Omron PCB Mount Signal Relay, 48V dc Coil, 2A Switching Current, DPDT

RS Stock No.: 368-3888

Each

£5.53

(exc. VAT)

£6.64

(inc. VAT)

RS Stock No.:: 492-6619
Mfr. Part No.:: 30.22.7.048.0010
Brand:: Finder

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	48V dc
	Contact Configuration	DPDT
	Mounting Type	PCB Mount
	Maximum Switching Current AC	3 A
	Number of Coils	Single
	Maximum Switching Voltage AC	125V ac
	Maximum Switching Voltage DC	48V dc
	Series	30
	Maximum Switching Power DC	60 W
	Latching	No
	Length	14.5mm
	Depth	7.2mm
	Height	9.8mm
	Terminal Type	Through Hole
	Number of Poles	2
	Switching Current	2A
	Standards Met	cURus
	Coil Resistance	178Ω
	Electrical Life	100000 Cycles
	Coil Power	200mW
	Relay Switching Classification	Subminiature DIL Relay
	Contact Material	Gold Plated
	Operating Temperature Range	-40 → +85°C
	Life	10000000 (Electrical) cycles, 10000000 (Mechanical) cycles
	Maximum Switching Power AC	62.5VA
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+85°C
	Isolation Coil To Contact	1.5kV ac

	Select all
	Brand Finder
	Coil Voltage 48V dc
	Contact Configuration DPDT
	Mounting Type PCB Mount
	Maximum Switching Current AC 3 A
	Number of Coils Single
	Maximum Switching Voltage AC 125V ac
	Maximum Switching Voltage DC 48V dc
	Series 30
	Maximum Switching Power DC 60 W
	Latching No
	Length 14.5mm
	Depth 7.2mm
	Height 9.8mm
	Terminal Type Through Hole
	Number of Poles 2
	Switching Current 2A
	Standards Met cURus
	Coil Resistance 178Ω
	Electrical Life 100000 Cycles
	Coil Power 200mW
	Relay Switching Classification Subminiature DIL Relay
	Contact Material Gold Plated
	Operating Temperature Range -40 → +85°C
	Life 10000000 (Electrical) cycles, 10000000 (Mechanical) cycles
	Maximum Switching Power AC 62.5VA
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +85°C
	Isolation Coil To Contact 1.5kV ac

Finder Series 30 Signal Relay, 48V DC Coil Voltage, DPDT Contact Configuration - 30.22.7.048.0010

This signal relay is a subminiature DPDT relay designed for PCB mounting, featuring a compact design with dimensions of 14.5mm x 7.2mm x 9.8mm. It operates with a coil voltage of 48V DC and is ideal for a variety of applications requiring low-level switching. With robust specifications, including a maximum switching capacity of 3A and a highly sensitive 200 mW coil power, it can efficiently manage electrical loads in various environments.

Features & Benefits

• Reliable contact configuration with DPDT for versatile applications
• Low coil power consumption enhances energy efficiency
• Gold plated contacts improve durability and low-level switching performance
• Wide operating temperature range of -40°C to +85°C ensures reliability
• Isolation rating of 1.5 kV AC enhances safety and performance
• Engineered to withstand 100 million mechanical cycles for longevity

Applications

• Used in electronic circuit boards for precise control
• Commonly found in Hi-Fi systems for signal management
• Applied in printers for efficient operational control
• Utilised in toys to enable electronic functions
• Employed in medical equipment for reliable performance
• Incorporated in hoists and cranes for safe operation
• Suitable for door and gate openers providing reliable access control

What is the importance of gold plated contacts in a relay?

Gold plated contacts provide superior conductivity and corrosion resistance, making the relay suitable for low-level switching applications, which ensures reliable operation over time.

How does the coil power affect the relay’s performance?

The relay features a low coil power consumption of 200 mW, which helps reduce energy usage while maintaining operational reliability and responsiveness during actuation.

What is the significance of the wide operating temperature range?

A wide operating temperature range from -40°C to +85°C makes it suitable for diverse environments, ensuring consistent performance in both extreme cold and hot conditions.

How many electrical actuations can be expected from this relay?

The relay is rated for 100,000 electrical life cycles, ensuring long-lasting performance under typical operating conditions without failure, ideal for continuous use.

What applications would benefit from the use of this relay?

Ideal for automation and control circuits, the relay is effectively used in various devices, including medical equipment, printers, and consumer electronics, enhancing functionality and reliability.
