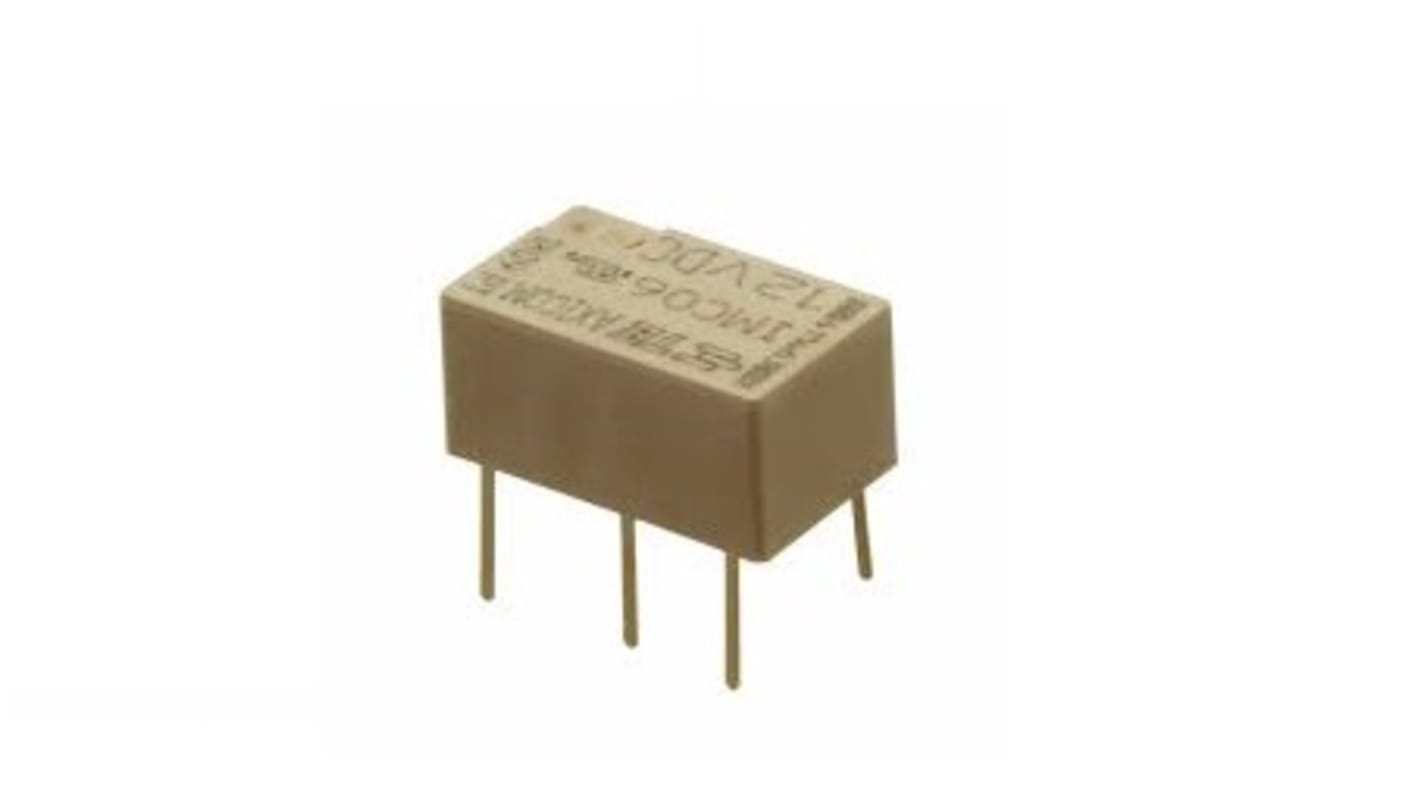

TE Connectivity PCB Mount Signal Relay, 5V dc Coil, 4A Switching Current, SPDT
- RS Stock No.:
- 276-3881
- Mfr. Part No.:
- IMC03TS 1462042-7
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 tube of 1000 units)*
£2,599.00
(exc. VAT)
£3,119.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1,000 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 1000 - 1000 | £2.599 | £2,599.00 |
| 2000 + | £2.488 | £2,488.00 |
*price indicative
- RS Stock No.:
- 276-3881
- Mfr. Part No.:
- IMC03TS 1462042-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Number of Coils | Single | |
| Maximum Switching Current AC | 4 A | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 220V dc | |
| Series | Axicom IM | |
| Length | 7.8mm | |
| Latching | No | |
| Depth | 5.08mm | |
| Height | 8.85mm | |
| Dimensions | 7.8 x 5.08 x 8.85mm | |
| Terminal Type | Through Hole | |
| Switching Current | 4A | |
| Coil Resistance | 90 Ω | |
| Maximum Switching Power AC | 62.5 VA | |
| Coil Power | 100mW | |
| Contact Material | Gold Plated | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 5V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Number of Coils Single | ||
Maximum Switching Current AC 4 A | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Series Axicom IM | ||
Length 7.8mm | ||
Latching No | ||
Depth 5.08mm | ||
Height 8.85mm | ||
Dimensions 7.8 x 5.08 x 8.85mm | ||
Terminal Type Through Hole | ||
Switching Current 4A | ||
Coil Resistance 90 Ω | ||
Maximum Switching Power AC 62.5 VA | ||
Coil Power 100mW | ||
Contact Material Gold Plated | ||
The TE Connectivity Signal Relay of IM series are essentially electrically operated electromechanical switches that control the flow of current in a circuit.
Bifurcated contacts
High mechanical shock resistance
High mechanical shock resistance
