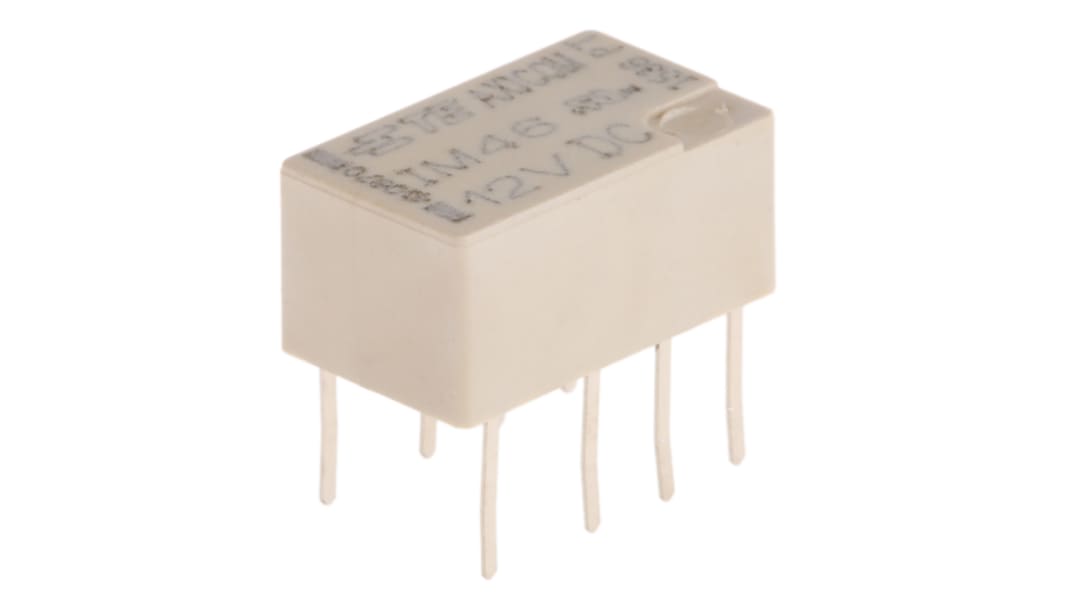

    TE Connectivity PCB Mount Latching Signal Relay, 12V dc Coil, 2A Switching Current, DPDT

    TE Connectivity PCB Mount Latching Signal Relay, 12V dc Coil, 2A Switching Current, DPDT
    1 / 2
    View all Signal Relays

    Subtotal (1 tube of 1000 units)**

    £1,914.27

    (exc. VAT)

    £2,297.12

    (inc. VAT)

    Add to Basket
    Select or type quantity
    Available to back order for despatch 15/11/2025*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Tube(s)
    Per Tube
    Per unit**
    1 +£1,914.27£1.914

    **price indicative

    RS Stock No.:
    164-0863
    Mfr. Part No.:
    6-1462037-6
    Brand:
    TE Connectivity
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    TE Connectivity

    Coil Voltage

    12V dc

    Contact Configuration

    DPDT

    Mounting Type

    PCB Mount

    Maximum Switching Current AC

    2 A

    Maximum Switching Current DC

    2 A

    Maximum Switching Voltage AC

    250V ac

    Maximum Switching Voltage DC

    220V dc

    Maximum Switching Power DC

    60 W

    Latching

    Yes

    Length

    10mm

    Depth

    6mm

    Height

    5.65mm

    Dimensions

    10 x 6 x 5.65mm

    Terminal Type

    Through Hole

    Number of Poles

    2

    Switching Current

    2A

    Application

    Automotive, Telecommunications

    Coil Power

    100mW

    Maximum Operating Temperature

    +85°C

    Isolation Coil To Contact

    1.8kV rms

    Minimum Operating Temperature

    -40°C

    Maximum Switching Power AC

    62.5VA

    Operating Temperature Range

    -40 → +85°C

    Coil Resistance

    1440Ω

    Contact Material

    Gold Plated
