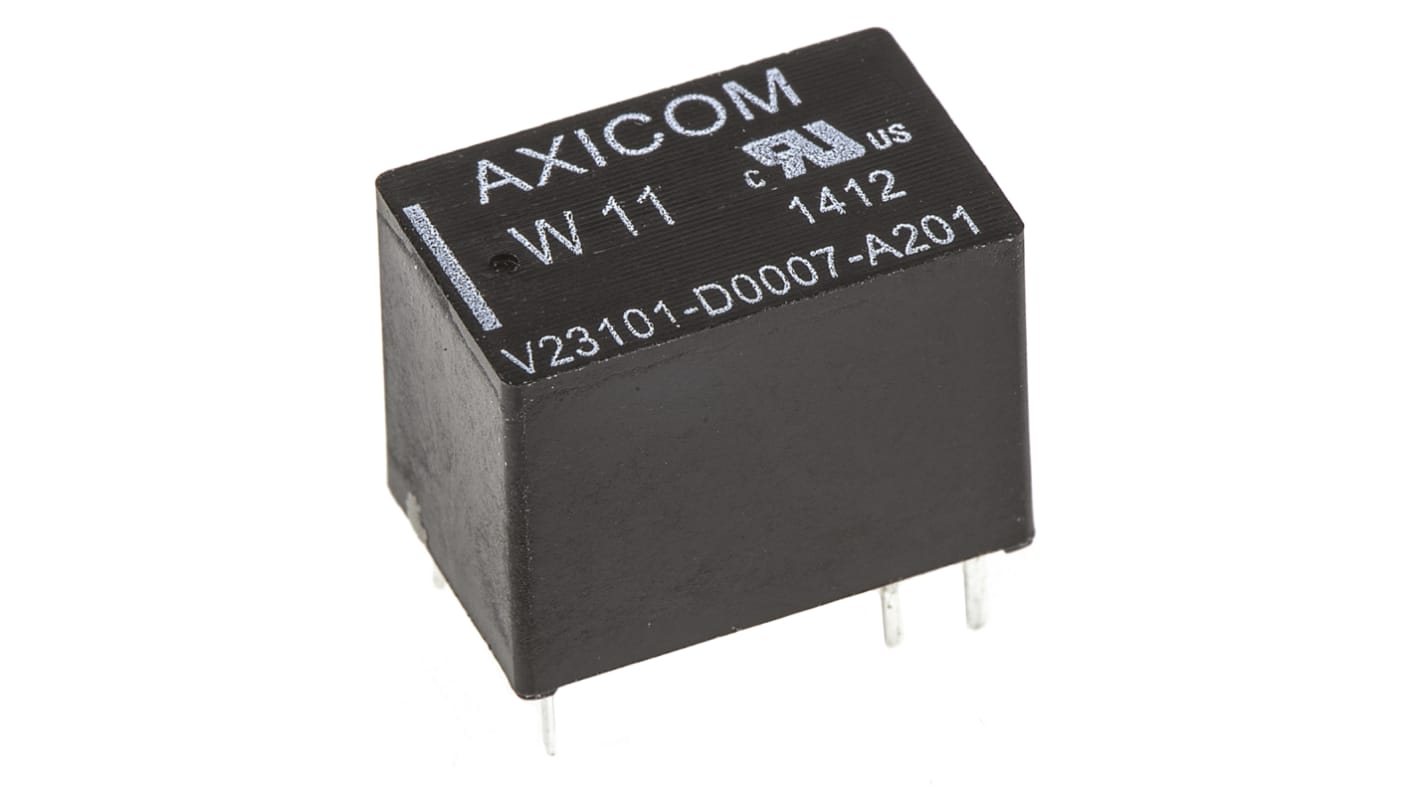

TE Connectivity PCB Mount Signal Relay, 24V dc Coil, 1.25A Switching Current, SPST

View all Signal Relays

Subtotal (1 tube of 25 units)*

£57.575

(exc. VAT)

£69.10

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 25 unit(s), ready to ship
Units
Per unit
Per Tube*
25 +£2.303£57.58

*price indicative

RS Stock No.:
161-4100
Mfr. Part No.:
V23101D7A201
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Coil Voltage

24V dc

Contact Configuration

SPST

Mounting Type

PCB Mount

Maximum Switching Current DC

1.25 A

Maximum Switching Voltage AC

125V ac

Maximum Switching Voltage DC

120V dc

Maximum Switching Power DC

30 W

Series

W11

Length

15.4mm

Latching

No

Depth

10mm

Height

11.5mm

Dimensions

15.4 x 11.5 x 10mm

Terminal Type

Through Hole

Switching Current

1.25A

Number of Poles

1

Application

Signal

Coil Resistance

1280Ω

Maximum Switching Power AC

62.5VA

Features

Multi Purpose Relay, Immersion Cleanable

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+85°C

Contact Material

Gold Plated

Coil Power

450mW

Operating Temperature Range

-40 → +85°C

COO (Country of Origin):
SI

W11 Series


1A signal switching relay (max.)
Contact Material AgPd
Fully sealed
High shock and vibration resistance
Switching Voltage 24 Vdc; 125 Vac
Dimensions: 11.5mm x 10.5mm x 15.5mm
Pin length: 3.5mm
Operating Temperature Range -40 to +85°C
Stock numbers 256-1131 and 256-1147 have an asymmetrical pin assignment
