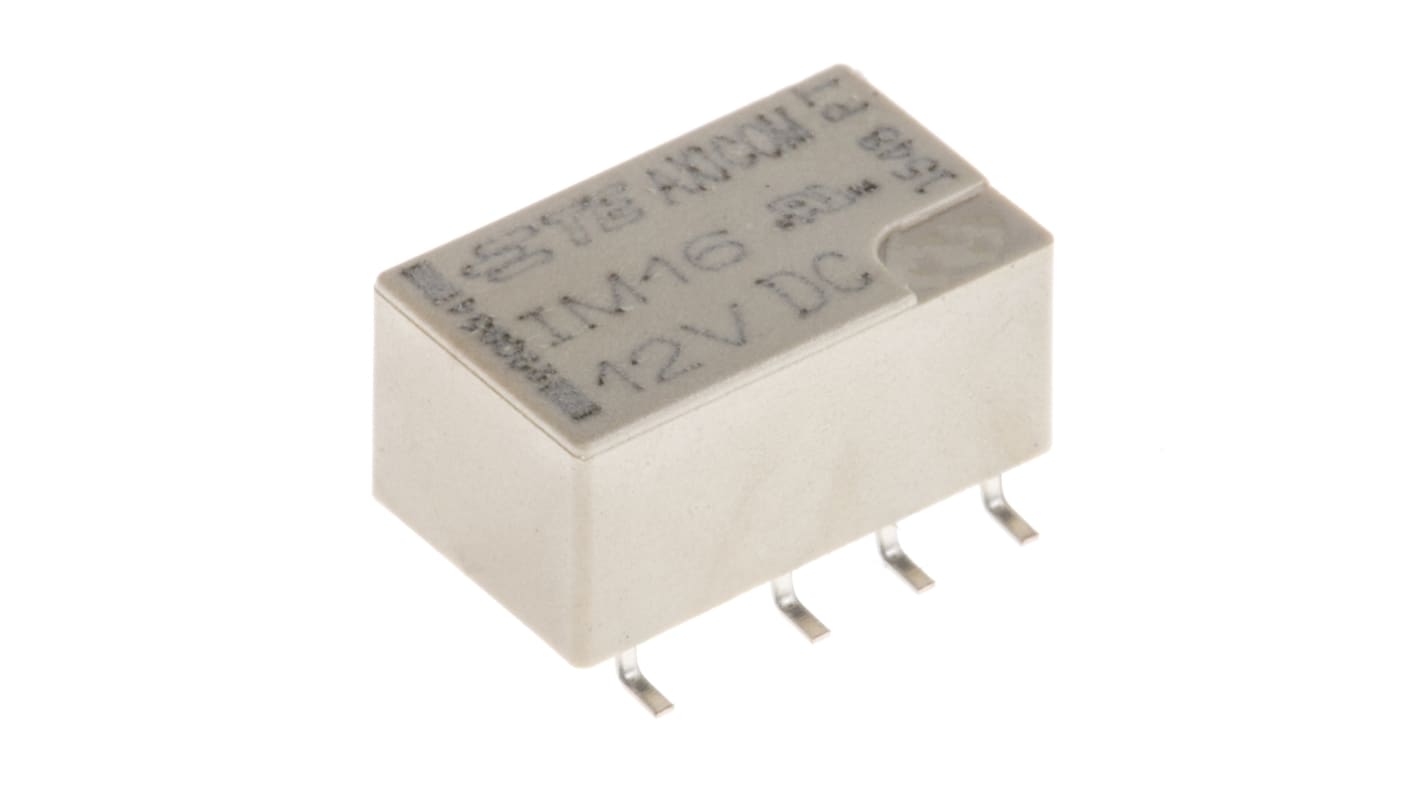

TE Connectivity Surface Mount Signal Relay, 12V dc Coil, 2A Switching Current, DPDT

View all Signal Relays
Save 20% when you buy 250 units

Subtotal (1 unit)*

£3.57

(exc. VAT)

£4.28

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1,600 unit(s) shipping from 26 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£3.57
10 - 49£3.40
50 - 99£3.21
100 - 249£3.05
250 +£2.83

*price indicative

Packaging Options:
RS Stock No.:
515-486
Mfr. Part No.:
IM16GR
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Coil Voltage

12V dc

Contact Configuration

DPDT

Mounting Type

Surface Mount

Maximum Switching Current DC

2 A

Maximum Switching Voltage AC

250V ac

Maximum Switching Voltage DC

220V dc

Maximum Switching Power DC

60 W

Series

IM

Latching

No

Length

10mm

Depth

6mm

Height

5.65mm

Dimensions

10 x 6 x 5.65mm

Terminal Type

Through Hole

Number of Poles

2

Application

Signal

Switching Current

2A

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

Features

Bifurcated Contacts, Low Coil Power Consumption

Operating Temperature Range

-40 → +85°C

Coil Resistance

1165Ω

Coil Power

110mW

Maximum Switching Power AC

60VA

Contact Material

Gold Plated, Rhodium Plated Palladium Nickel
