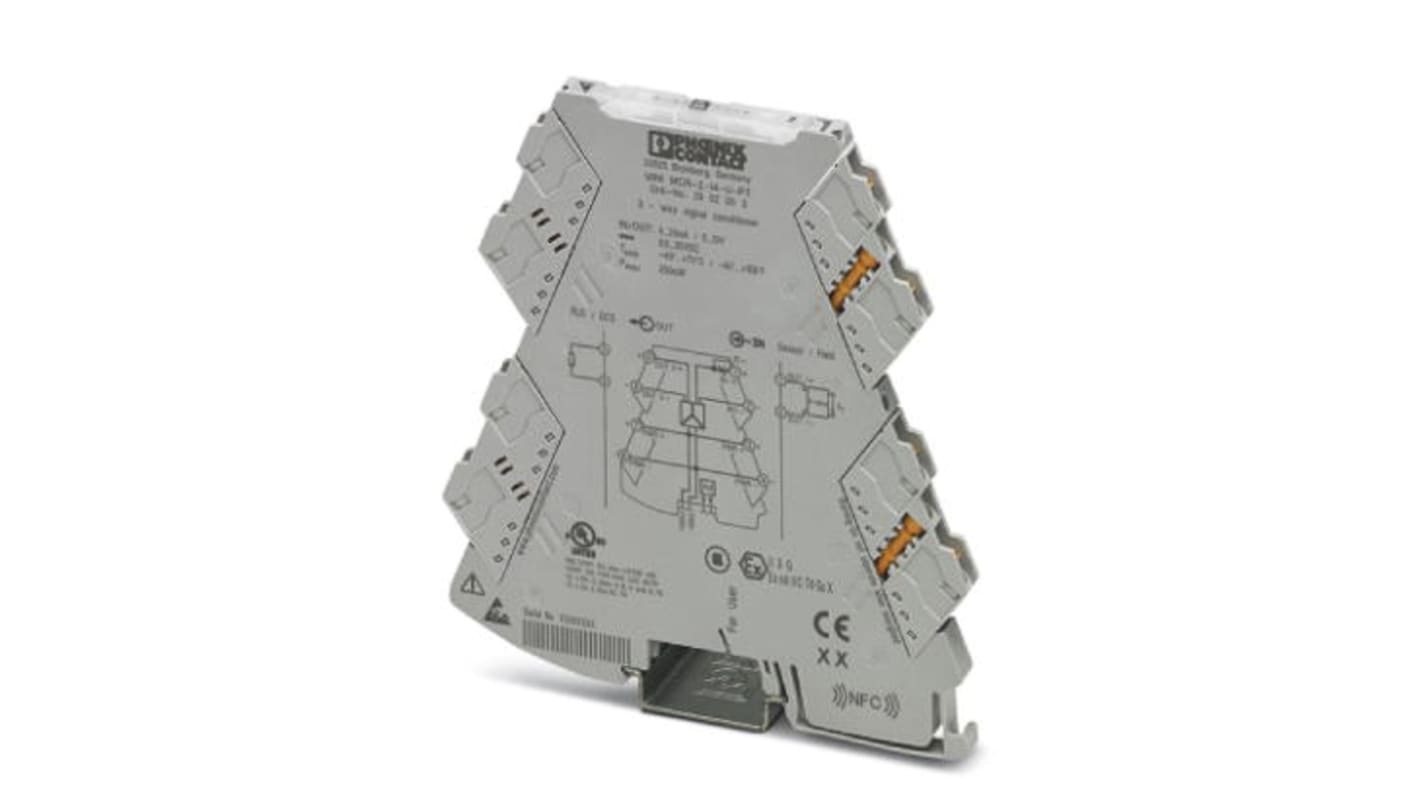

Phoenix Contact MINI MCR Series Signal Conditioner, Current Input, Voltage Output, 9.6/30 V dc Supply, UL, D T6, EAC Ex,
- RS Stock No.:
- 849-6383
- Mfr. Part No.:
- 2902003
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£141.48
(exc. VAT)
£169.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 26 January 2026
- Plus 5 unit(s) shipping from 04 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £141.48 |
*price indicative
- RS Stock No.:
- 849-6383
- Mfr. Part No.:
- 2902003
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Signal Conditioner | |
| Input Signal Type | Current | |
| Output Signal Type | Voltage | |
| Input Range | 4 to 20 mA | |
| Output Range | 0/11 V | |
| Supply Voltage | 9.6/30 V dc | |
| Hazardous Area Certification | UL, D T6, EAC Ex, B, Class I, Zone 2, Group IIC, ATEX, Div 2, C, IECEx, Groups A, CCC | |
| Mount Type | DIN Rail | |
| Terminal Type | Push-in | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| IP Rating | IP20 | |
| Signal Conditioner Type | 3-Way Signal Conditioner | |
| Standards/Approvals | IEC/EN 61010-1, EN 61000-4-4, EN 61000-4-2, GB/T 3836.4, GB/T 3836.1, CE, GB/T 3836.3, EN 61000-4-5, EN 61000-6-4, EN 61000-4-6, EN 61000-6-2, EN 61000-4-3 | |
| Series | MINI MCR | |
| Number of Channels | 1 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Signal Conditioner | ||
Input Signal Type Current | ||
Output Signal Type Voltage | ||
Input Range 4 to 20 mA | ||
Output Range 0/11 V | ||
Supply Voltage 9.6/30 V dc | ||
Hazardous Area Certification UL, D T6, EAC Ex, B, Class I, Zone 2, Group IIC, ATEX, Div 2, C, IECEx, Groups A, CCC | ||
Mount Type DIN Rail | ||
Terminal Type Push-in | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
IP Rating IP20 | ||
Signal Conditioner Type 3-Way Signal Conditioner | ||
Standards/Approvals IEC/EN 61010-1, EN 61000-4-4, EN 61000-4-2, GB/T 3836.4, GB/T 3836.1, CE, GB/T 3836.3, EN 61000-4-5, EN 61000-6-4, EN 61000-4-6, EN 61000-6-2, EN 61000-4-3 | ||
Series MINI MCR | ||
Number of Channels 1 | ||
- COO (Country of Origin):
- DE
MINI Analog Pro Signal Conditioners
The Mini Analog Pro signal conditioners from Phoenix Contact are the first 6mm range with plug-in connection technology. Using the latest switching technology, applications are made quicker and easier with the signal conditioners' highly compact and visible housing, easily accessible terminal points and current measurement. Users also benefit from simple configuration via DIP switches as well as extended configuration via software or smartphone app without needing additional accessories plus supports NFC communication
Easy startup and servicing: measures signals without disconnecting current loops and optional disconnect function
Excellent signal quality
Available with extended supply voltages and operating temperatures to suit a wide range of applications
Wiring with screw connection or tool-free plug-in technology
