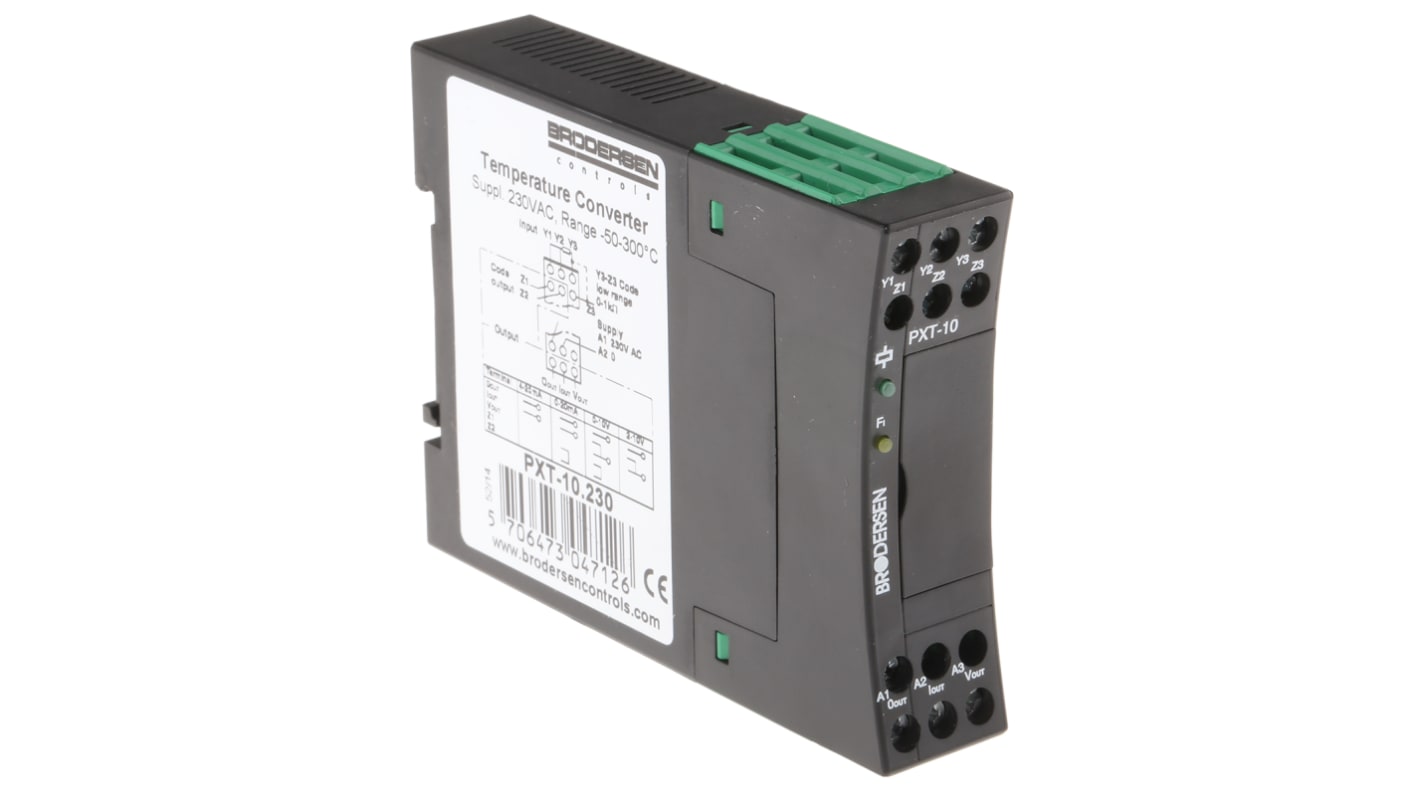

Brodersen Controls 9100 Series Signal Conditioner, RTD Input, Current, Voltage Output, 230V ac Supply

View all Signal Conditioners
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
PR Electronics 4100 Series Universal Transmitter, Universal Input, Current, Voltage Output, 19.2 → 300 V dc,
RS Stock No.
796-6887

Each

£201.09

(exc. VAT)

£241.31

(inc. VAT)

RS Stock No.:
324-0683
Mfr. Part No.:
PXT-10.230/RS
Brand:
Brodersen Controls
Find similar products by selecting one or more attributes.
Select all

Brand

Brodersen Controls

Module Type

Temperature Converter

Input Signal Type

RTD

Output Signal Type

Current, Voltage

Input Range

-50 → 300°C

Output Range

0 → 10 V dc, 0 → 20mA

Supply Voltage

230V ac

Mounting Type

DIN Rail Mount

Operating Temperature Range

-20 → +55°C

Series

9100

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+55°C

COO (Country of Origin):
DK

Temperature Converter


Galvanic isolation output to supply
Pt100 2 or 3-wire operation
Selectable input sensor temperature range: -50 to +100°C or -50 to +300°C
Output selectable via terminals: 0 to 10V, 0 to 20mA or 4 to 20mA
Offset and gain adjustable via front panel, ±5% of max signal

Note

Pt100 sensor not supplied


Brodersen DIN Rail Mounting


NORYL housing
Dimensions: H80 x W22.5 x D104mm
Operating temperature range: -20 to +55°C
