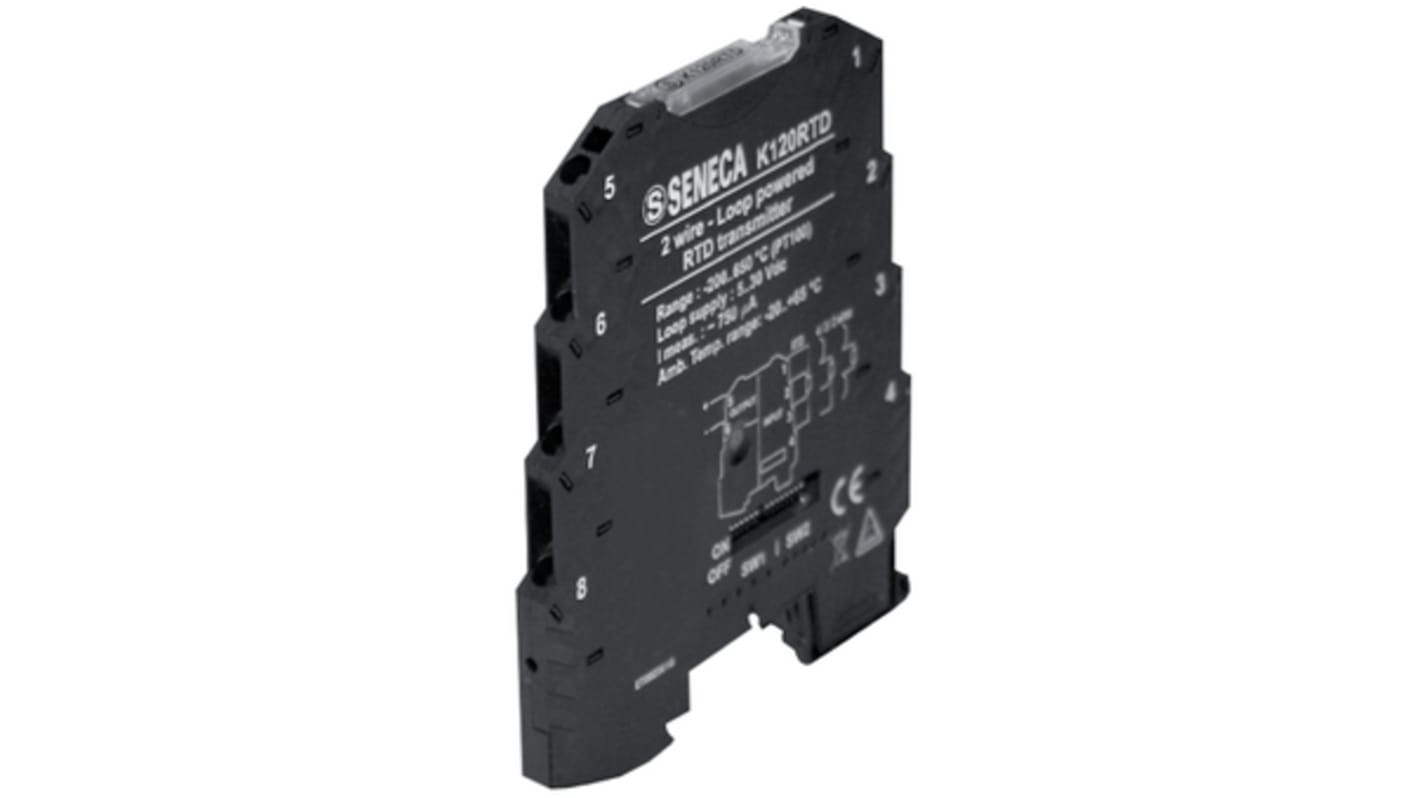

Seneca K120 Series Temperature Converter, RTD, RTD Input, Current, Current Output, 30V dc, 5 V dc Supply
- RS Stock No.:
- 283-7555
- Distrelec Article No.:
- 300-74-420
- Mfr. Part No.:
- K120RTD
- Brand:
- Seneca
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 283-7555
- Distrelec Article No.:
- 300-74-420
- Mfr. Part No.:
- K120RTD
- Brand:
- Seneca
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Seneca | |
| Product Type | Temperature Converter | |
| Input Signal Type | RTD, RTD | |
| Output Signal Type | Current, Current | |
| Output Range | 4 → 20 mA, 4 → 20 mA | |
| Supply Voltage | 30V dc, 5V dc | |
| Hazardous Area Certification | No | |
| Mount Type | DIN | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 65°C | |
| IP Rating | IP20 | |
| Standards/Approvals | No | |
| Series | K120 | |
| Number of Channels | 1 | |
| Select all | ||
|---|---|---|
Brand Seneca | ||
Product Type Temperature Converter | ||
Input Signal Type RTD, RTD | ||
Output Signal Type Current, Current | ||
Output Range 4 → 20 mA, 4 → 20 mA | ||
Supply Voltage 30V dc, 5V dc | ||
Hazardous Area Certification No | ||
Mount Type DIN | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 65°C | ||
IP Rating IP20 | ||
Standards/Approvals No | ||
Series K120 | ||
Number of Channels 1 | ||
- COO (Country of Origin):
- IT
The Signal converter is a versatile converter for Thermoresistance PT100/Ni100 with 2, 3, 4 wires, allowing for seamless conversion and isolation into a 4..20mA loop powered signal. Completely configurable through dip switches or PC software, this converter boasts high accuracy and a quick response time of about 220ms, making it ideal for various applications.
Configurable through dip switches or PC software
Converts Thermoresistance PT100/Ni100 with 2, 3, 4 wires into a 4..20mA loop powered signal
High accuracy of 0.1%
Quick response time of about 220ms
Mountable on a 35mm DIN rail guide for easy installation
Features status indicators for power supply and errors
Compatible with a wide range of temperature environments from -20 to +65 °C
