Murata Power Solutions Brass-Ended Shunt, 100 A, 100mV Output, ±0.25 % Accuracy

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CA
Product Details

Murata Power Solutions DC Shunt

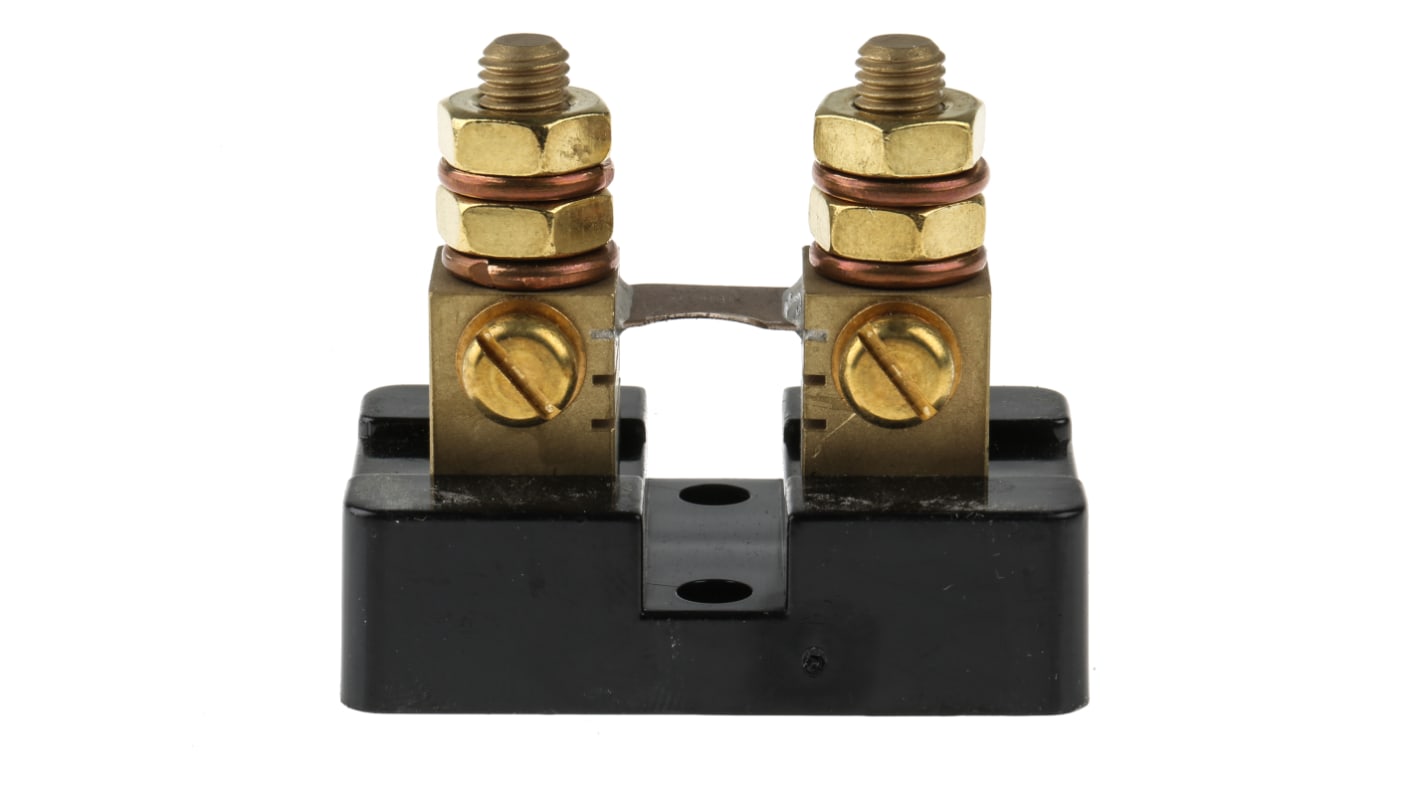

The Murata Power Solutions DC shunt has an output voltage rating of 100mV at 100A. This precision shunt connects directly to the MPS DCA5-20PC series of DC ammeters. Its installation is straightforward simply connect the load circuit to the shunt’s threaded studs and the shunt’s mV Kelvin-outputs to the digital ammeter’s input terminals. It features a rugged phenolic base that provides 750V isolation to the shunt’s brass terminals, allowing direct attachment to metal surfaces.

Features and Benefits

High precision with ±0.25% accuracy
Resistance is 0.00025ohm
Manganin sensing element
Base mount
Operating temperature ranges between -40°C and 60°C

Applications

Embedded designing
Research and development

Specifications
Attribute Value
Maximum Current 100 A
Voltage Output 100mV
Shunt Type Brass-Ended
Accuracy ±0.25 %
Minimum Temperature -40°C
Maximum Temperature 60°C
12 In stock - FREE next working day delivery available
Price Each
£ 18.02
(exc. VAT)
£ 21.62
(inc. VAT)
Units
Per unit
1 - 4
£18.02
5 - 9
£17.30
10 +
£16.94
