Murata Power Solutions Brass-Ended Shunt, 20 A Max, 50mV Output, ±0.25 % Accuracy

RS Stock No.:: 810-3270
Mfr. Part No.:: 3020-01098-0
Brand:: Murata Power Solutions

Murata Power Solutions Brass-Ended Shunt, 20 A Max, 50mV Output, ±0.25 % Accuracy

21 In stock - FREE next working day delivery available

8 available from Europe for delivery within 1 working day(s).

Added

Price Each

£23.78

(exc. VAT)

£28.54

(inc. VAT)

Units	Per unit
1 - 4	£23.78
5 - 9	£23.12
10 +	£22.50

RS Stock No.:: 810-3270
Mfr. Part No.:: 3020-01098-0
Brand:: Murata Power Solutions

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: CA

Product Details

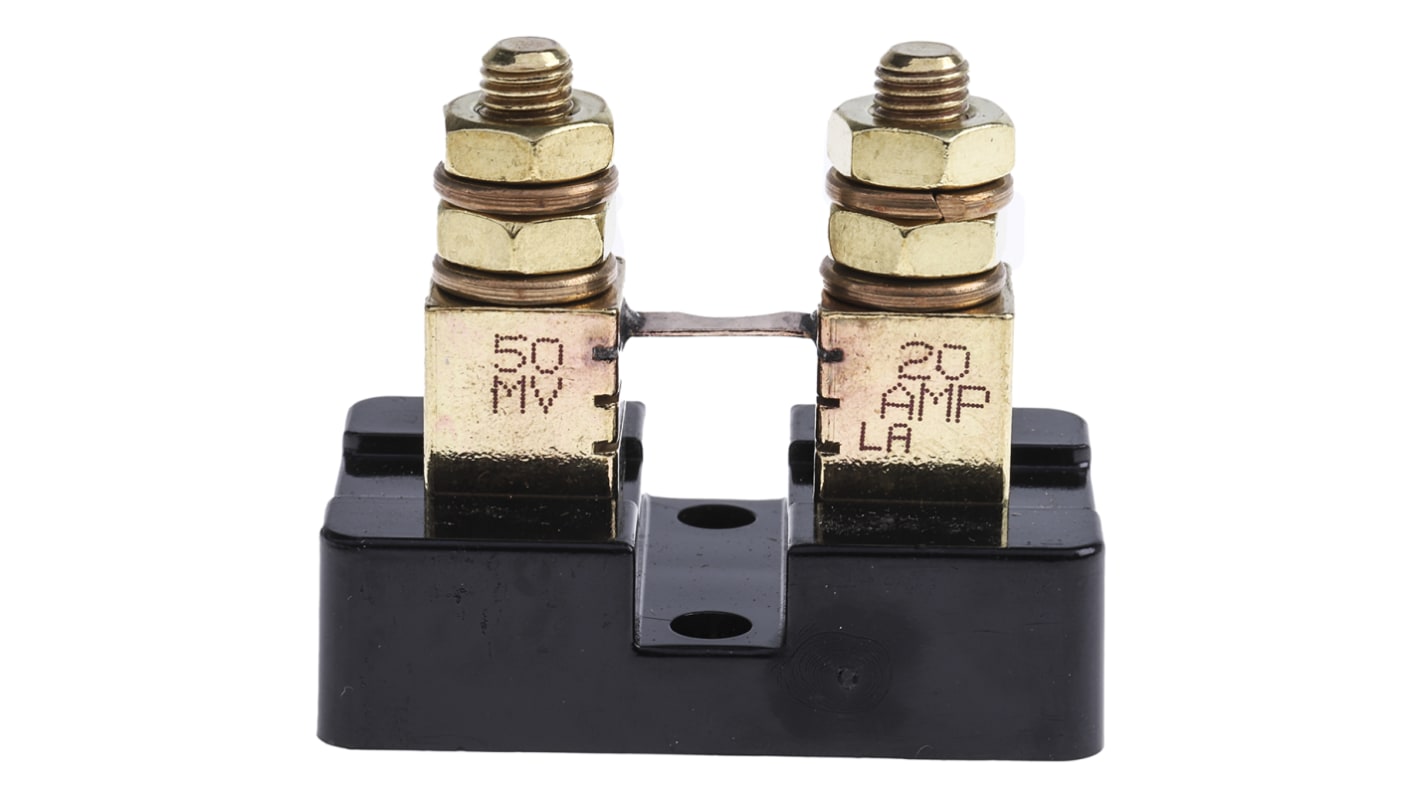

Murata Power Solutions DC Shunt

The Murata Power Solutions DC shunt has an output voltage rating of 50mV at 20A. This precision shunt connects directly to the MPS DCA5-20PC series of DC ammeters. Its installation is straightforward

simply connect the load circuit to the shunt’s threaded studs and the shunt’s mV Kelvin-outputs to the digital ammeter’s input terminals. It features a rugged phenolic base that provides 750V isolation to the shunt’s brass terminals, allowing direct attachment to metal surfaces.

Features and Benefits

High precision with ±0.25% accuracy
Resistance is 0.0001ohm
Manganin sensing element
Base mount
Operating temperature ranges between -40°C and 60°C

Applications

Audio/Video systems
Consumer electronics

Specifications

Attribute	Value
Maximum Current	20 A
Voltage Output	50mV
Shunt Type	Brass-Ended
Accuracy	±0.25 %
Minimum Temperature	-40°C
Maximum Temperature	+60°C
