Murata Power Solutions Brass-Ended Shunt, 50 A Max, 50mV Output, ±0.25 % Accuracy
- RS Stock No.:
- 810-3267
- Mfr. Part No.:
- 3020-01096-0
- Brand:
- Murata Power Solutions
Available to back order for despatch when stock is available
Added
Price Each
£23.78
(exc. VAT)
£28.54
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £23.78 |
| 5 - 9 | £23.12 |
| 10 + | £22.50 |
- RS Stock No.:
- 810-3267
- Mfr. Part No.:
- 3020-01096-0
- Brand:
- Murata Power Solutions
Technical Reference
Legislation and Compliance
Product Details

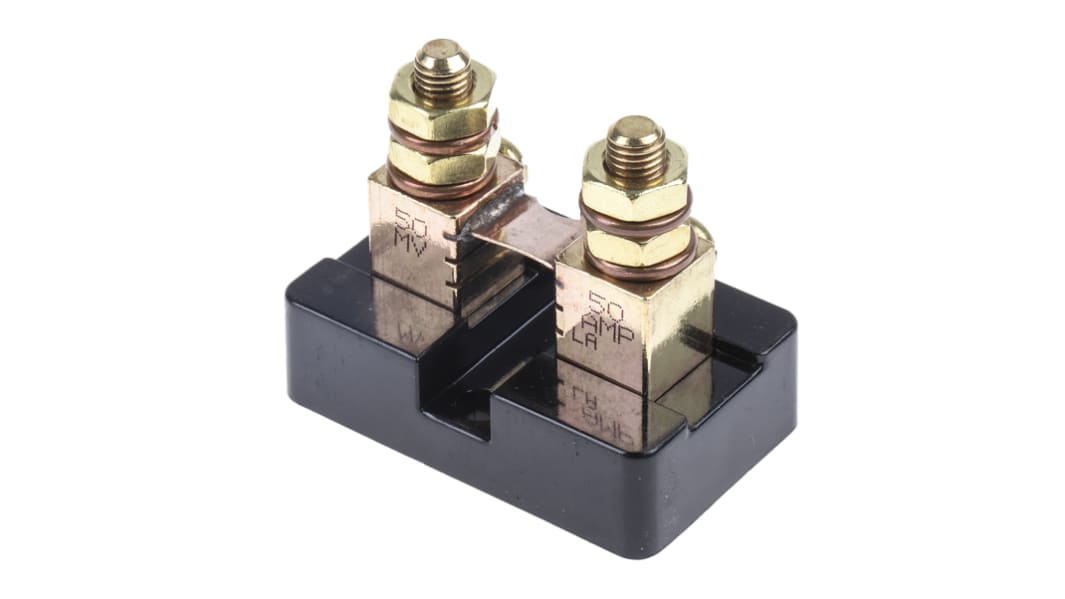

Murata Power Solutions DC Shunt
The Murata Power Solutions DC shunt has an output voltage rating of 50mV at 50A. This precision shunt connects directly to the MPS DCA5-20PC series of DC ammeters. Its installation is straightforward
simply connect the load circuit to the shunt’s threaded studs and the shunt’s mV Kelvin-outputs to the digital ammeter’s input terminals. It features a rugged phenolic base that provides 750V isolation to the shunt’s brass terminals, allowing direct attachment to metal surfaces.
Features and Benefits
High precision with ±0.25% accuracy
Resistance is 0.0025ohm
Manganin sensing element
Base mount
Operating temperature ranges between -40°C and 60°C
Resistance is 0.0025ohm
Manganin sensing element
Base mount
Operating temperature ranges between -40°C and 60°C
Applications
Audio/Video systems
Consumer electronics
Consumer electronics
Specifications
Attribute | Value |
|---|---|
| Maximum Current | 50 A |
| Voltage Output | 50mV |
| Shunt Type | Brass-Ended |
| Accuracy | ±0.25 % |
| Minimum Temperature | -40°C |
| Maximum Temperature | +60°C |
