ACE Shock Absorber, MC10MH-B, 28.5 mm Body Length, 38.5mm Body Length, M8 x 1 Thread Size
- RS Stock No.:
- 366-3244
- Mfr. Part No.:
- MC10MH-B
- Brand:
- ACE
Subtotal (1 unit)*
£62.69
(exc. VAT)
£75.23
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 62 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 180 unit(s) shipping from 06 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £62.69 |
*price indicative
- RS Stock No.:
- 366-3244
- Mfr. Part No.:
- MC10MH-B
- Brand:
- ACE
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ACE | |
| Product Type | Shock Absorber | |
| Thread Size | M8 x 1 | |
| Overall Length | 38.5mm | |
| Length | 28.5mm | |
| Series | MC | |
| Thread Standard | UNF | |
| Maximum Energy Capacity Per Hour | 4000Nm | |
| Maximum Energy Capacity Per Cycle | 1.25Nm | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 65°C | |
| Standards/Approvals | No | |
| Maximum Return Force | 4N | |
| Select all | ||
|---|---|---|
Brand ACE | ||
Product Type Shock Absorber | ||
Thread Size M8 x 1 | ||
Overall Length 38.5mm | ||
Length 28.5mm | ||
Series MC | ||
Thread Standard UNF | ||
Maximum Energy Capacity Per Hour 4000Nm | ||
Maximum Energy Capacity Per Cycle 1.25Nm | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 65°C | ||
Standards/Approvals No | ||
Maximum Return Force 4N | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US

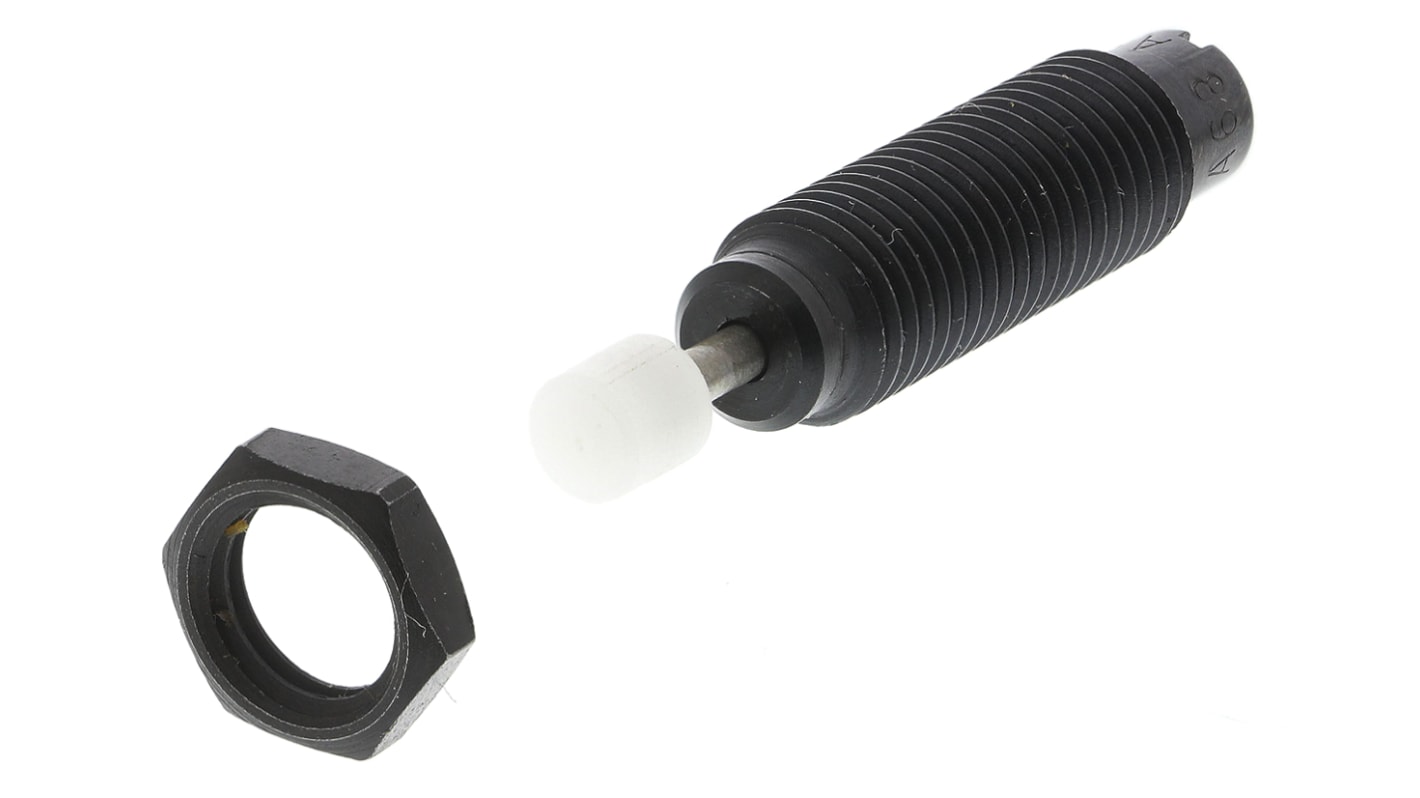

ACE Self-Compensating Miniature Type MC
Handles effective weights from 0.3kg to 36kg
Includes button
Integral mechanical stop in front end of unit
Operating temperature range 0°C to +65°C
Impact velocity range 0.15m/s to 5m/s
Self Compensating
These shock absorbers have a steel body with Weartec - Plus (harsh environment) finish, hardened stainless steel piston rod, locknut and hardened steel rod end button with insert for noise suppression. Universal mounting and stop collar attachments are available separately.
