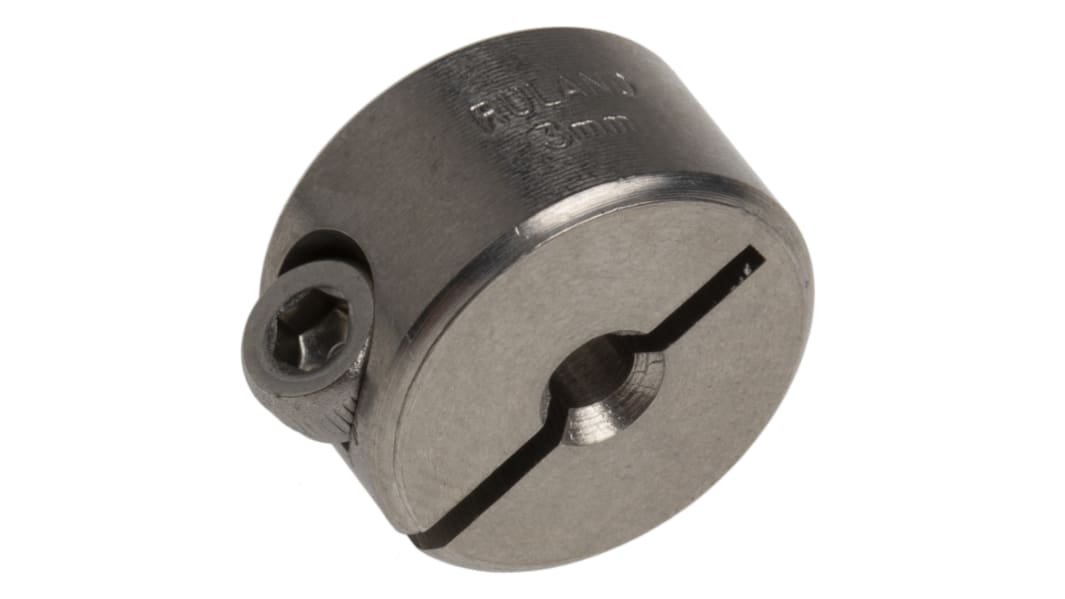

Ruland Shaft Collar, One Piece, Clamp Screw, Bore 3mm, OD 16mm, W 9mm, Stainless Steel
- RS Stock No.:
- 174-6743
- Mfr. Part No.:
- MCL-3-SS
- Brand:
- Ruland
Save 8% when you buy 25 units
Subtotal (1 unit)*
£9.99
(exc. VAT)
£11.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £9.99 |
5 - 9 | £9.58 |
10 - 24 | £9.39 |
25 + | £9.19 |
*price indicative
- RS Stock No.:
- 174-6743
- Mfr. Part No.:
- MCL-3-SS
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Shaft Diameter | 3mm | |
One/Two Piece | One Piece | |
Material | Stainless Steel | |
Single/Double Wide | Single | |
Outside Diameter | 16mm | |
Fastening | Clamp Screw | |
Width | 9mm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Shaft Diameter 3mm | ||
One/Two Piece One Piece | ||
Material Stainless Steel | ||
Single/Double Wide Single | ||
Outside Diameter 16mm | ||
Fastening Clamp Screw | ||
Width 9mm | ||
- COO (Country of Origin):
- US
Ruland Shaft Collar One-piece Clamp Screw
The Ruland one-piece shaft collar has dimensions of 3mm bore, 16mm OD and 9mm width. It is made from 303 stainless steel with a bright finish. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ 0.05mm) which is critical for the alignment. It is stamped with the Ruland name and bore size for ease of identification. The collar has a clamp screw of M3x8 dimension.
Features and Benefits
• Lightweight
• Easily adjustable
• Hassel free removability
• Excellent holding power
• Service temperature ranges between -40°C and 176°C
• Easily adjustable
• Hassel free removability
• Excellent holding power
• Service temperature ranges between -40°C and 176°C
Applications
• Component alignment
• Component mounting
• Loadbearing face
• Mechanical stop
• Component mounting
• Loadbearing face
• Mechanical stop
Certifications
• DIN 912 12.9
• REACH certification
• REACH certification
