Ruland Shaft Collar, One Piece, Clamp Screw, Bore 16mm, OD 34mm, W 13mm, Carbon Steel

View all Shaft Collars
Bulk discount available

Subtotal (1 unit)*

£6.33

(exc. VAT)

£7.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 19 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£6.33
5 - 9£6.09
10 - 24£5.96
25 +£5.86

*price indicative

RS Stock No.:
174-6734
Mfr. Part No.:
MCL-16-F
Brand:
Ruland
Find similar products by selecting one or more attributes.
Select all

Brand

Ruland

Shaft Diameter

16mm

One/Two Piece

One Piece

Material

Carbon Steel

Single/Double Wide

Single

Outside Diameter

34mm

Fastening

Clamp Screw

Width

13mm

Finish

Black Oxide

COO (Country of Origin):
US

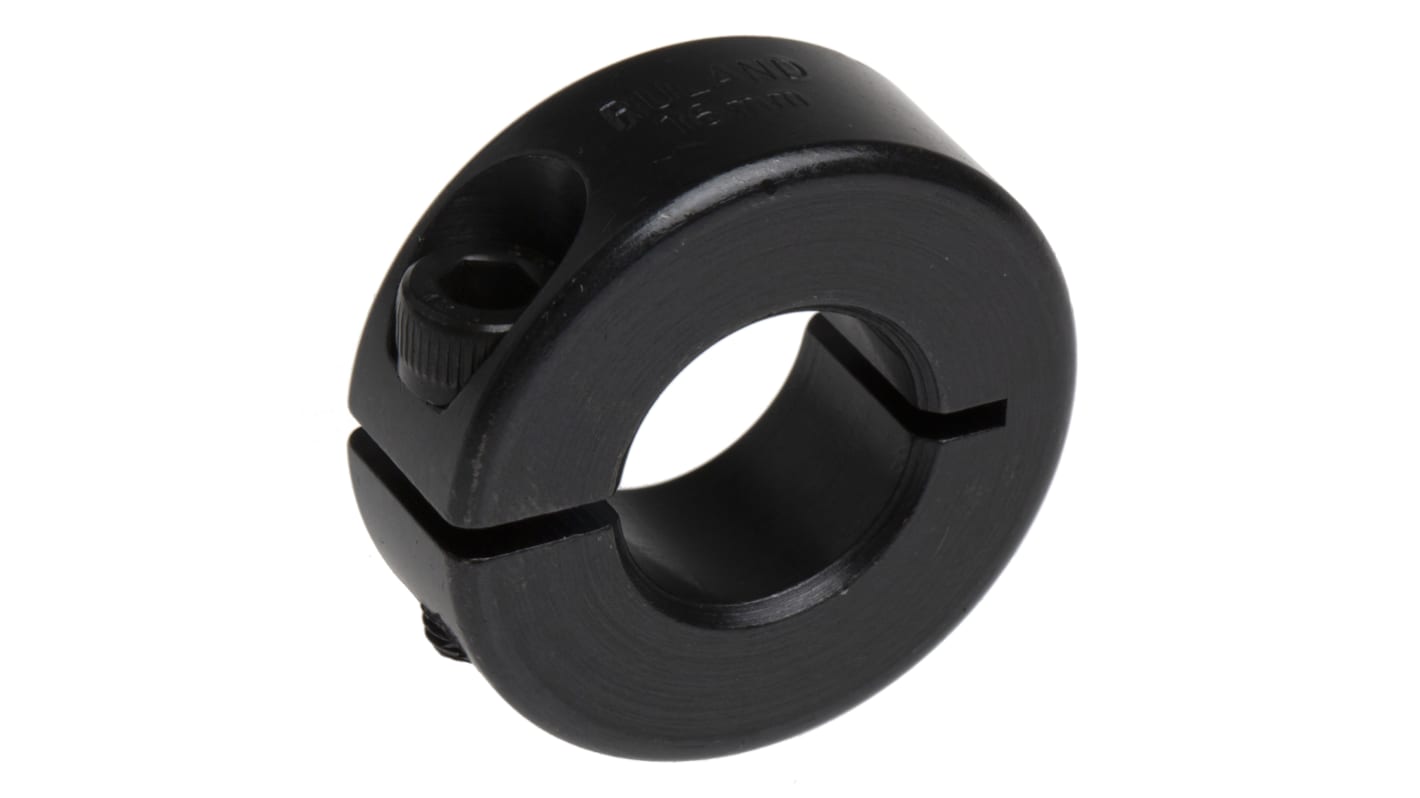

Ruland Shaft Collar One-piece Clamp Screw


The Ruland one-piece shaft collar has dimensions of 16mm bore, 34mm OD and 13mm width. It is made from 1215 carbon steel bar with hot process black oxide, impregnated with naphthenic oil and centrifugally dried finish. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ 0.05mm) which is critical for the alignment. It is stamped with the Ruland name and bore size for ease of identification. The collar has a clamp screw of M5x16 dimension.

Features and Benefits


• Lightweight
• Easily adjustable
• Hassel free removability
• Excellent holding power
• Service temperature ranges between -40°C and 176°C

Applications


• Component alignment
• Component mounting
• Loadbearing face
• Mechanical stop

Certifications


• DIN 912 12.9
• REACH certification
