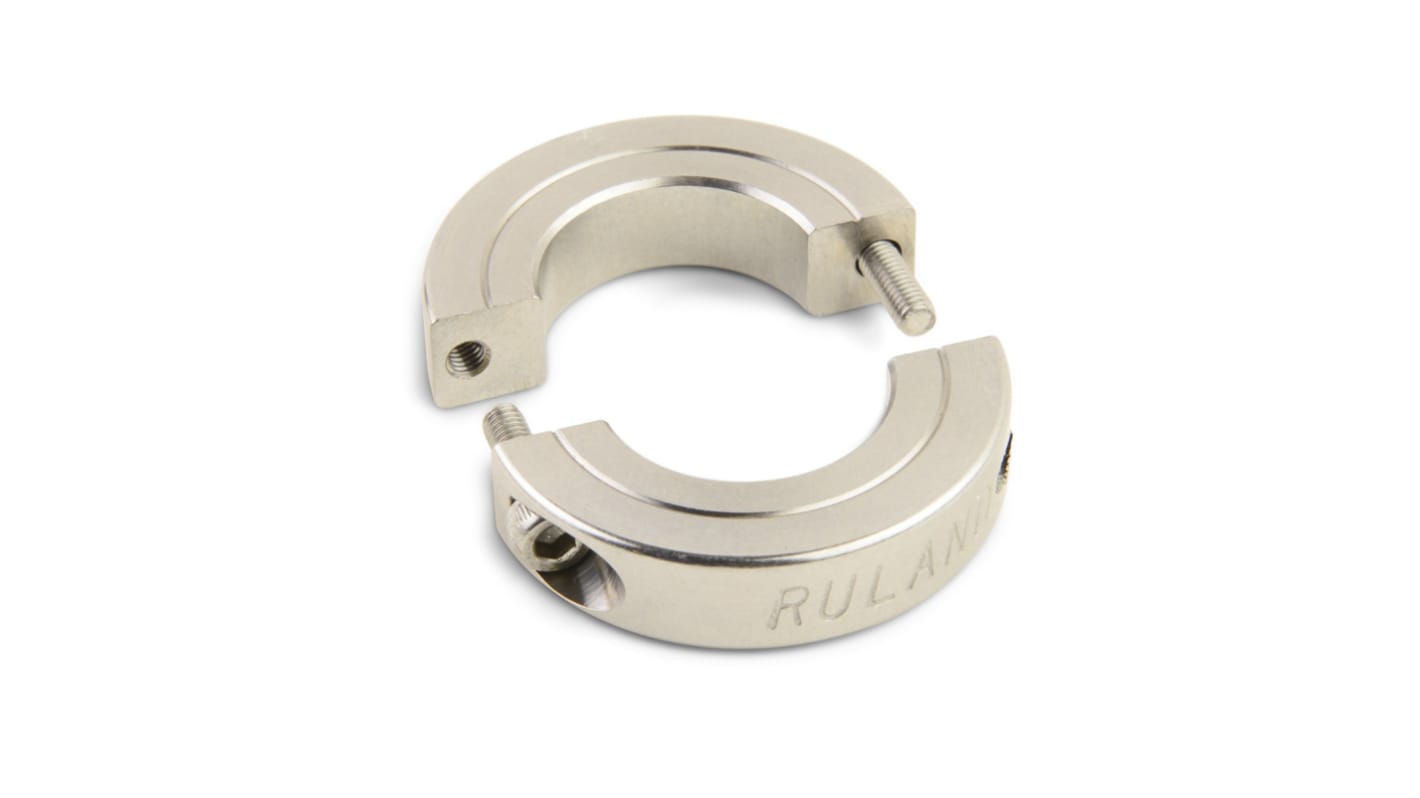

Ruland Shaft Collar, Two Piece, Clamp Screw, Bore 10mm, OD 30mm, W 8mm, Stainless Steel
- RS Stock No.:
- 174-6706
- Mfr. Part No.:
- ENSP30-10MM-SS
- Brand:
- Ruland
Bulk discount available
Subtotal (1 unit)*
£20.57
(exc. VAT)
£24.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £20.57 |
5 - 9 | £19.73 |
10 - 24 | £19.32 |
25 + | £18.92 |
*price indicative
- RS Stock No.:
- 174-6706
- Mfr. Part No.:
- ENSP30-10MM-SS
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Shaft Diameter | 10mm | |
One/Two Piece | Two Piece | |
Material | Stainless Steel | |
Single/Double Wide | Double | |
Outside Diameter | 30mm | |
Fastening | Clamp Screw | |
Width | 8mm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Shaft Diameter 10mm | ||
One/Two Piece Two Piece | ||
Material Stainless Steel | ||
Single/Double Wide Double | ||
Outside Diameter 30mm | ||
Fastening Clamp Screw | ||
Width 8mm | ||
- COO (Country of Origin):
- US
Ruland ENSP30-10MM-SS is a two-piece shaft collar with a 10mm bore, 30mm OD, and 8mm width. The thin line design reduces weight and allows for use in confined spaces. It has the clamp style benefits of not marring the shaft, easy removability, and indefinite adjustability while commonly being used for guiding, spacing, stopping, mounting, and component alignment. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ .002"). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power.
