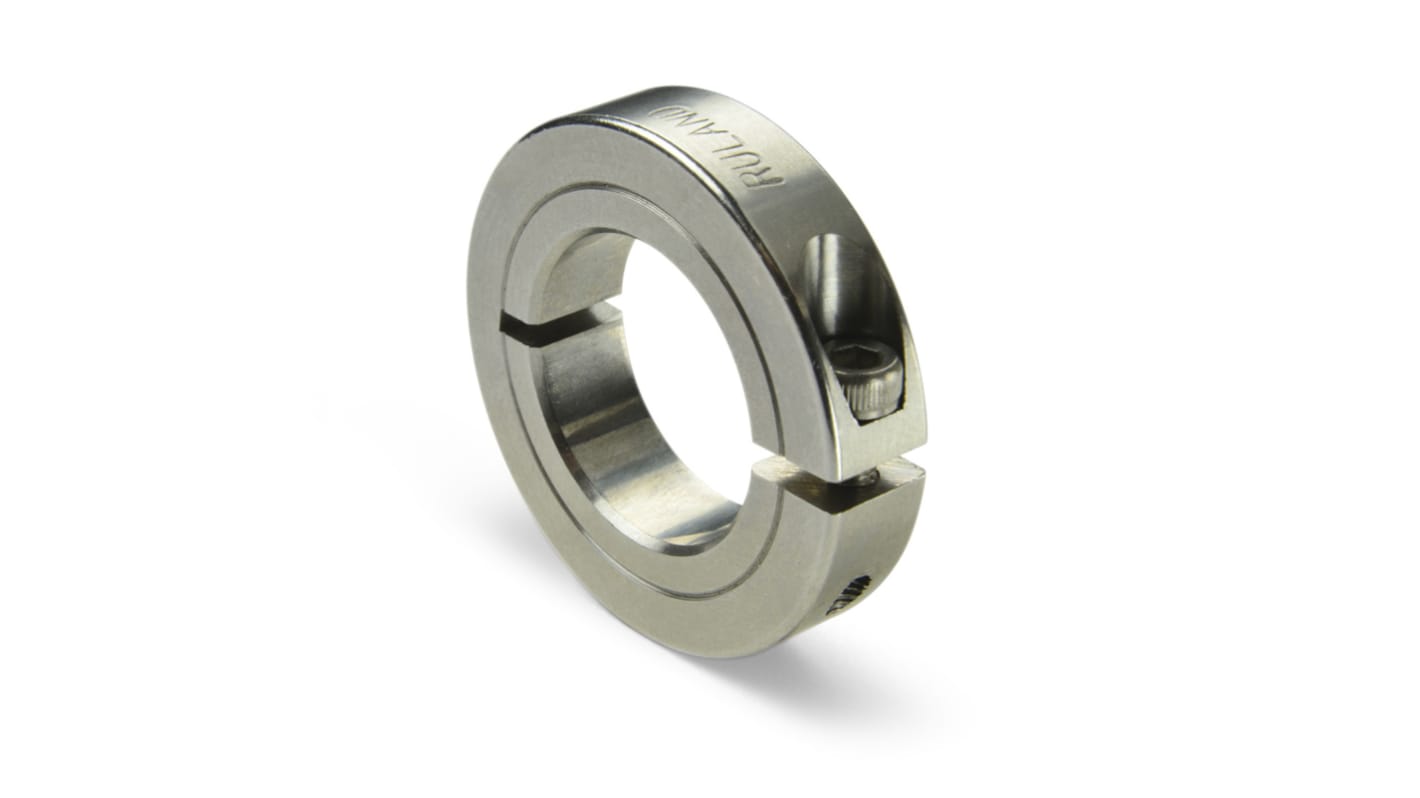

Ruland Shaft Collar, One Piece, Clamp Screw, Bore 20mm, OD 45mm, W 10mm, Stainless Steel
- RS Stock No.:
- 174-6695
- Mfr. Part No.:
- ENCL45-20MM-SS
- Brand:
- Ruland
Bulk discount available
Subtotal (1 unit)*
£26.13
(exc. VAT)
£31.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £26.13 |
5 - 9 | £25.09 |
10 - 24 | £24.58 |
25 + | £24.04 |
*price indicative
- RS Stock No.:
- 174-6695
- Mfr. Part No.:
- ENCL45-20MM-SS
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Shaft Diameter | 20mm | |
One/Two Piece | One Piece | |
Material | Stainless Steel | |
Single/Double Wide | Single | |
Outside Diameter | 45mm | |
Fastening | Clamp Screw | |
Width | 10mm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Shaft Diameter 20mm | ||
One/Two Piece One Piece | ||
Material Stainless Steel | ||
Single/Double Wide Single | ||
Outside Diameter 45mm | ||
Fastening Clamp Screw | ||
Width 10mm | ||
- COO (Country of Origin):
- US
Ruland Shaft Collar One-piece Clamp Screw
The Ruland one-piece shaft collar has an innovative thin line design that enables it to be used in confined spaces. The dimensions of the shaft collar are 20mm bore, 45mm OD and 10mm width. It is made from 303 stainless steel with a bright finish. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ 0.002in) which is critical for the alignment. It is stamped with the Ruland name and bore size for ease of identification. The collar has a clamp screw of M4x12 dimension.
Features and Benefits
• Lightweight
• Easily adjustable
• Hassel free removability
• Excellent holding power
• Service temperature ranges between -40°C and 176°C
• Easily adjustable
• Hassel free removability
• Excellent holding power
• Service temperature ranges between -40°C and 176°C
Applications
• Component alignment
• Component mounting
• Loadbearing face
• Mechanical stop
• Component mounting
• Loadbearing face
• Mechanical stop
Certifications
• DIN 912 12.9
• REACH certification
• REACH certification
