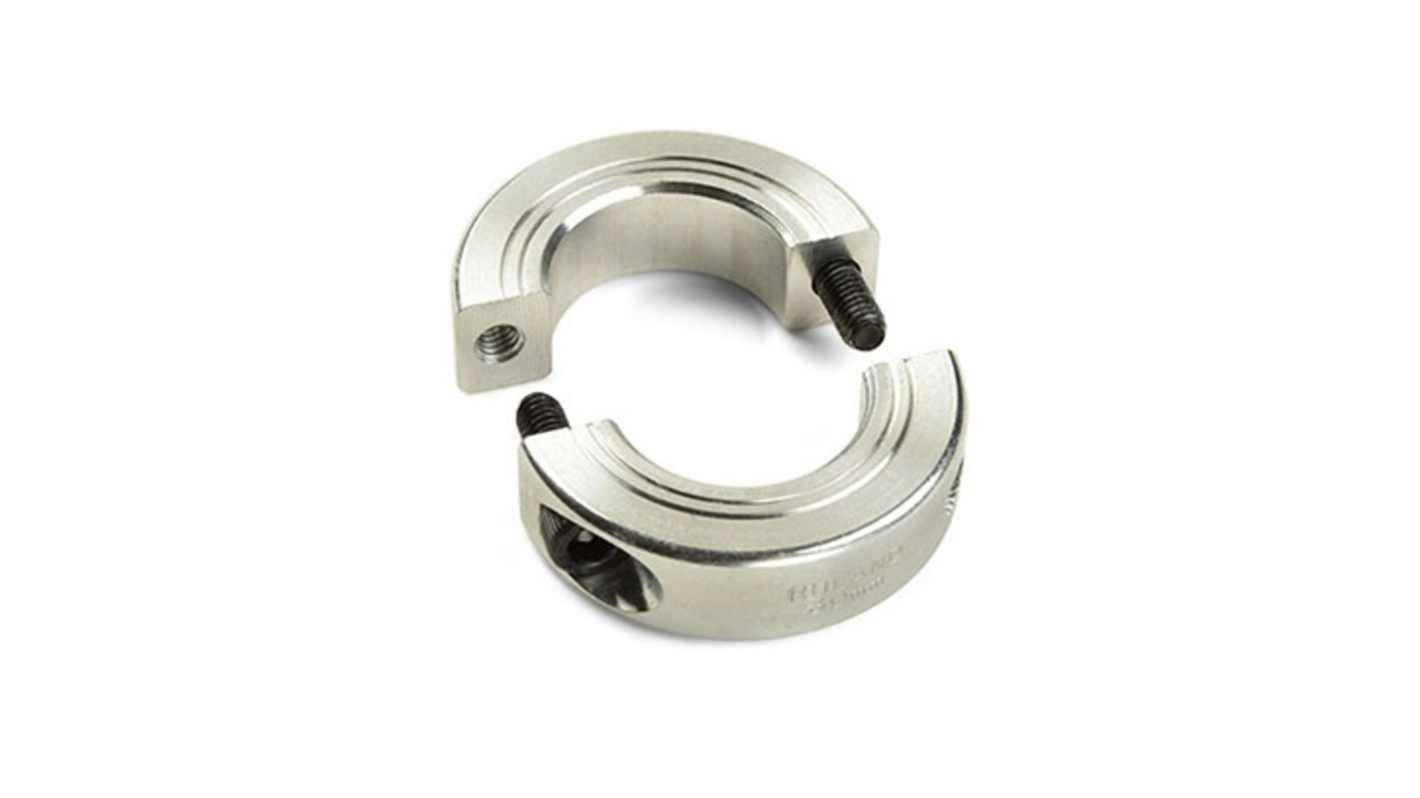

Ruland Collar, Two Piece, Clamp, OD 16 mm OD, W 9 mm, Aluminium
- RS Stock No.:
- 615-144
- Mfr. Part No.:
- MSPB-3-A
- Brand:
- Ruland
Subtotal (1 unit)*
£11.05
(exc. VAT)
£13.26
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £11.05 |
*price indicative
- RS Stock No.:
- 615-144
- Mfr. Part No.:
- MSPB-3-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Bore Size | 3 mm | |
| Product Type | Collar | |
| One/Two Piece | Two Piece | |
| Material | Aluminium | |
| Outside Diameter | 16 mm | |
| Fastening | Clamp | |
| Threaded Bore Size | 3 mm | |
| Width | 9 mm | |
| Finish | Bright, Non-Plated | |
| Series | MSPB | |
| Standards/Approvals | RoHs and Reach, DIN 91 1.9 | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Bore Size 3 mm | ||
Product Type Collar | ||
One/Two Piece Two Piece | ||
Material Aluminium | ||
Outside Diameter 16 mm | ||
Fastening Clamp | ||
Threaded Bore Size 3 mm | ||
Width 9 mm | ||
Finish Bright, Non-Plated | ||
Series MSPB | ||
Standards/Approvals RoHs and Reach, DIN 91 1.9 | ||
The Ruland Shaft collar is designed with a balanced construction and opposing screws, making it suitable for high RPM applications such as motors and gearboxes. It is built with a clamp-style design that prevents damage to the shaft, allows for easy removal, and offers indefinite adjustability. This versatile component is commonly used for guiding, spacing, stopping, mounting, and aligning other components in various mechanical systems.
Manufactured using proprietary processes for superior fit, finish, and holding power
Stamped with name and bore size for easy identification
Mated halves ensure proper fit and alignment during assembly
Forged screws exceed DIN 912 12.9 standards for maximum holding power
